Input Jack with Two Switches

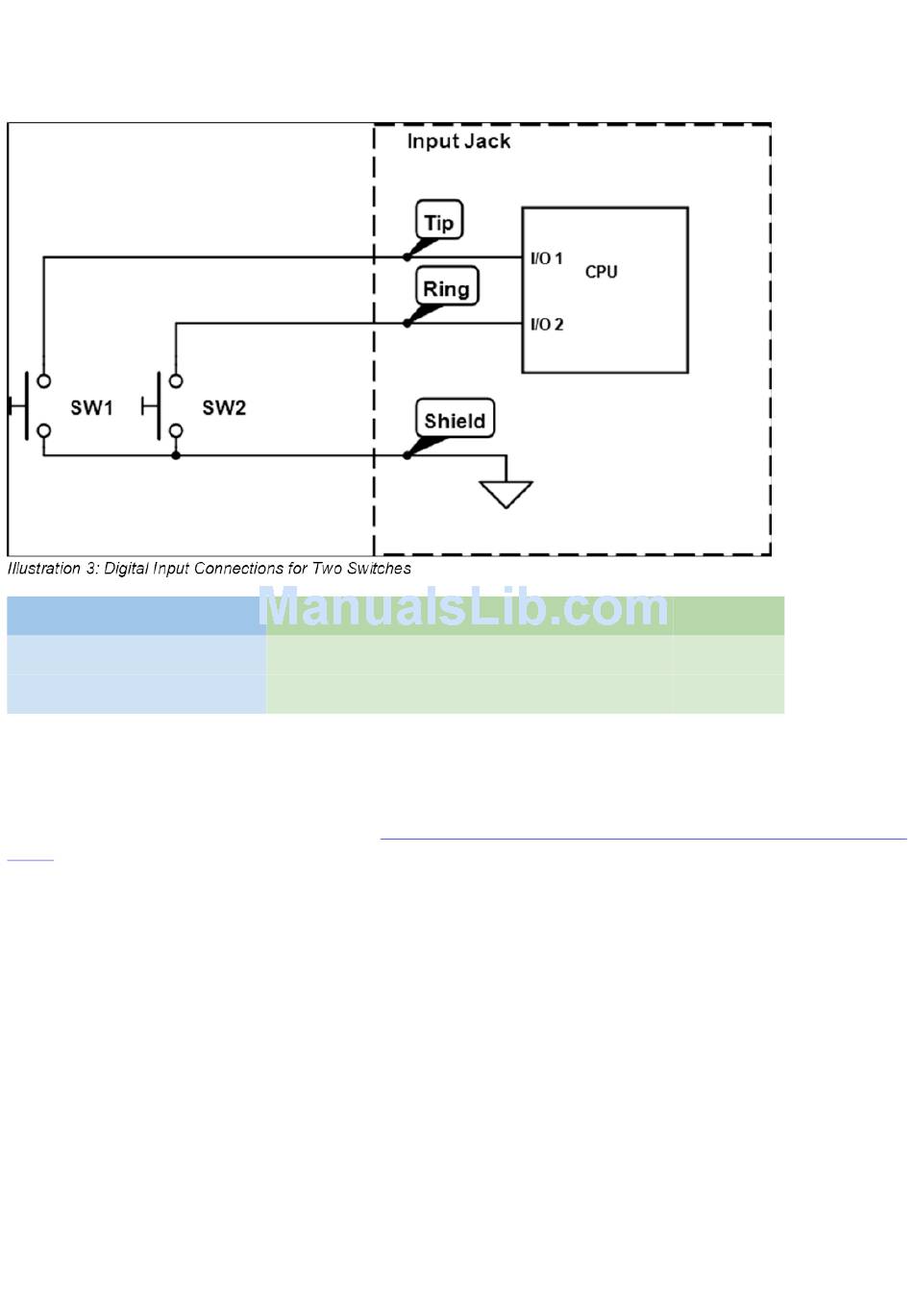

The Inputs jack on the back of the Quadstick is a 3mm stereo connector with the two input circuits (Tip & Ring) and
Shield (or Ground). Two switches may be connected using the following circuit.
Input Name
digital_in_1
digital_in_2
Table 2: External Digital Inputs 1 & 2
When using two Switches in this manner, the Quadstick can detect the switch closures independently and
simultaneously.
Most assistive switches use 3.5mm mono connectors. An adapter that splits the two circuits on the stereo connector
is required if using more than one switch. The
Cable
is a suitable adapter.
Description
Input Jack - Tip to Shield (SW1)
Input Jack - Ring to Shield (SW2)
Hosa YMM-261 3.5 mm TRS to Dual 3.5 mm TSF Stereo Breakout
23
Delay
instant
instant
