Quadstick User Manual page 13

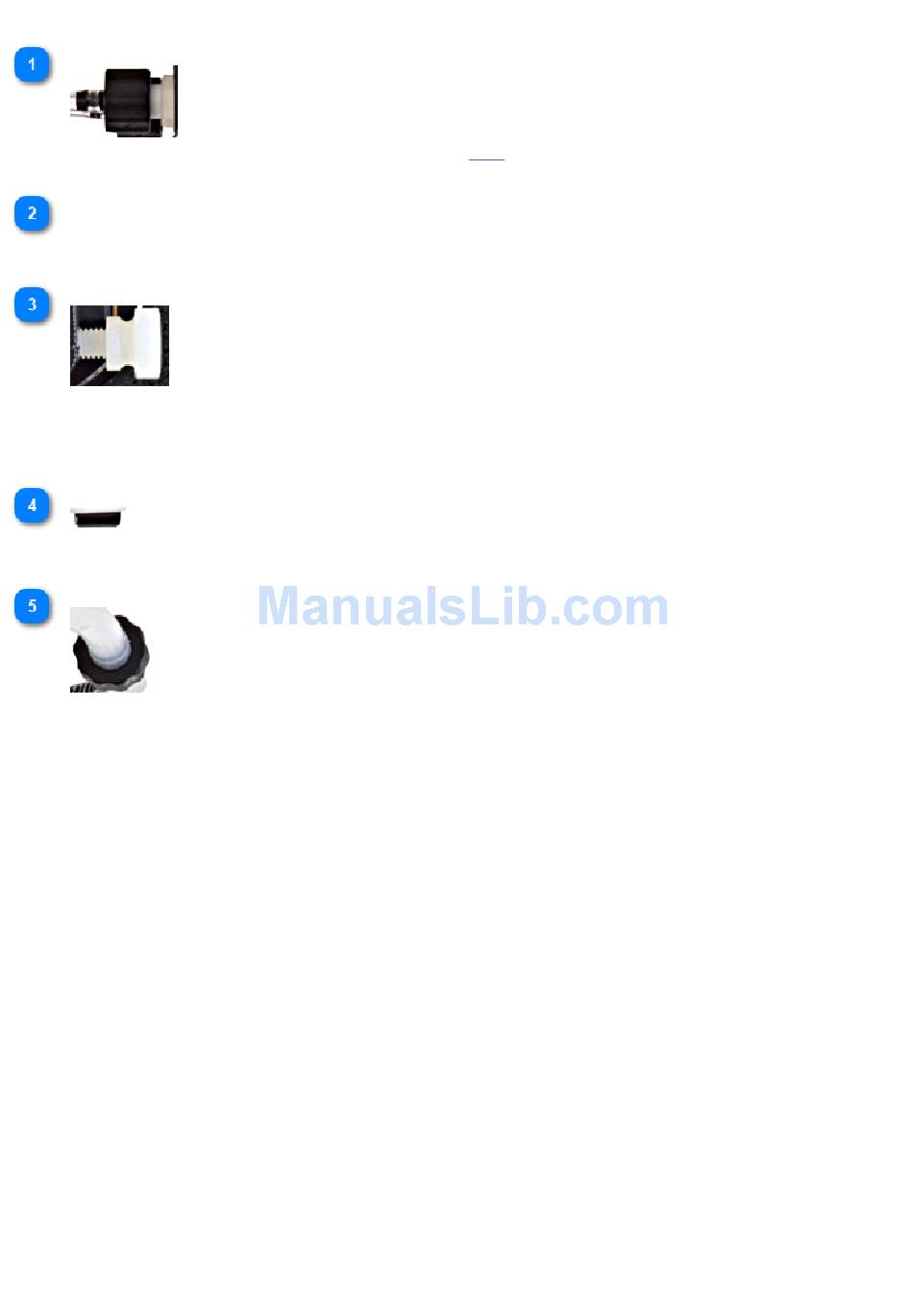

Center Mouthpiece Hole Luer Fitting
Connection for center hole tube. Compatible with
Left Mouthpiece Hole Luer Fitting
Connection for left hole tube.
Lip Sensor Holder Thumb Screw
Holds the Lip Sensor in position. Loosen to slide the sensor to the desired location. DO NOT OVER-
TIGHTEN. It only needs to be snug. It is possible to break the plastic bracket or crush the lip sensor if
this is over-tightened.
Right Mouthpiece Hole Luer Fitting
Connection for right hole tube
Side Tube Luer Fitting
Sip/Puff tube typically used to control overall operation of the Quadstick.
Luer Syringe filters for multi-user applications.
