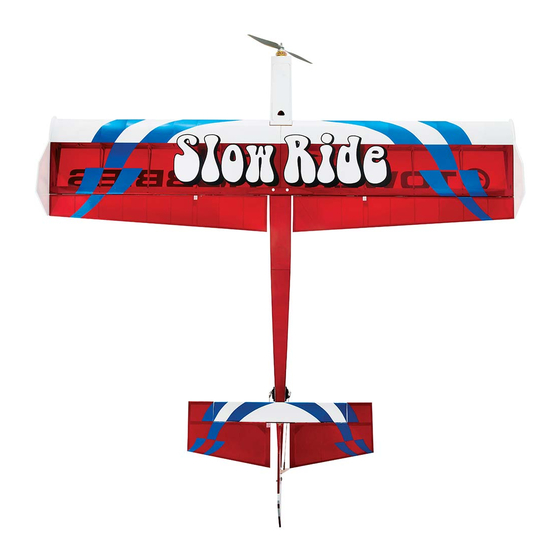

Tower Hobbies Slow Ride Instruction Manual

®
MOTOR
GP RimFire 28
(42-40-800)
60A ESC
BATTERY
3S 2200 – 4000 mAh
4S 2200 – 4000 mAh
RADIO
4+ Channel Transmitter
4 servos
NOTICE
All instructions, warranties and other collateral documents are
subject to change at the sole discretion of Horizon Hobby, LLC.
For up-to-date product literature, visit www.horizonhobby.com
and click on the support tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature
to indicate various levels of potential harm when operating this
product:
WARNING: Procedures, which if not properly followed, create
the probability of property damage, collateral damage, and
serious injury OR create a high probability of super cial injury.
CAUTION: Procedures, which if not properly followed, create
the probability of physical property damage AND a possibility
of serious injury.
NOTICE: Procedures, which if not properly followed, create a
possibility of physical property damage AND little or no
possibility of injury.
AGE RECOMMENDATION: Not for children under
14 years. This is not a toy.
READ THROUGH THIS MANUAL BEFORE STARTING CONSTRUCTION.
It contains important instructions and warnings concerning the assembly and use of this model.
WARNING: This product may use a lithium polymer (LiPo) battery. Improper handling may result in FIRE! You are responsible for following all
safety precautions as outlined in this instruction manual.
58575.1 TOWA2042 Slow Ride Manual Update.indd 1
46 – 59 oz [1304 –1672 g]
WING AREA WING AREA
948 in 2 [ 61.1 dm 2 ] 948 in 2 [ 61.1 dm 2 ]
®
INSTRUCTION
MANUAL
WEIGHT
67.5 in [1715 mm]
WING LOADING WING LOADING
7– 9 oz/ft 2 7– 9 oz/ft 2
[ 21.3 –27.5 g/dm 2 ] [ 21.3 –27.5 g/dm 2 ]
WINGSPAN
63.5 in [1613 mm]
WARNING: Read the ENTIRE instruction manual to
become familiar with the features of the product before
operating. Failure to operate the product correctly can result in
damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with
caution and common sense and requires some basic
mechanical ability. Failure to operate this Product in a safe and
responsible manner could result in injury or damage to the
product or other property. This product is not intended for use
by children without direct adult supervision. Do not use with
incompatible components or alter this product in any way
outside of the instructions provided by Horizon Hobby, LLC.
This manual contains instructions for safety, operation and
maintenance. It is essential to read and follow all the instructions
and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or serious injury.
WARNING AGAINST COUNTERFEIT PRODUCTS:
If you ever need to replace your Spektrum receiver found
in a Horizon Hobby product, always purchase from Horizon
Hobby, LLC or a Horizon Hobby authorized dealer to ensure
authentic high-quality Spektrum product. Horizon Hobby, LLC
disclaims all support and warranty with regards, but not limited to,
compatibility and performance of counterfeit products or products
claiming compatibility with DSM or Spektrum technology.
LENGTH
