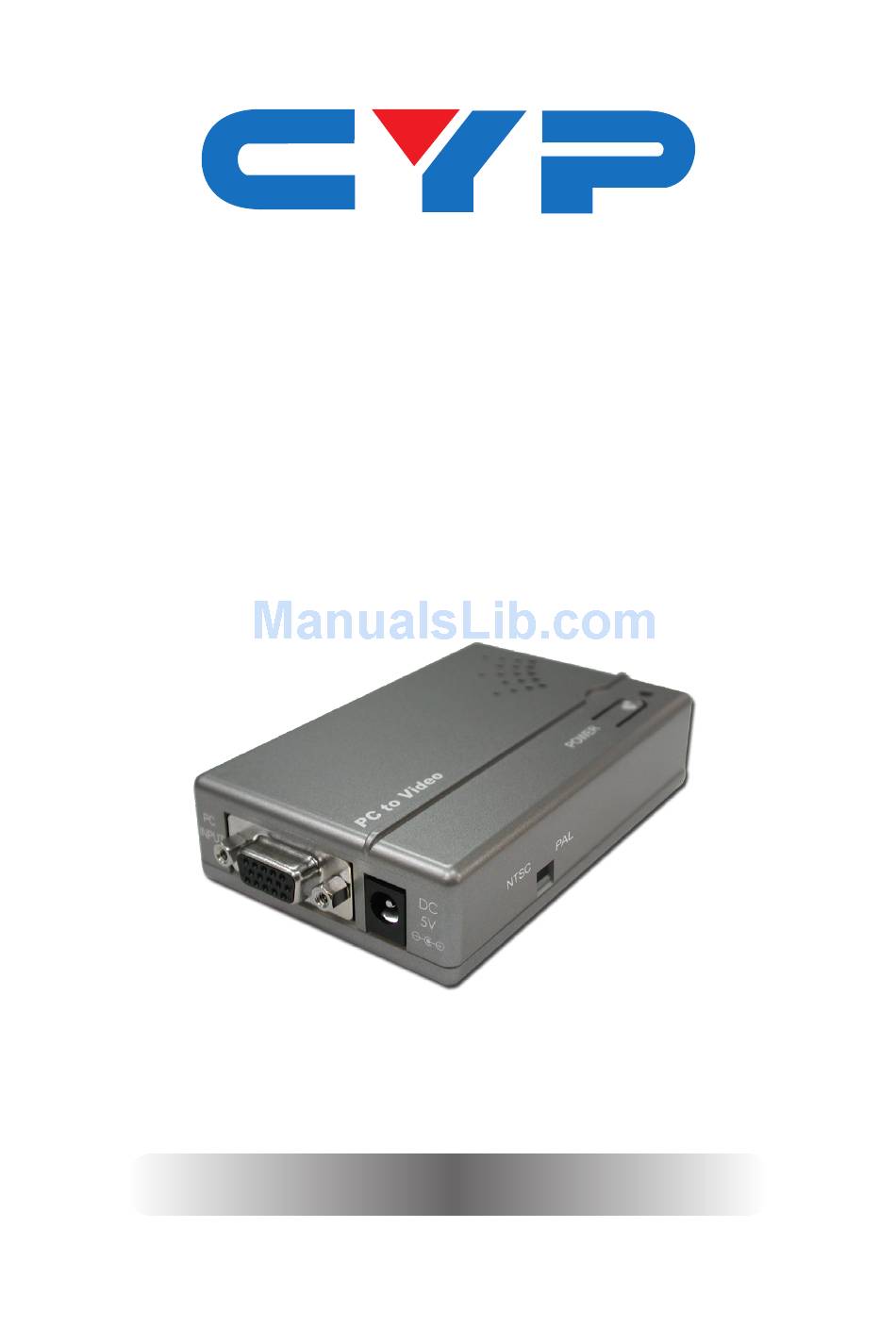

- Page 1 CPT-385AM PC to Video Scan Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 6.3 Side Panel .........3 6.4 Top Panel ..........3 7. -
Page 6: Introduction
1. INTRODUCTION The PC to Video Scan Converter is capable of converting a wide range of analog PC resolutions (from VGA to WUXGA) to interlaced NTSC or PAL video output. This unit features a frame rate conversion function as well as an Overscan/Underscan function that allows users to view a PC/Laptop source fullscreen on a Composite or S-Video monitor without cropping the image. -
Page 7: Operation Controls And Functions

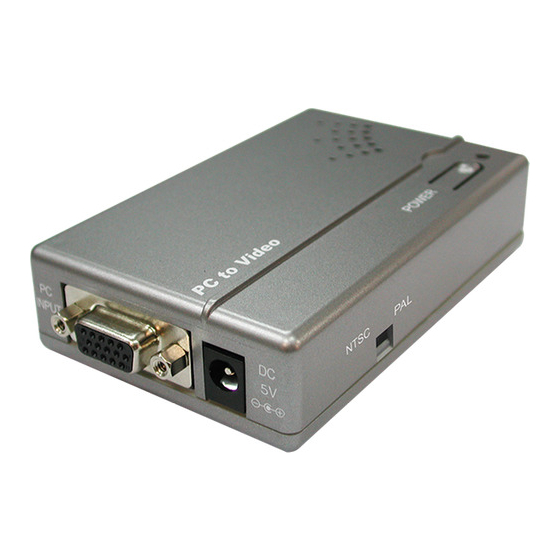

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INPUT PC INPUT: Connect to an source device such as PC or laptop with D-Sub 15-pin cable. DC 5V: Connect the 5V DC power supply to the unit and plug the adaptor into AC wall outlet. 6.2 Rear Panel S-VIDEO VIDEO... -
Page 8: Side Panel
6.3 Side Panel NTSC NTSC/PAL Switch: Switches the output signal between NTSC or PAL format. The unit will automatically adjust the output signal including the size, phase and position. During adjustment the power LED will blink. Note: The source signal must be a full screen image in order to allow the auto adjustment feature to function properly. -
Page 9: Connection And Installation
7. CONNECTION AND INSTALLATION PC or Laptop VGA Input (D-sub 15-pin ) Power Supply INPUT S-VIDEO VIDEO UNDER SCAN OUTPUT OVER SCAN S-Video Composite Video Output Output HDTV... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifcations Input Port 1×VGA (D-sub 15-pin) Output Ports 1×Composite Video, 1×S-Video ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) Dimensions 64 mm(W)×113 mm(D)×26 mm(H) Weight 90 g Chassis Material... -
Page 11: Acronyms
RESOLUTION INPUT (PC) 1280×720@25, 30, 50*, 60, 60(CVT) 1280×768 = WXGA@60(RB), 60* 1280×800 = WXGA@60(RB), 60, 75 1280×960 = @60, 85 1280×1024 = SXGA@60, 75, 85, 60(CVT)* 1366×768 = WXGA@60(RB), 60 1440×900 = WXGA@60(RB), 60, 75 1600×1200 = UXGA@60 1680×1050 = WSXGA+@60(RB), 60 1920×1080@24, 25, 30, 50, 60 1920×1200 = WUXGA@60(RB) OUTPUT (CV/SV) - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPT385AM...
