MPC-2000 Series

Quick Installation Guide

First Edition, July 2015

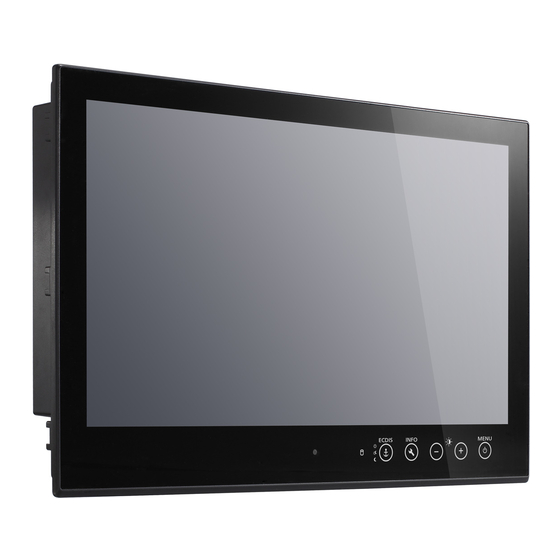

Overview
The MPC-2000 series panel computer features advanced Intel
processors—3rd generation Ivy Bridge Core or Celeron—matched
to 4 GB of system memory, delivering a reliable, high-performance
marine computing platform of wide versatility. With its
RS-232/422/485 serial, NMEA 0183, and Gigabit Ethernet LAN
ports, the MPC-2000 series supports a wide variety of serial- and
marine-specific interfaces with high-speed network
communications and native network redundancy.
The MPC-2000 series comes with a range of standard display
enhancements useful in industrial environments (including 0 to
100% full range dimming, 178°/178° wide viewing angles,
optional optical bonding, and/or a multi-touch screen), as well as
Moxa's innovative SavvyTouch display controls.
The following lists the models in the MPC-2000 series:
• MPC-2260X/MPC-2267X: 26-inch panel computer
• MPC-2240X/MPC-2240Z/MPC-2247X: 24-inch panel computer
• MPC-2190X/MPC-2190Z/MPC-2197X: 19-inch panel computer
Package Checklist
Before installing the MPC-2000 series, verify that the package
contains the following items:
• 1 MPC-2000 series panel computer
• 2 keys for the locking, removable mass storage trays
• 1 terminal block for DC power input
• 4 5-pin Euroblock terminals for NMEA 0183 v2 interfaces
• Documentation and software DVD
• Quick installation guide (printed)
• Warranty card
NOTE: Please notify your sales representative if any of the above
items are missing or damaged.

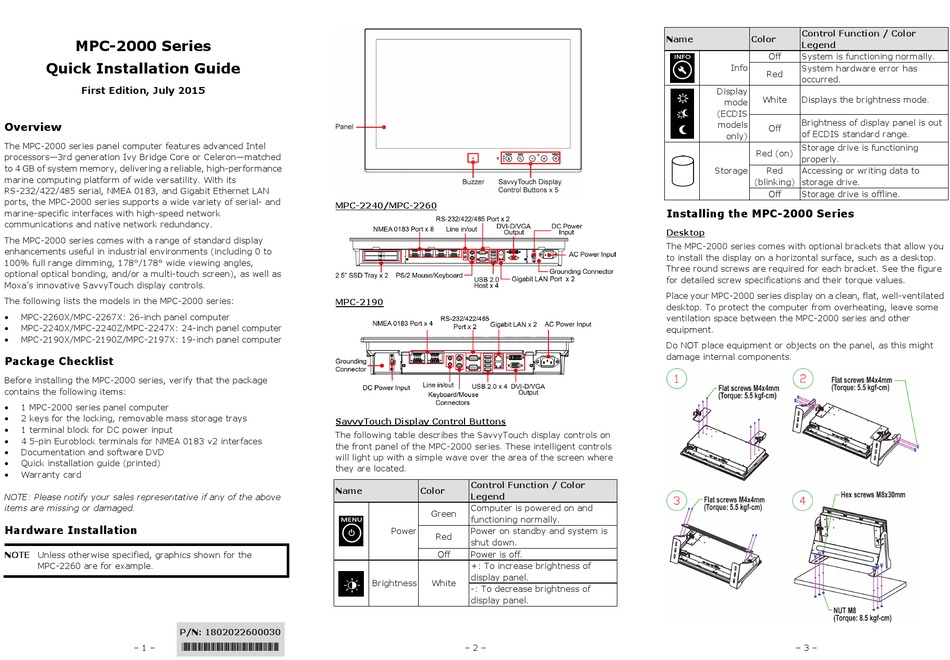

Hardware Installation

NOTE Unless otherwise specified, graphics shown for the
MPC-2260 are for example.
P/N: 1802022600030
– 1 –
*1802022600030*
MPC-2240/MPC-2260
MPC-2190
SavvyTouch Display Control Buttons
The following table describes the SavvyTouch display controls on
the front panel of the MPC-2000 series. These intelligent controls
will light up with a simple wave over the area of the screen where
they are located.
Control Function / Color
Name Color
Legend
Computer is powered on and
Green
functioning normally.
Power Power on standby and system is
Red
shut down.
Off Power is off.
+: To increase brightness of
display panel.
Brightness White
-: To decrease brightness of
display panel.
– 2 –
Control Function / Color
Name Color
Legend
Off System is functioning normally.
Info
System hardware error has
Red
occurred.
Display
White Displays the brightness mode.
mode
(ECDIS
Brightness of display panel is out
models
Off
of ECDIS standard range.
only)
Storage drive is functioning
Red (on)
properly.
Storage Red Accessing or writing data to
(blinking) storage drive.
Off Storage drive is offline.
Installing the MPC-2000 Series
Desktop
The MPC-2000 series comes with optional brackets that allow you
to install the display on a horizontal surface, such as a desktop.
Three round screws are required for each bracket. See the figure
for detailed screw specifications and their torque values.
Place your MPC-2000 series display on a clean, flat, well-ventilated
desktop. To protect the computer from overheating, leave some
ventilation space between the MPC-2000 series and other
equipment.
Do NOT place equipment or objects on the panel, as this might
damage internal components.
