5.

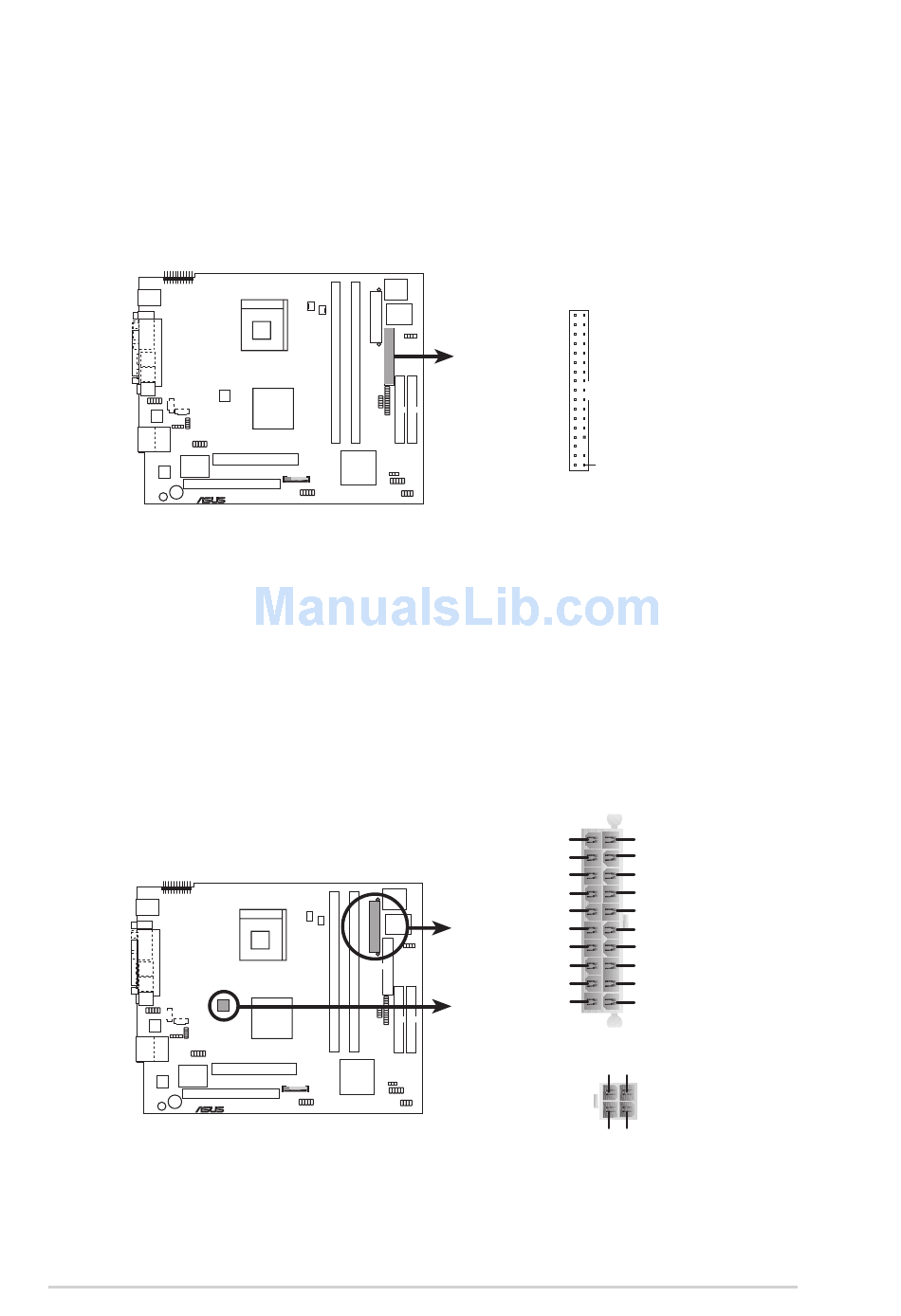

Floppy disk drive connector (34-1 pin FLOPPY1)
This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to the
floppy disk drive. (Pin 5 is removed to prevent incorrect insertion
when using ribbon cables with pin 5 plug).
®
P4R8T Floppy Disk Drive Connector
6.
ATX power connectors (20-pin ATXPWR, 4-pin ATX12V)
These connectors are for the 20-pin and 4-pin power plugs from the
power supply unit. The plugs from the power supply unit are designed
to fit these connectors in only one orientation. Find the proper
orientation and push down firmly until the connectors completely fit.
See page 39 for details on the power supply unit.
®
P4R8T ATX Power Connector
54
P4R8T
ATXPWR
P4R8T
FLOPPY
PIN 1
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
+12.0Volts
+5V Standby
Power Good
Ground
+5.0 Volts
Ground
+5.0 Volts
Ground
+3.3 Volts
+3.3 Volts
ATX12V
+12V DC COM
+12V DC COM
Chapter 4: Motherboard info
+5.0 Volts
+5.0 Volts
-5.0 Volts
Ground
Ground
Ground
Power Supply On
Ground
-12.0Volts
+3.3Volts
