11. System panel connector (8-1 pin PANEL)
This connector accommodates several system front panel functions.
® P4R8T

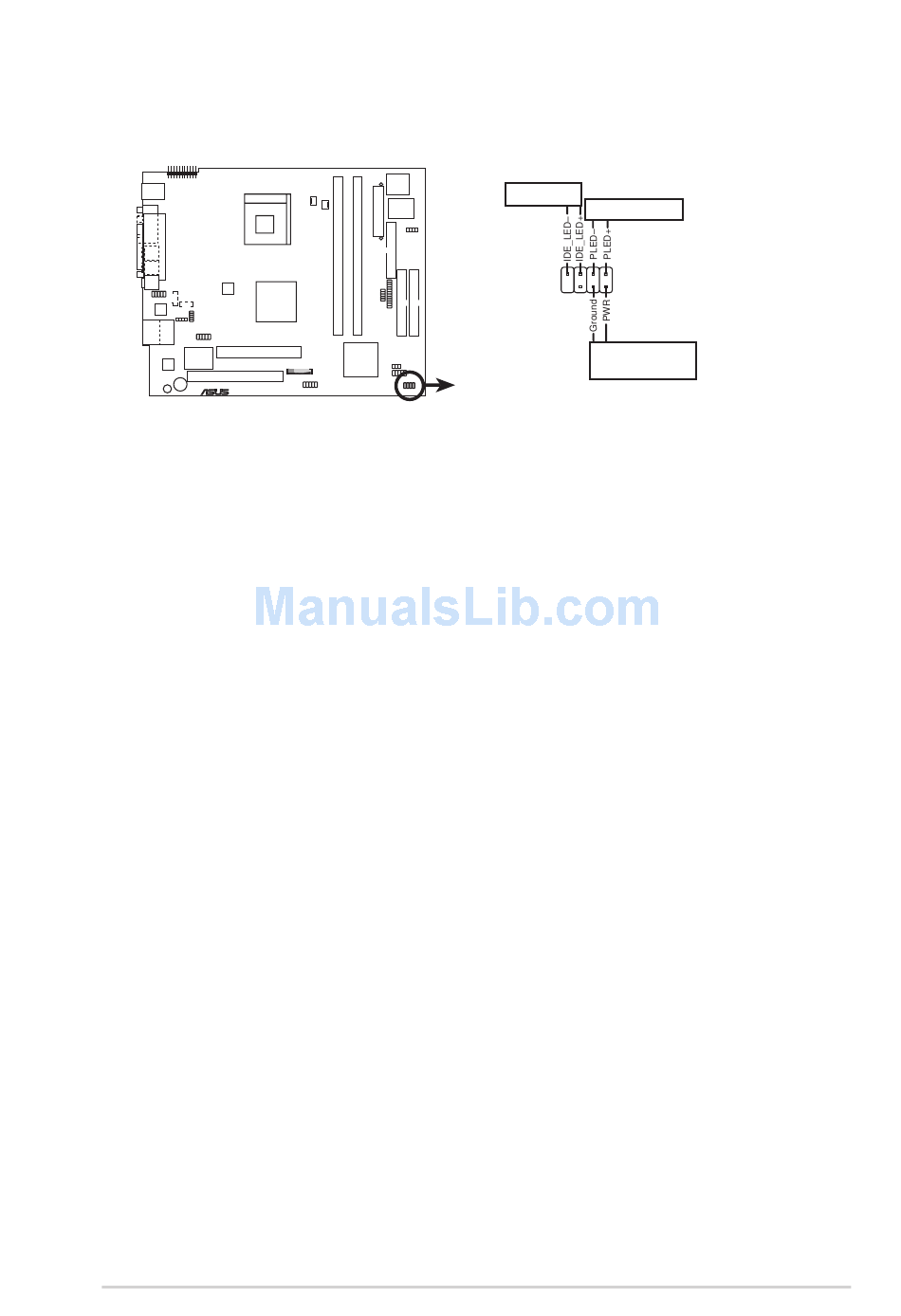

P4R8T System Panel Connector
• Power LED Lead
This 2-pin connector connects to the system power LED. The LED
lights up when you turn on the system power, and blinks when the
system is in sleep mode.
• ATX Power Switch
This connector connects a switch that controls the system power.
Pressing the power switch turns the system between ON and SLEEP,
or ON and SOFT OFF, depending on the BIOS or OS settings.
Pressing the power switch while in the ON mode for more than 4
seconds turns the system OFF.
• IDE LED Lead
This 2-pin connector supplies power to the hard disk drive activity
LED. The read or write activities of any device connected to the
primary or secondary IDE connector cause this LED to light up.
ASUS Terminator 2 barebone system
IDE_LED
Power LED
PANEL
ATX Power
Switch*
Requires an ATX power supply.
*
57
