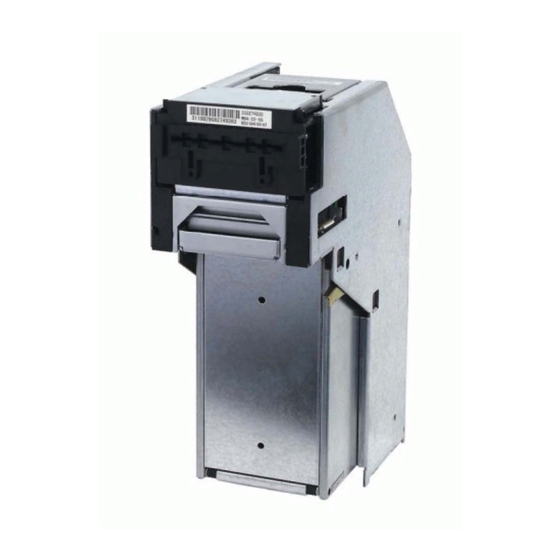

JCM GLOBAL WBA Series Maintenance Manual
  1. Manuals
  2. Brands
  3. JCM GLOBAL Manuals
  4. Bank Note Validator
  5. WBA Series
  6. Maintenance manual

JCM GLOBAL WBA Series Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Maintenance Manual
WBA Series
Version: 2.0
05.2007

Advertisement

Table of Contents
loading

Related Manuals for JCM GLOBAL WBA Series

Summary of Contents for JCM GLOBAL WBA Series

  • Page 1 Maintenance Manual WBA Series Version: 2.0 05.2007...

  • Page 2: Table Of Contents

    Maintenance Manual WBA Series Contents PARTS (BILL ACCEPTOR)........................3 GENERAL INFORMATION ON MAINTENANCE AND CLEANING ..........4 DETERGENTS ............................. 5 ............................5 OU SHOULD USE ! ........................5 HAT YOU SHOULD NOT USE MAINTENANCE- AND CLEANING INTERVALS ................5 JCM C ....................

  • Page 3: Parts (Bill Acceptor)

    Maintenance Manual WBA Series 1. Parts (Bill Acceptor) DIP Switch Fig. 01 QA-IF006 R02E Wartungsanleitung WBA_newLogo.doc Page 3 of 16 Japan Cash Machine Germany GmbH...

  • Page 4: General Information On Maintenance And Cleaning

    Maintenance Manual WBA Series 2. General information on maintenance and cleaning Bill validators, or acceptors, scan currency using optical and magnetic sensors. Upon validation, different bill properties are compared to internal reference values. If the item is accepted, it is retained by the machine and gets placed into the cash box. If the acceptor detects the bill as counterfeit, the piece of currency is rejected by the validator.

  • Page 5: Detergents

    Maintenance Manual WBA Series 3. Detergents You should use A soft, non-fluffy cloth ( eg: cotton or microfibre) Cotton buds A mild detergent (basic). The cloth/cotton buds can be dampened but make sure no water is going inside the acceptor. The driving belts and the wheels can be cleaned with Isopropanol.
  • Page 6 Maintenance Manual WBA Series Procedure: Clean thoroughly all lenses, wheels and driving belts (note yellow marked areas) and check the head unit for potential damages. Open the head unit by pulling at both locks at once. Fig. 02 Example for contaminations Fig.

  • Page 7: Cleaning With The Jcm Cleaning Card

    Maintenance Manual WBA Series Cleaning with the JCM Cleaning card The JCM cleaning card is a preventative tool, that is designed to reduce contaminations and paper abrasion. Optimum functionality is ensured between the regular cleaning intervals. Package of cleaning card Cleaning Card Fig.

  • Page 8: Thorough Cleaning And Checking Is Recommended Every Eight To Twelve Months

    Maintenance Manual WBA Series Thorough cleaning and checking is recommended every eight to twelve months. The intervals are shorter under unfavourable conditions. Procedure: 1. Remove the head as well as the carrying unit (fig 06 and 07) Fig. 06 Fig. 07 2.
  • Page 9 Maintenance Manual WBA Series 3. Cleaning Make sure the interior of the head and carrying unit is thoroughly cleaned. (siehe Fig. 08 und 09) Dust and dirt need to be removed, too! Fig. 09 Testing and cleaning! The belts need to be cleaned the whole way through.

  • Page 10: Adjustment

    Maintenance Manual WBA Series The acceptance rate can become worse as time goes by. This may not only result in because of the acceptor’s direct environment, but also because the parts are getting older. If the acceptance rate is still low after cleaning the acceptor, and no mechanical problems are obvious, the sensors may need to be callibrated.(fig 5.).

  • Page 11: Quick Adjustment

    Maintenance Manual WBA Series Quick Adjustment This procedure is useful for the application on site. It is not as exact as the PC supported adjustment, but can be carried out easily and without any additional materials. Procedure: turn off the electricity turn on (DIP Switch) No.

  • Page 12: Pc Supported Adjustment

    Maintenance Manual WBA Series PC supported adjustment This procedure is more complex than the quick adjustment, but it does provide more reliable results, as all sensors are calibrated. When possible you should use this method! You need the following accessories for the PC supported adjustment: MIB232 Black Reference Paper (KS-0…...
  • Page 13 Maintenance Manual WBA Series 5. turn off position 8 of the dipswitch. 6. start the JCM Adjustment Software Adj20.exe und click on „Start“. 7. follow the instructions of the software Beispiel: Nach der Initialisierung werden Sie aufgefordert das weiße Referenzpapier einzulegen.
  • Page 14 Maintenance Manual WBA Series 8. Using the MAG tool When the first part of the adjustment is done, the the magnetic sensors need to be callibrated. In order to do this, please use the JCM-G MAG Tool (fig 13). After switching on the MAG tool, insert the green board, as far as the label.„WBA 1x/2x“, into the head unit.

  • Page 15: Accessories

    Maintenance Manual WBA Series 6. Accessories Bezeichnung Artikel- Bemerkung for the PC Supported Adjustment MIB-232 Test adapter, incl. PC cable G00176 Adapter Cable for MIB-232 Test adapter G00154 Connecting cable MIB232 WBA-1x/2x MAG Tool MG-03 with Power Supply G00179 Needed for PC aided adjustment...

  • Page 16: What You Should Do When The Acceptor Is Malfunctioning

    Maintenance Manual WBA Series 8. What you should do when the acceptor is malfunctioning. 1. Remove the bills from the cash box and check wether the acceptor is blocked one way or another. Check for any damages. 2. Remove the head unit and open. Check for contaminations, blockages and damages.
