INSTALLATION & USER INSTRUCTIONS
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
Questions or problems with your appliance?
Don't take it back to the store
01202 588601
just give us a call on
lines open between 9am and 5pm, Monday to Friday
The products covered by this booklet are protected under patent GB2356698B
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Please note : Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not per-
mitted to copy or adapt any of the content without the
prior written permission of Focal Point Fires plc.
HIGH EFFICIENCY GAS FIRE
MODELS COVERED BY THESE INSTRUCTIONS
BLENHEIM HE GAS FIRE
HORIZON HE GAS FIRE
LULWORTH HE GAS FIRE
* AVAILABLE IN MANUAL OR FINGERSLIDE

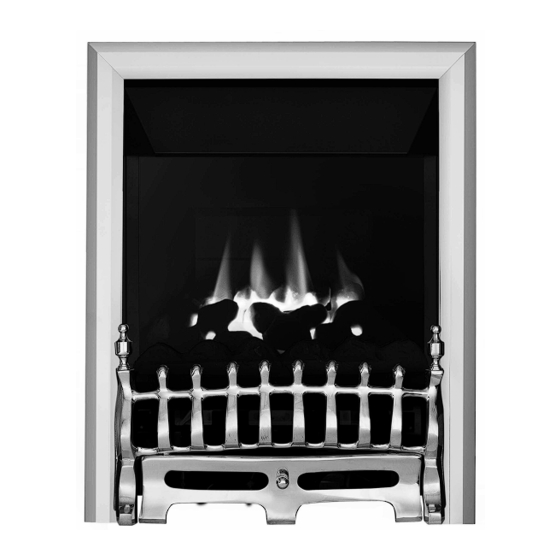

MODEL SHOWN: BLENHEIM HE GAS FIRE
we're here to help
All instructions must be handed to the user
for safekeeping.
1
GB IE
BS7977-1 : 2009
KM579168
Revision H - 01/14
© 2014 Focal Point Fires plc
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Focal Point BLENHEIM HE
Summary of Contents for Focal Point BLENHEIM HE
- Page 1 All instructions must be handed to the user including copyright in the text, images and layout of this for safekeeping. booklet is owned by Focal Point Fires plc. You are not per- mitted to copy or adapt any of the content without the Revision H - 01/14 prior written permission of Focal Point Fires plc.
-
Page 2: Table Of Contents
• As with any gas fire, a fire guard complying with BS 8423 must be used in presence of pets, children, and the eld- erly or infirm. • Consult ALL instructions before installation and use of this appliance. • This appliance is free from any asbestos material. © 2014 Focal Point Fires plc... -
Page 3: Appliance Data
Opening DEPTHS include any plaster or infill panels which form part of the installation. Any existing under grate draught device must be sealed off. WARNING This fire is designed to get very hot! The fireplace opening wall or back panel must be non-combustible and rated to withstand 150 © 2014 Focal Point Fires plc. -
Page 4: Debris Collection Space
CLAY/CEMENT LINES OR BLOCK FLUE WHICH IS NEW, UNUSED, OR PREVIOUSLY ONLY USED WITH A GAS FIRE X Dimension = 20mm UNLINED FLUE OR CHIMNEY WHICH HAS BEEN PREVIOUSLY USED FOR A SOLID FUEL OR OIL BURNING APPLIANCE X Dimension = 60mm © 2014 Focal Point Fires plc... -
Page 5: Ventilation
Deflector baffle/burner heatshield (shown in fig.11) Smoke match tube Set of manufacturers instructions Wall Plugs Slide control models only : Slide control position marking sticker Slide control models only : Slide control knob and M4 Nyloc nut © 2014 Focal Point Fires plc... -
Page 6: Preparing The Appliance
The open end of the gas supply pipe should be Figure 6 Manual control Slide control temporarily sealed to prevent ingress of dust and Not to scale dirt during installation. © 2014 Focal Point Fires plc... -
Page 7: Cable Fixing
The spark gap between the spark electrode and the thermocouple should be 3.5 - 4.5mm to pro- Spark gap Figure 12 duce a good spark.There should be no need to adjust this. 9.2 FUEL BED LAYOUT For fuel bed layout instructions, refer to section 10.0 of the user instructions. © 2014 Focal Point Fires plc... -
Page 8: Final Assembly
HIGH or LOW positions, press the control knob in, and return to the nine o’clock position and release. To turn the fire OFF, keep the knob pressed in, return to the off position and release. © 2014 Focal Point Fires plc... -
Page 9: Operating The Appliance - Slide Control
MUST be of a type sup- plied for the purpose by the appliance manufacturer. If the fire is not spilling, then further guidance should be sought, using the Troubleshooting section as a guide. © 2014 Focal Point Fires plc... -
Page 10: Testing For Spillage
15. Refit the ceramic components, glass panel, hood, decorative frame and cast firefront as detailed in sections 9.2 and 9.3. 16. Light the fire and carry out a spillage test. 17. Check setting pressure and safe operation of the appliance. For specific servicing instructions, see the relevant sections. © 2014 Focal Point Fires plc... -
Page 11: Troubleshooting Guide
• Slide control models only - replace battery. See section 11.0 of the user instructions. • Check the spark gap (see section 9.1). • Faulty piezo unit, replace. • Debris shorting out electrode, clean. • Spark shorting to metalwork under tray, check routing of HT lead under burner. © 2014 Focal Point Fires plc... -
Page 12: Troubleshooting Guide (Continued)
• Spillage occurring. Carry out Spillage test and rectify any problems. • Combustible materials used in incorrect positions. • Firebox grommet seal missing, rectify. • Other airborne contaminants such as dust, tobacco smoke, paint vapours. © 2014 Focal Point Fires plc... - Page 13 500mm to the side of the radiant heat source. As with all heating appliances, any decorations, soft furnish- ings, and wall coverings (i.e. flock, blown vinyl and embossed paper) positioned too close to the appliance may discolour or scorch. © 2014 Focal Point Fires plc...
- Page 14 HIGH or LOW positions, press the control knob in, and return to the nine o’clock position and release. To turn the fire OFF, keep the knob pressed in, return to the off position and release. © 2014 Focal Point Fires plc...
- Page 15 2. Place the moulded coal piece marked on the underside ‘A’ onto the matrix as shown in figure 5. Figure 6 3. Place the moulded coal piece marked on the underside ‘B’ onto the matrix as shown in figure 6. © 2014 Focal Point Fires plc...
- Page 16 Gas Valve (slide control) F550208 Ceramic rear pad F730023 ODS Oxypilot 9082 F730080 Injector (size 65) TRAY100C Burner assembly (manual control) F730083 Injector (size 66) F730085 Gas Valve (manual control) TRAY154 Burner assembly (slide control) © 2014 Focal Point Fires plc...
- Page 17 Date installed : Fire serial No. : Name & contact details of installer : Supplied by : 15.0 SERVICE HISTORY Date of service Serviced by (name): GAS SAFE No. : Contact details of Engineer © 2014 Focal Point Fires plc...
- Page 18 3G Service Department to the address below. Alternatively, you can email or fax.Please note that this does not affect your statutory rights. Focal Point Fires plc, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT. Alternatively email: 3g@focalpointfires.co.uk or fax. 01202 499326.
