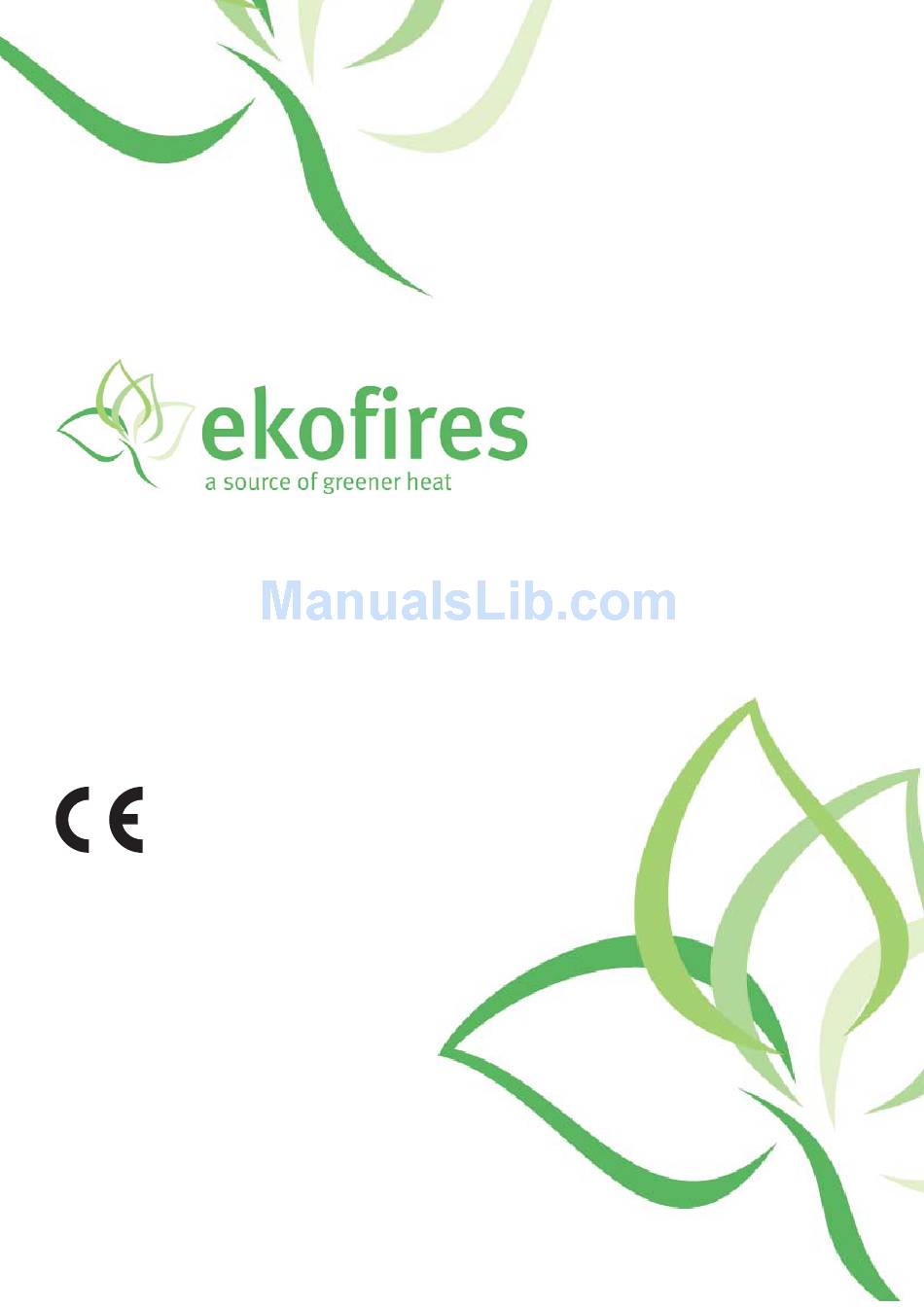

installation and user instructions
All instructions must be handed to user for safekeeping
Revision A - 06/09
Country(s) of destination - GB/IE
eko 3030
eko 3035
eko 3040
eko 3050
eko 3060
eko 3065
fuel effect gas fire
manual - remote control - slide control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eko 3030 and is the answer not in the manual?

Questions and answers

Related Manuals for Focal Point eko 3030

Summary of Contents for Focal Point eko 3030

  • Page 1 All instructions must be handed to user for safekeeping Revision A - 06/09 Country(s) of destination - GB/IE eko 3030 eko 3035 eko 3040 eko 3050 eko 3060 eko 3065 fuel effect gas fire manual - remote control - slide control...
  • Page 2 Eko 3040 Eko 3030 Eko 3050 Eko 3060...

  • Page 3: Installation Instructions

    [1] GB - Gas Safe registered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use) Regulations 1998. © 2009 Focal Point Fires plc.

  • Page 4: Table Of Contents

    [1] GB - Gas Safe registered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use) Regulations 1998. © 2009 Focal Point Fires plc.

  • Page 5: Appliance Data

    GC1, as regulations allow. Eko 3030, Eko 3035, Eko 3040, Eko 3050 models only : This appliance has been tested for use in a pre- cast block flue complying with BS 1289. In accordance with BS 1289 part 1, pre-cast flues built with direct- ly plastered faces (front or rear) are not correctly installed as to ensure proper operation with any type of gas fire.

  • Page 6: Site Requirements

    See diagram below. Eko 3030, Eko 3035, Eko 3040, Eko 3050 models only: The opening WIDTH and HEIGHT dimensions should be between 375mm and 450mm wide, and 540mm (see note) to 575mm high. Note: The spigot outlet of the fire is 560mm high, but should fit into the gather at the top of the fireplace as the appliance is fitted.

  • Page 7: Debris Collection Space

    Eko 3030, Eko 3035 - Eko 3050 models : 375mm min opening width Eko 3060, Eko 3065 models : 395mm min opening width The firebox, base of the flue box, and hearth below may be drilled to allow plugs and screws to secure installation.

  • Page 8: Unpacking The Appliance

    Decorative cast frame with integral control cover (Eko 3050 models only) Decorative extruded frame with detachable control cover (Eko 3040 models only) One piece decorative trim (Eko 3030, Eko 3035 & Eko 3060, Eko 3065 models only) Cast firefront (Eko 3030, Eko 3035 & Eko 3060, Eko 3065 models only)

  • Page 9: Preparing The Opening

    PREPARING THE APPLIANCE Eko 3030, Eko 3035, Eko 3040, Eko 3050 models (continued) SPIGOT RESTRICTOR (All models): If installing the fire into a Class 1 or good Class 2 flue, simply bend up (stitch bend join) the spigot restrictor into position in the flue outlet of the fire.

  • Page 10: Fitting The Firebox

    FITTING THE FIREBOX Eko 3030, Eko 3035, Eko 3040, Eko 3050 models only : To fit the firebox, firstly check the fire goes fully back into the opening. If the fire will not fit straight in, tilt the unit backwards and insert the spigot first to lead in to the gather at the top of the fireplace.

  • Page 11: Fitting The Burner Unit

    Eko 3040 frame FIREFRONT Eko 3030, Eko 3035 & Eko 3060, Eko 3065 models ; The appliance is supplied with a one piece decorative frame that is attached to the front of the firebox with the magnets provided. Position the firefront in front of the burner.

  • Page 12: Operating The Fire (Remote Control)

    You must use a T piece and measure the supply pressure with the fire on High - the dynamic pressure). Refit and tighten the screw into the pressure test point when the test is complete. © 2009 Focal Point Fires plc.

  • Page 13: Flue Spillage Monitoring System

    1. Lay out the dust sheet and tools. 2. Carefully remove the ceramic components. 3. Remove the cast front fret (Eko 3030, Eko 3035 models), or remove the combined frame and firefront (Eko 3040 and Eko 3050 models). ©...

  • Page 14: Dismantling The Burner Tray

    Inspect the fireplace opening for debris and if excessive rectify the flue before proceeding further. Check the seal around the fireframe and if necessary replace. Refitting of the firebox is as described in the fitting section of these instructions. © 2009 Focal Point Fires plc.

  • Page 15: Troubleshooting Guide

    Newness smell from brand new appliance. Spillage occurring. Carry out spillage test and rectify any problems Low temperature sealants or combustible materials used in incorrect positions. Air leak under base of firebox, rectify Firebox grommet seal missing, rectify. © 2009 Focal Point Fires plc.

  • Page 16: Gb - Gas Safe Tm Registered Operatives (Northern Ireland Only- Corgi Registered Operatives) Are The Only Class Of Person Considered As Competent By The Hse Under The Gas Safety (Installation And Use) Regulations

    [1] GB - Gas Safe registered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use) Regulations 1998. © 2009 Focal Point Fires plc.

  • Page 17: Clearances To Combustibles

    Again, do not to place on top of the burner rails. When the front coal is in position bend up the three metal tags at the front of the tray to retain (inset). © 2009 Focal Point Fires plc.
  • Page 18 1 and 2. The front strip and fuel effect matrix used for pebble effect versions are of the same design as coal effect ver- sions, but have a different surface finish. © 2009 Focal Point Fires plc.
  • Page 19 Due to the light colour of the pebbles, some discolouration/sooting is to be expected during normal use. FUEL BED LAYOUT - Eko 3030, Eko 3035 models (Log effect option) 1. Refer back to section 5.0 - Fuel bed layout (coal effect option) and follow steps 1 and 2.
  • Page 20 If debris from the flue or other foreign matter is found on the fire it may indicate a need for servicing. Do not use the fire until the source of the debris has been found and rectified. Air vents (where fitted) should be checked periodically to ensure they are free from obstruction. © 2009 Focal Point Fires plc.
  • Page 21 The fire can also be set to operate anywhere between HIGH and LOW by moving the control knob to an intermediate position. To turn the fire OFF, move the slide control knob upwards upwards fully to the position marked ‘O’. © 2009 Focal Point Fires plc.

  • Page 22: List Of Spares

    Gas Safety (Installation and Use) Regulations 1998. As our policy is one of continuous improvement and development , we hope therefore you will understand we must retain the right to amend details and/or specifications without prior notice. © 2009 Focal Point Fires plc.
