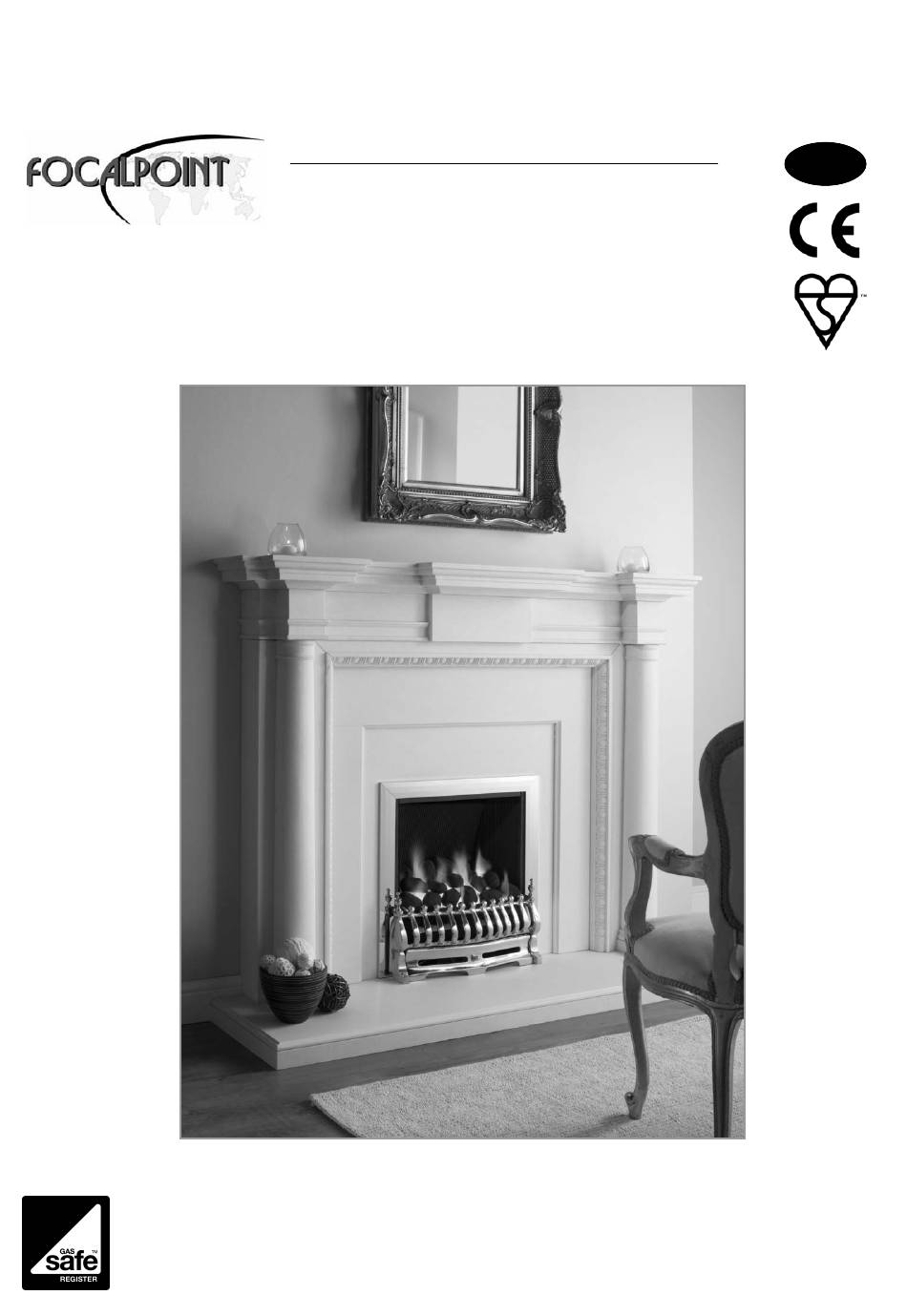

INSTALLATION & USER INSTRUCTIONS
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Please note : Except where otherwise stated, all rights, including copyright
in the text, images and layout of this booklet is owned by Focal Point Fires
plc. You are not permitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires plc.
FULL DEPTH INSET GAS FIRE
MODELS COVERED BY THESE INSTRUCTIONS

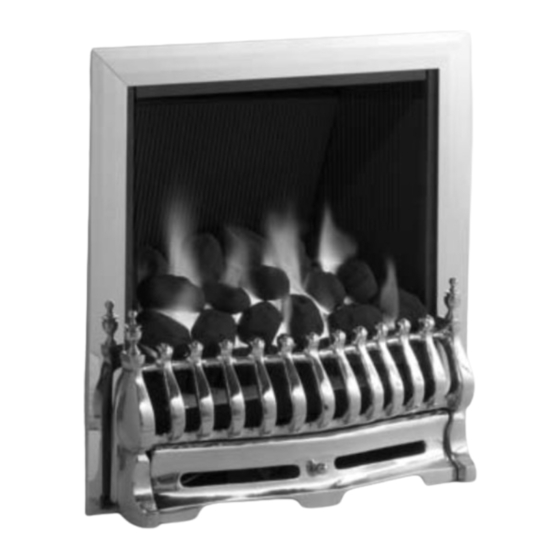

BLENHEIM 20" FULL DEPTH GAS FIRE
F500056
BLENHEIM 20"
All instructions must be handed to the user for
safekeeping.
Revision B - 02/12
GB IE
BS7977-1 : 2009
BS EN 509 : 2000
KM579168
© 2012 Focal Point Fires plc.
Advertisement
Table of Contents
Related Manuals for Focal Point F500056
Summary of Contents for Focal Point F500056
- Page 1 Please note : Except where otherwise stated, all rights, including copyright All instructions must be handed to the user for in the text, images and layout of this booklet is owned by Focal Point Fires safekeeping. plc. You are not permitted to copy or adapt any of the content without the prior written permission of Focal Point Fires plc.
-
Page 2: Table Of Contents
Where young children, pets, the elderly or infirm are concerned, a suitable fireguard should be used. • Consult ALL instructions before installation and use of this appliance. • This appliance is free from any asbestos material. • Refractories and fuel bed are constructed from ceramic fibre. © 2012 Focal Point Fires plc. -
Page 3: Appliance Data
Opening DEPTH should be 200mm or greater for a clay/cement lined flue which is new, unused, or previously used only with a gas appli- ance. DEPTH should be 240mm or greater for a flue used for solid fuel of oil burning appliances. Opening DEPTHS include any plaster or infill panels which form part of the installation. © 2012 Focal Point Fires plc. -
Page 4: Debris Collection Space
CLAY/CEMENT LINES OR BLOCK FLUE WHICH IS NEW, UNUSED, OR PREVIOUSLY ONLY USED WITH A GAS FIRE. X Dimension = 20mm UNLINED FLUE OR CHIMNEY WHICH HAS BEEN PREVIOUSLY USED FOR A SOLID FUEL OR OIL BURNING APPLIANCE X Dimension = 60mm © 2012 Focal Point Fires plc. -
Page 5: Ventilation
Ceramic panel retaining clips Cable fixing kit; 2 cables, 2 tensioners, 2 cable clamps, 4 eyebolts Sealing grommet Lengths of adhesive sealing strip Self tapping screw pack; 4 No8 x 5/16 Set of manufacturers instructions Wall Plugs © 2012 Focal Point Fires plc. - Page 6 SEALING STRIPS : Apply the self adhesive sealing strips to the back of the fireframe as shown in figure 6 to give a continuous seal. © 2012 Focal Point Fires plc.
-
Page 7: Preparing The Opening
Not to scale © 2012 Focal Point Fires plc. -
Page 8: Gas Connection
Turn on and test the gas supply up to the fire for any leaks, in accordance with current edition of BS6891. When the appliance is first used, protective oils coating the firebox may burn off. It is advisable to ventilate the room during this period for at least one hour. © 2012 Focal Point Fires plc. -
Page 9: Spark Gap
Any spare parts fitted MUST be of a type supplied for the purpose by the appliance manufacturer. If the fire is not spilling, then further guidance should be sought, using the Troubleshooting section as a guide. © 2012 Focal Point Fires plc. -
Page 10: Testing For Spillage
15. Check the purpose provided ventilation is un-obstructed. 16. Light the fire and test for spillage. 17. Check setting pressure and safe operation of the appliance. For specific servicing instructions, see the relevant sections. © 2012 Focal Point Fires plc. -
Page 11: Cleaning The Ceramics
Modifications are dangerous and can have a serious unseen effect on safety. NEVER MODIFY OR BEND THE THERMOCOUPLE TO MAKE THE PILOT STAY ALIGHT. Fire does not spark at pilot • HT lead detached, refit. © 2012 Focal Point Fires plc. - Page 12 • Spillage occurring. Carry out Spillage test and rectify any problems. • Combustible materials used in incorrect positions. • Firebox grommet seal missing, rectify. • Other airborne contaminants such as dust, tobacco smoke, paint vapours. © 2012 Focal Point Fires plc.
- Page 13 For Republic of Ireland, ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force. WARNING : Ventilation openings (where fitted) must never be blocked or restricted in any way. © 2012 Focal Point Fires plc.
- Page 14 Check that all of the holes in the burner top plate are unobscured. Figure 3 2. Place the matrix into position as shown in figure 3. Slide it back to the rearmost position and centralise. © 2012 Focal Point Fires plc.
- Page 15 Never throw rubbish or other matter onto the fuel bed. Due to the light colour of the pebbles, some discolouration/sooting is to be expected during normal use. © 2012 Focal Point Fires plc.
- Page 16 Contact details of Engineer As our policy is one of continuous improvement and development , we hope therefore you will understand we must retain the right to amend details and/or specifications without prior notice. © 2012 Focal Point Fires plc.
