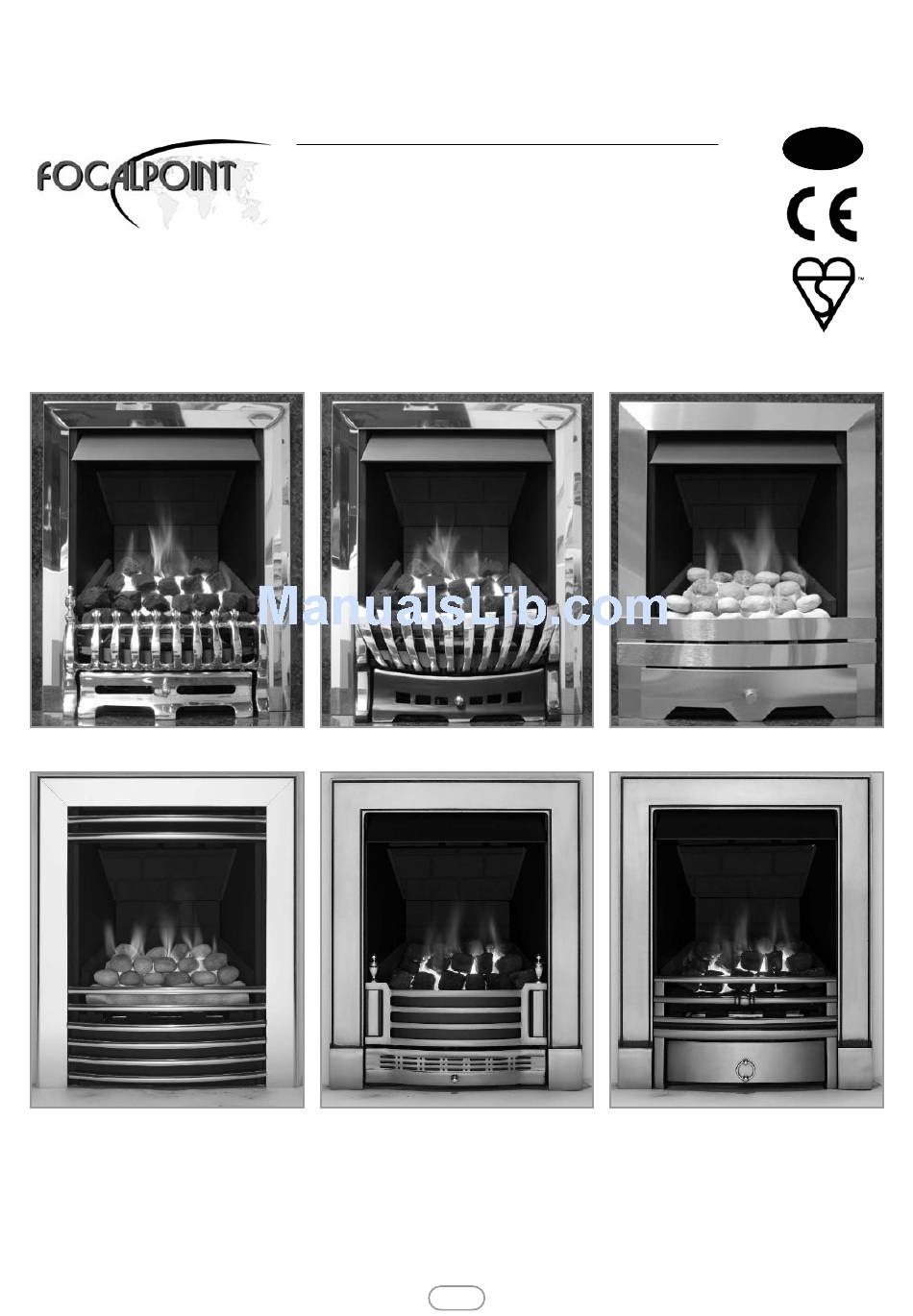

INSTALLATION & USER INSTRUCTIONS

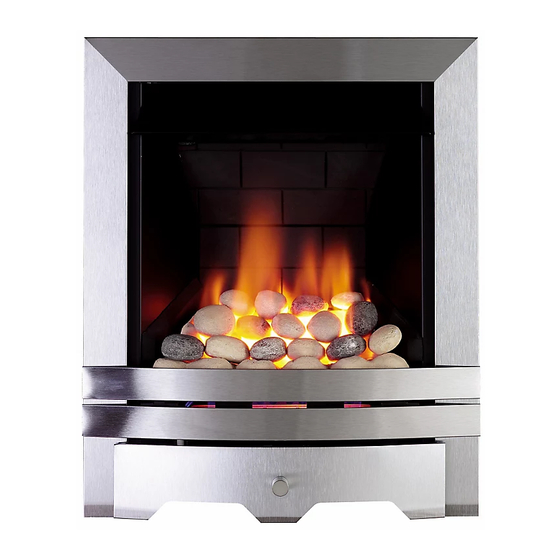

SLIMLINE/MULTIFLUE INSET RADIANT GAS FIRE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
NOTE : VOGUE , BI- FL AME AND EXCEL SIO R MO DELS M AY BE SUPPL IED WITH DIFFERENT FIRE FRONTS TO THOS E S HOW N
Please note : Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not per-
mitted to copy or adapt any of the content without the
prior written permission of Focal Point Fires plc.
MODELS COVERED BY THESE INSTRUCTIONS
BLENHEIM MULTIFLUE
ELEGANCE MULTIFLUE
LULWORTH MULTIFLUE
VORLAN
EXCELSIOR SLIMLINE
EXCELSIOR MULTIFLUE
VOGUE
AURA SLIMLINE
AURA MULTIFLUE
FINSBURY SLIMLINE
FINSBURY MULTIFLUE
SOHO SLIMLINE
SOHO MULTIFLUE
BI-FLAME SLIMLINE
BLENHEIM
AURA
ELEGANCE
FINSBURY
All instructions must be handed to the user for
1
GB IE
F500259
F500352
F500260
F500353
F500024
F500354
F500264
F500355
F500263
F500356
F500179
F500357
BS7977-1 : 2009
F500175
BS EN 509 : 2000
F500156
KM579168
LULWORTH / VORLAN
safekeeping.
Revision B - 10/11
© 2011 Focal Point Fires plc.
SOHO
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Focal Point blenhein multiflue
Summary of Contents for Focal Point blenhein multiflue
- Page 1 Please note : Except where otherwise stated, all rights, including copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc. You are not per- All instructions must be handed to the user for safekeeping.
-
Page 2: Table Of Contents
• Remote control models : These appliances features a battery-operated control system, and under normal usage will need a new battery approximately every twelve months. Refer to the appropriate section of these instructions for details of how to change the battery. © 2011 Focal Point Fires plc. -
Page 3: Appliance Data
DEPTH should be 240mm or greater for a flue used for solid fuel of oil burning appliances. Opening DEPTHS include any plaster or infill panels which form part of the installation. © 2011 Focal Point Fires plc. -
Page 4: Debris Collection Space
CLAY/CEMENT LINES OR BLOCK FLUE WHICH IS NEW, UNUSED, OR PREVIOUSLY ONLY USED WITH A GAS FIRE. X Dimension = 20mm UNLINED FLUE OR CHIMNEY WHICH HAS BEEN PREVIOUSLY USED FOR A SOLID FUEL OR OIL BURNING APPLIANCE X Dimension = 60mm © 2011 Focal Point Fires plc. -
Page 5: Ventilation
Cable fixing kit; 2 cables, 2 tensioners, 2 cable clamps, 4 fixing eyes, 4 wall plugs Sealing grommet Lengths of adhesive sealing strip Self tapping screw pack; 4 No8 x 5/16 Spigot restrictor (if not pre-fitted to firebox) Deflector baffle Set of manufacturers instructions © 2011 Focal Point Fires plc. -
Page 6: Preparing The Appliance
The ends of the sleeving in which the gas pipe is run should be sealed. The ends of the 8mm sup- ply pipe should be temporarily sealed to prevent the ingress of debris during fixing. © 2011 Focal Point Fires plc. -
Page 7: Gas Supply Routing
The front should fit well and the control devices beneath should not be visible to the eye. Realign the baffle slightly if necessary to achieve the correct fit. Figure 10 © 2011 Focal Point Fires plc. -
Page 8: Gas Connection
Continue pressing down the knob while turning further to the left to activate the piezo spark, continue to hold the knob down for a further 10 seconds after the pilot has been lit. If the pilot does not light repeat the previous steps. © 2011 Focal Point Fires plc. -
Page 9: Spark Gap
Any spare parts fitted MUST be of a type supplied for the purpose by the appliance manufacturer. If the fire is not spilling, then further guidance should be sought, using the Troubleshooting section as a guide. © 2011 Focal Point Fires plc. -
Page 10: Testing For Spillage
15. Check any purpose provided ventilation is un-obstructed. 16. Light the fire and test for spillage. 17. Check the operating pressure (see section 16.4) and safe operation of the appliance. For specific servicing instructions, see the relevant sections. © 2011 Focal Point Fires plc. -
Page 11: Cleaning The Ceramics
Appliance - Ensure appliance is off and cool. Remove cover from top of receiver box. The cover is protected by reflective foil, and located towards the right hand side, underneath the burner unit. Insert 4 x ‘AA’ (1.5 volt) batteries - Replace cover. © 2011 Focal Point Fires plc. -
Page 12: Troubleshooting Guide
• Spillage occurring. Carry out Spillage test and rectify any problems. • Combustible materials used in incorrect positions. • Firebox grommet seal missing, rectify. • Other airborne contaminants such as dust, tobacco smoke, paint vapours. © 2011 Focal Point Fires plc. - Page 13 For Republic of Ireland, ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force. WARNING : Ventilation openings (where fitted) must never be blocked or restricted in any way. © 2011 Focal Point Fires plc.
-
Page 14: Operating The Fire - Manual Control
Switch the appliance OFF, call in your installer to check any ventilation and carry out any remedial work required. DO NOT allow the appliance to be used until the installation is passed as safe. © 2011 Focal Point Fires plc. -
Page 15: Fuel Bed Layout - Ripped Coal Effect
Place the large brick panel against the rear of the firebox. Figure 10 Place the ceramic combustion matrix onto the burner and the ceramic side cheeks onto the matrix. © 2011 Focal Point Fires plc. -
Page 16: Fuel Bed Layout - Rounded Coal Effect
Figure 17 Place the middle row of four coals onto the supports in the matrix, over the top of the holes. Ensure the coals are not turned sideways, such that they actually enter the holes. © 2011 Focal Point Fires plc. -
Page 17: Servicing
Injector - stereo 78 - manual models F730062 Injector - stereo 77 - remote models F730047 Burner assembly - complete - manual control TRAYSLIM Burner assembly - complete - remote control TRAY 019 Remote handset and receiver kit F730003/5 © 2011 Focal Point Fires plc. -
Page 18: Installation Details
As our policy is one of continuous improvement and development , we hope therefore you will understand we must retain the right to amend details and/or specifications without prior notice. Note : Gas Safe registered operatives are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use) Regulations 1998. © 2011 Focal Point Fires plc.
