INSTALLATION & USER INSTRUCTIONS
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
NOTE: VOGUE, BI-FLAME AND EXCELSIOR MODELS MAY BE SUPPLIED WITH DIFFERENT FIREFRONTS TO THOSE SHOWN
Questions or problems with your appliance?
Don't take it back to the store
01202 588601
just give us a call on
lines open between 9am and 5pm, Monday to Friday
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Please note : Except where otherwise stated, all rights, including
copyright in the text, images and layout of this booklet is owned by
Focal Point Fires plc. You are not permitted to copy or adapt any of
the content without the prior written permission of Focal Point Fires
plc.
MULTIFLUE/INSET GAS FIRE
MODELS COVERED BY THESE INSTRUCTIONS
BLENHEIM MULTIFLUE
LULWORTH MULTIFLUE
EXCELSIOR MULTIFLUE
VOGUE
*
AURA MULTIFLUE
FINSBURY MULTIFLUE
SOHO MULTIFLUE
BI-FLAME
*
* AVAILABLE WITH MANUAL CONTROL ONLY
† AVAILABLE WITH MANUAL OR SLIDE CONTROL
** AVAILABLE WITH MANUAL, SLIDE CONTROL OR REMOTE CONTROL

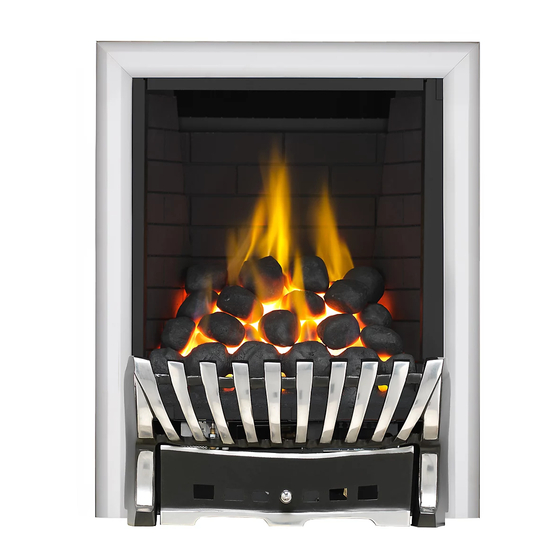

BLENHEIM
AURA
we're here to help
**
**
*
*
†
†
ELEGANCE
FINSBURY
All instructions must be handed to the user for
1
BS EN 509 : 2000
LULWORTH
safekeeping.
Revision C - 01/13
© 2013 Focal Point Fires plc.
GB IE
BS 7977-1 : 2009
KM579168
SOHO
