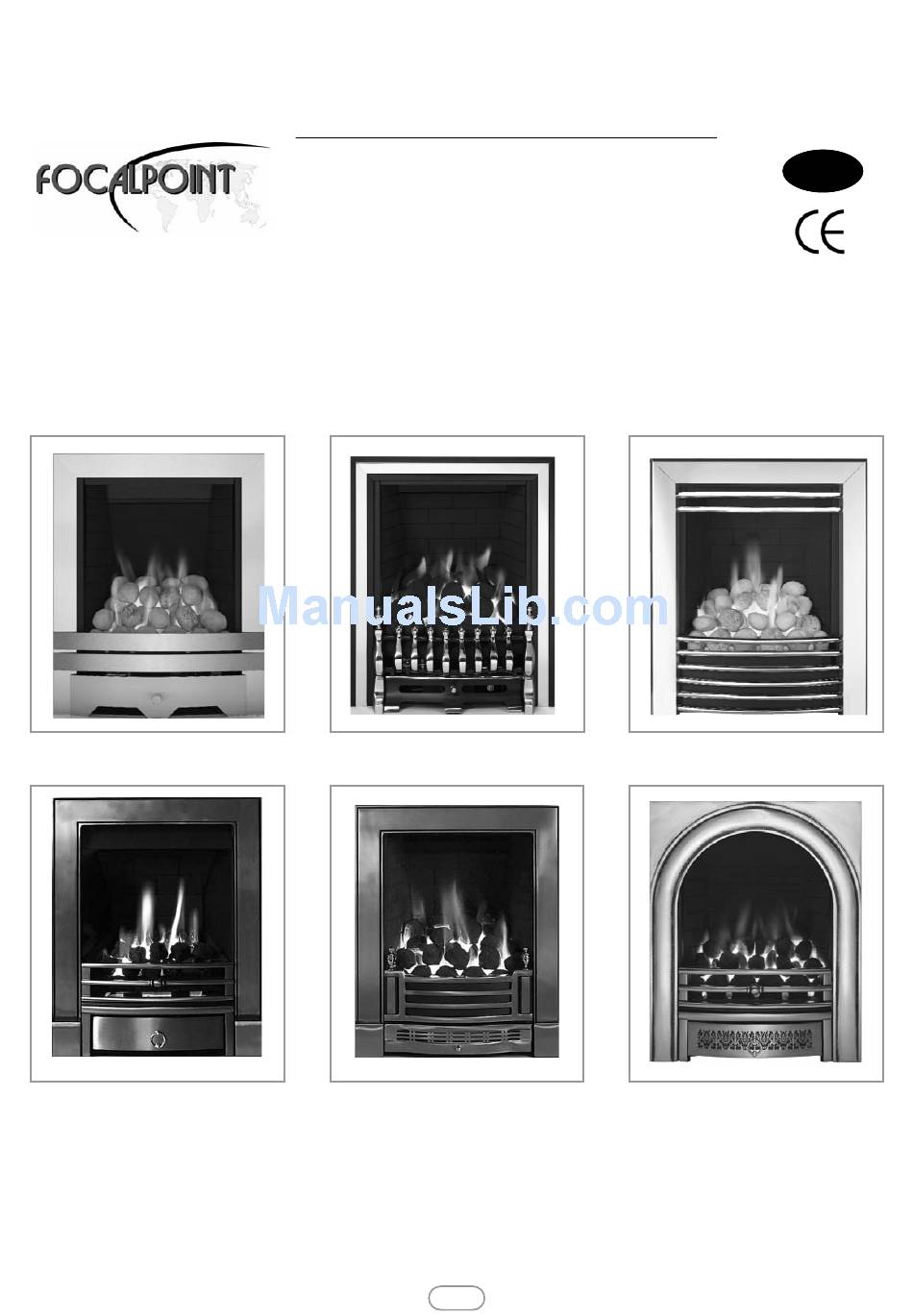

INSTALLATION & USER INSTRUCTIONS
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
Please note : Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not per-
mitted to copy or adapt any of the content without the
prior written permission of Focal Point Fires plc.
FULL DEPTH INSET GAS FIRE
MODELS COVERED BY THESE INSTRUCTIONS

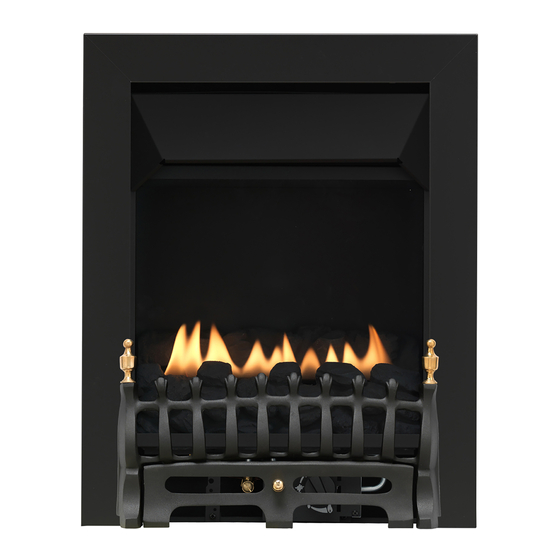

ALVOR FULL DEPTH RADIANT
AURA FULL DEPTH RADIANT
BLENHEIM FULL DEPTH RADIANT
LULWORTH FULL DEPTH RADIANT
SOHO FULL DEPTH RADIANT
FINSBURY FULL DEPTH RADIANT
ARCH FULL DEPTH RADIANT
* AVAILABLE WITH MANUAL CONTROL ONLY
† AVAILABLE WITH MANUAL OR SLIDE CONTROL
LULWORTH
SOHO
*
*
*
*
†
†
†
ALVOR
FINSBURY
All instructions must be handed to the user for
1
F500328
GB IE
F500055
F500261
F500305
F500160
F500159
F500161
safekeeping.
Revision A - 12/10
© 2010 Focal Point Fires plc.
AURA
ARCH
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Focal Point ALVOR
Summary of Contents for Focal Point ALVOR
- Page 1 Please note : Except where otherwise stated, all rights, including copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc. You are not per- All instructions must be handed to the user for safekeeping.
-
Page 2: Table Of Contents
• Slide control models : These appliances features a battery-operated control system, and under normal usage will need a new bat- terry approximately every twelve months. Burner/spark generator requirements - 1 x ‘PP3’ type (9 volt) Refer to the appropriate section of these instructions for details of how to change the batterry. © 2010 Focal Point Fires plc. -
Page 3: Appliance Data
DEPTH should be 240mm or greater for a flue used for solid fuel of oil burning appliances. Opening DEPTHS include any plaster or infill panels which form part of the installation. © 2010 Focal Point Fires plc. -
Page 4: Debris Collection Space
CLAY/CEMENT LINES OR BLOCK FLUE WHICH IS NEW, UNUSED, OR PREVIOUSLY ONLY USED WITH A GAS FIRE. X Dimension = 20mm UNLINED FLUE OR CHIMNEY WHICH HAS BEEN PREVIOUSLY USED FOR A SOLID FUEL OR OIL BURNING APPLIANCE X Dimension = 60mm © 2010 Focal Point Fires plc. -
Page 5: Ventilation
Firebox and burner tray assembly Decorative cast frame and ashpan (Soho, Finsbury and Arch models) Decorative extruded frame with detachable control cover (Aura models) One piece decorative trim (Alvor models) Three piece decorative trim (Blenheim models) Cast firefront (Alvor and Blenheim models) -
Page 6: Preparing The Appliance
SEALING STRIPS : Apply the self adhesive sealing strips to the back of the fireframe as shown in figure 7 to give a continuous seal. © 2010 Focal Point Fires plc. -
Page 7: Preparing The Opening
Not to scale © 2010 Focal Point Fires plc. -
Page 8: Gas Connection
All models : Remove all protective film and packaging material before fitting. Alvor and Lulworth models : The appliance is supplied with a one piece decorative frame that is attached to the front of the firebox with the magnets provided. Position the firefront in front of the burner. -
Page 9: Operating The Fire (Manual Control)
In the event that the burner pressure is not in accordance with the figures stated in the data sec- tion of these instructions, the appliance must not be commissioned, and the manufacturer should be contacted for guidance. © 2010 Focal Point Fires plc. -
Page 10: Flue Spillage Monitoring System
8. Check the fireplace opening for rubble accumulation and remove. If debris is excessive, initiate remedial work on the flue. 9. Check the flue with smoke pellet for correct operation. 10. Refit firebox using new seals where necessary. 11. Strip off the burner pipes and clean thoroughly. © 2010 Focal Point Fires plc. - Page 11 Check the seal around the fireframe and if neces- sary replace. Refitting of the firebox is as described in the fitting section of these instructions. © 2010 Focal Point Fires plc.
-
Page 12: Troubleshooting Guide
• Spillage occurring. Carry out Spillage test and rectify any problems. • Combustible materials used in incorrect positions. • Firebox grommet seal missing, rectify. • Other airborne contaminants such as dust, tobacco smoke, paint vapours. © 2010 Focal Point Fires plc. - Page 13 For Republic of Ireland, ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force. WARNING : Ventilation openings (where fitted) must never be blocked or restricted in any way. © 2010 Focal Point Fires plc.
-
Page 14: Flue Spillage Monitoring System
When the front coal is in position bend up the three metal tabs at the front of the tray to retain as shown in figure 6. Figure 6 © 2010 Focal Point Fires plc. -
Page 15: Fuel Bed Layout - Pebble Effect
1 and 2. The front strip and fuel effect matrix used for pebble effect versions are of the same design as coal effect versions, but have a different surface finish. Position them as shown in figure 11. © 2010 Focal Point Fires plc. -
Page 16: Servicing
Before carrying out any of the following operations, ensure that the fire is OFF and completely cold. FIREFRONT - Any dust accumulating in the firefront may be removed using a vacuum cleaner or dry cloth. Heavy stains may be © 2010 Focal Point Fires plc. -
Page 17: Replacing The Batteries
Injector - stereo 81 - manual and remote control models F730046 Injector - stereo 82 - slide control models F730077 HT lead/piezo assembly F750081 Burner assembly - complete - manual control TRAY015 Burner assembly - complete - slide control TRAY087 © 2010 Focal Point Fires plc. -
Page 18: Installation Details
As our policy is one of continuous improvement and development , we hope therefore you will understand we must retain the right to amend details and/or specifications without prior notice. Note : Gas Safe registered operatives are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use) Regulations 1998. © 2010 Focal Point Fires plc.
