Introducing the E-DIO24-OEM

The E-DIO24-OEM is an Ethernet based digital I/O data acquisition device that is compatible with TCP (IPv4
only) and UDP network protocols. The E-DIO24-OEM provides the following features:

24 individually-configurable digital I/O bits

±24 mA drive capability

Software-paced transfer rates up to 5 kHz (typical throughput on a local network)

One 32-bit event counter (shared with a DIO pin)

Remote network access, configuration, and alarm

Header connectors for field wiring connections

Functionally equivalent to USB-DIO24 Series and USB-1024 Series hardware.
The E-DIO24-OEM requires a 5 VDC external power supply (available separately).

Ethernet interface

The E-DIO24-OEM has one built-in 10/100 BASE-T auto-negotiation, high-speed communication port. You
can remotely access and configure your E-DIO24-OEM from anywhere on the network. Only one computer can
control the E-DIO24-OEM at one time. The networking protocols are TCP and UDP.
A unique media access control (MAC) address is assigned to each device at the factory. You configure the
Ethernet connection settings through software. A network name in the format
xxxxxx
the device, where

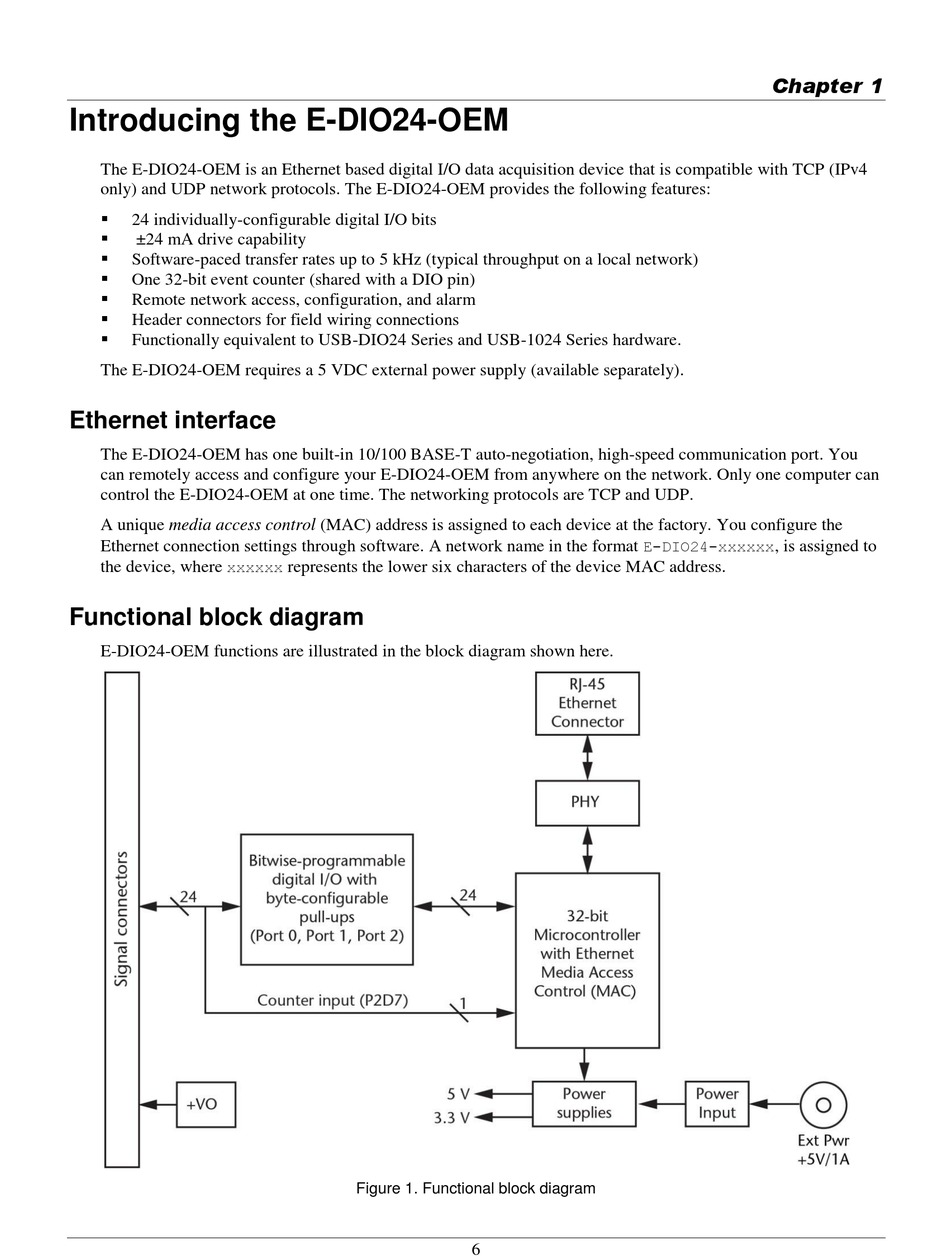

Functional block diagram

E-DIO24-OEM functions are illustrated in the block diagram shown here.
represents the lower six characters of the device MAC address.
Figure 1. Functional block diagram
E-DIO24-xxxxxx
6
Chapter 1
, is assigned to
