Functional Details

Components

The E-DIO24-OEM has the following components, as shown in Figure 2:


Header connectors


LED status indicators

Ethernet connector

External power connectors

Factory reset button
1 Header connector W6
2 Pull-up/down jumper W3 (port 1)
3 Pull-up/down jumper W4 (port 2)
4 Pull-up/down jumper W5 (port 0)
5 Header connector W2
Header connectors
The E-DIO24-OEM header connectors are labeled

24 digital I/O connections (

One counter input (access with

One voltage power output (

Ground ( ) connections
GND
6
7
8
9
10

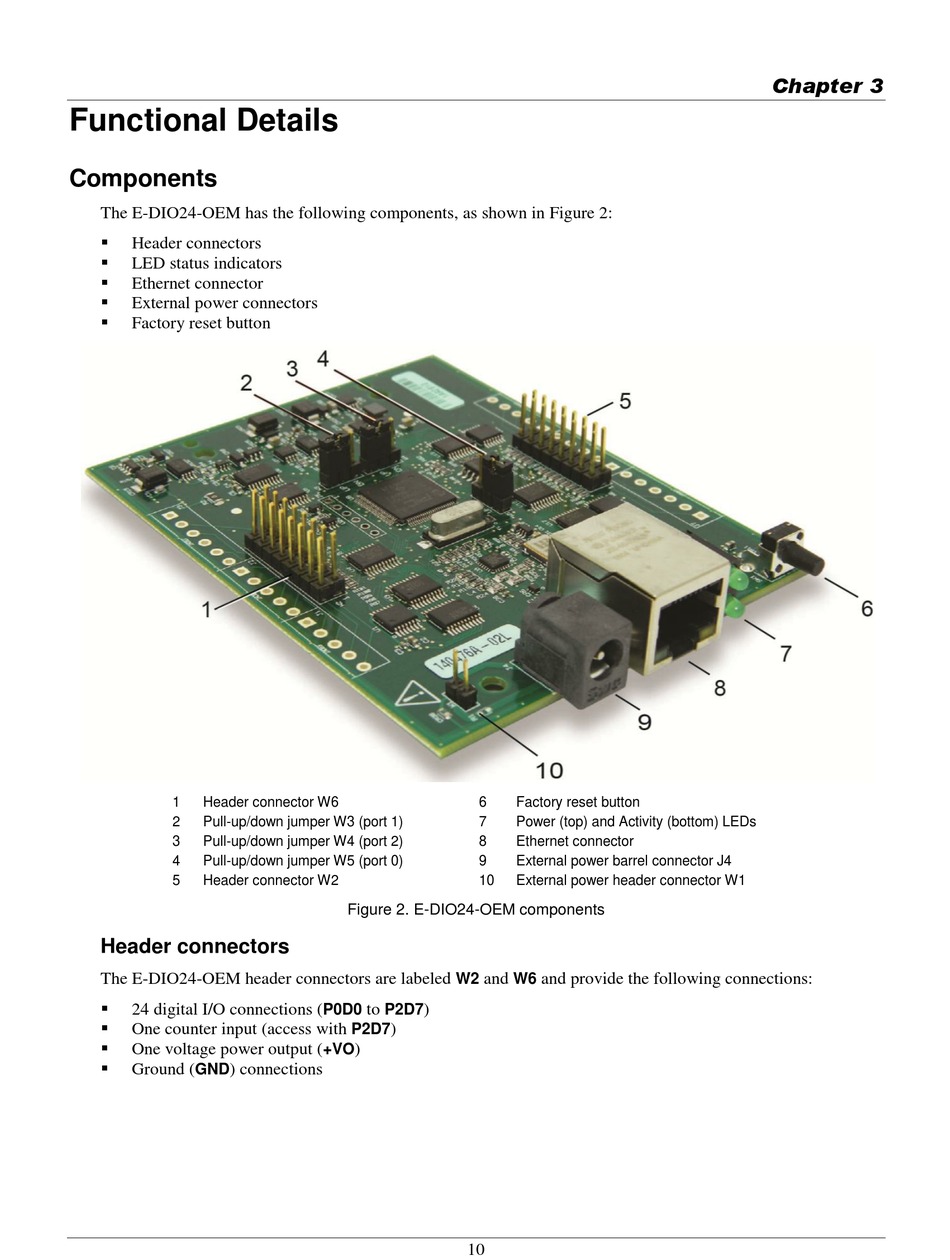

Figure 2. E-DIO24-OEM components
W2 and
P0D0 to P2D7 )
P2D7 )
)
+VO
10
Factory reset button
Power (top) and Activity (bottom) LEDs
Ethernet connector
External power barrel connector J4
External power header connector W1
W6 and provide the following connections:
