Luxul XMS-2624P Quick Install Manual

Sales Technical Support
P: 801-822-5450 P: 801-822-5450 Option 3
E: sales@luxul.com E: support@luxul.com
Copyright and Trademark Notices
No part of this document may be modified or adapted in any way, for any purposes without permission
in writing from Luxul. The material in this document is subject to change without notice. Luxul reserves
the right to make changes to any product to improve reliability, function, or design. No license is granted,
either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied
license only exists for equipment, circuits and subsystems contained in this or any Luxul product.
© Copyright 2016 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and
Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other
trademarks and registered trademarks are property of their respective holders.
LUX-QIG-XMS-2624P-v2 08191611
QUICK INSTALL GUIDE
26-Port/24 PoE+
Gigabit Managed Switch

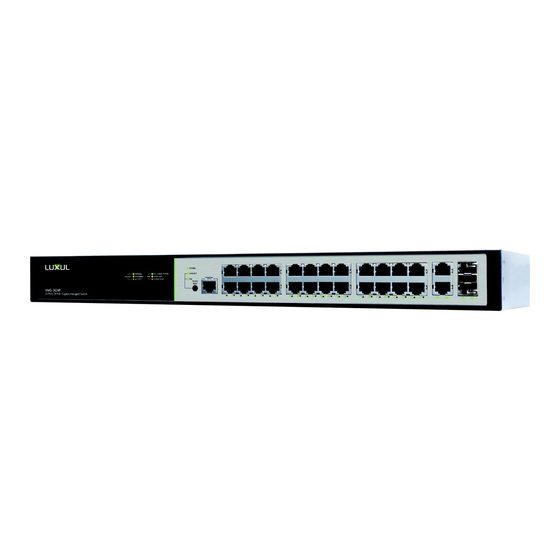

XMS-2624P
Includes:
XMS-2624P 26-Port PoE Switch
„
Rack Mount Kit and Power Cord
„
INSTALLATION AND SETUP
1
Physical Installation
The XMS-2624P can easily be installed in a standard 19" rack. Two mounting ears
are included for installing and stabilizing the switch. When attaching the mounting
ears and installing the switch in a rack, please refer to the following illustration:
Rack-Mounting the XMS-2624P
Using the included screws to attach the mounting ears to each side
„
of the switch.
Mount the switch in the rack with the LEDs facing outwards. Be sure the
„
switch is level and properly secured in the rack.
Desktop Setup
For use as a desktop device, position and apply the included rubber feet to the
bottom of the XMS-2624P.
2
Connecting Ethernet and Power
Ethernet and Power Connections
Use any one of the 26 Ethernet ports to connect the XMS-2624P to any
Ethernet-enabled device, including servers, routers or other switches.
No crossover cable is necessary.
The XMS-2624P supports 10/100/1000 Mbps Ethernet; 10/100 Mbps half/
full-duplex mode and 1000 Mbps full-duplex mode. Ports 1-24 are PoE+ and
are enabled by default. Ports 25 and 26 are Gigabit Ethernet only (non PoE).
Use the included power cable to connect the XMS-2624P to a surge-
protected outlet. The AC input socket is on the rear panel. The built-in
power supply supports 100~240VAC at 50/60Hz.
Network Cabling
Luxul recommends Category-5, super Category-5 or Category-6 unshielded
twisted pair (CAT5/CAT5e/CAT6 UTP). To ensure best performance and
stable data transmission at 1000 Mbps, use Category-6 shielded twisted pair.
CAUTION: Multiple Uplink channels can create loops, resulting in
c
network failure. Ensure only one Uplink channel exists
between switches or between the XMS-2624P and a router.
NOTE: When powering up, the port LEDs may take a moment to
n
initialize. This is normal as the XMS-2624P initialization and
startup sequence completes.
NOTE: The XMS-2624P has an internal 370W power supply. Do not
n
exceed 25.5W each or 370W combined consumption of all
external PoE devices.
