Luxul XMS-1008P Quick Install Manual

Luxul XMS-1008P Quick Install Manual

Gigabit ethernet smart poe switch
Hide thumbs Also See for XMS-1008P:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

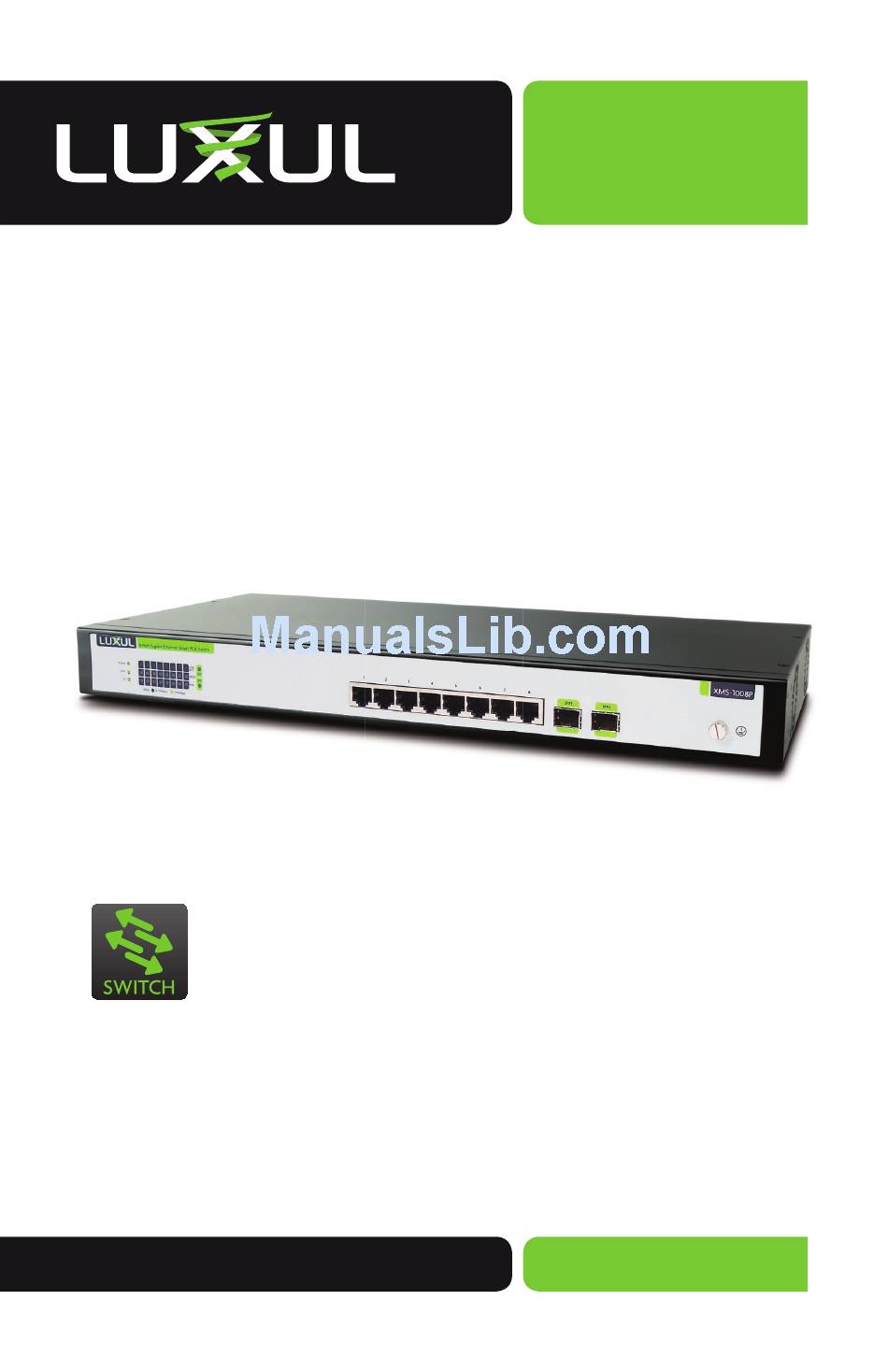

Quick Install Guide

Gigabit Ethernet Smart POE Switch
Use the XMS-1008P to:
Combine the Benefi ts of POE with Gigabit Technology
„
(10X Performance of Fast Ethernet)
Simplify POE Device Installation, While Enhancing
„
Network Performance
Provide Intuitive Network Management and
„
Optimization Capabilities
Optimize and Protect Your Network with Advanced VLAN,
„
QoS and Network Security Features
Simply Connected
XMS-1008P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XMS-1008P and is the answer not in the manual?

Questions and answers

Related Manuals for Luxul XMS-1008P

Summary of Contents for Luxul XMS-1008P

  • Page 1: Quick Install Guide

    Simply Connected Quick Install Guide XMS-1008P Gigabit Ethernet Smart POE Switch Use the XMS-1008P to: Combine the Benefi ts of POE with Gigabit Technology „ (10X Performance of Fast Ethernet) Simplify POE Device Installation, While Enhancing „ Network Performance Provide Intuitive Network Management and „...

  • Page 2: Document Conventions

    No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design.

  • Page 3: Hardware Description

    HARDWARE DESCRIPTION Front Panel The front panel of the XMS-1008P switch includes 8 1000Mbps RJ45 and 2 SFP expansion ports on the right side and LED indicators on the left side. Each 1000Mbps port has one Link/Activity LED, one 1000Mbps LED and one POE LED, there are also two SFP LEDs, one Power LED, one System LED and a reset button.

  • Page 4: Reset Button

    DO NOT hold the button as this will factory default the switch To Restore the Default Settings: With the XMS-1008P powered on, press and hold the Reset „ button until the status of the System LED shows the following: On – flashing – off. You can now release the Reset button, and the switch automatically restores the factory default settings.

  • Page 5: Rear Panel

    The rear panel provides an AC input socket and power on/off switch. Use the included power cable to connect the XMS-1008P to a surge protected outlet. The built-in high- performance switching power supply of the XMS-1008P supports an input range of: AC 100 V ~ 220V, 50 Hz ~ 60 HZ.

  • Page 6: Before Connecting To The Network

    Check the power cord to confirm a secure connection. „ Avoid placement in direct sunlight. „ When installing the XMS-1008P on a flat surface, attach the rubber feet to the bottom of the „ device to avoid scratching the surface. XMS-1008P INSTALLATION...

  • Page 7: Network Connections

    1000 Mbps full-duplex mode. All RJ-45 ports support Auto MDI/MDIX and can be used as ordinary ports or as Uplink ports. Any RJ-45 port can be used to connect the XMS-1008P to an Ethernet enabled device (including servers, routers, and other switches) without a crossover cable.

  • Page 8: Advanced Settings

    Click any menu item on the left to view and/or modify the corresponding settings or functions. ADVANCED SETTINGS For login and advanced settings information see the User Guide on luxul.com FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
