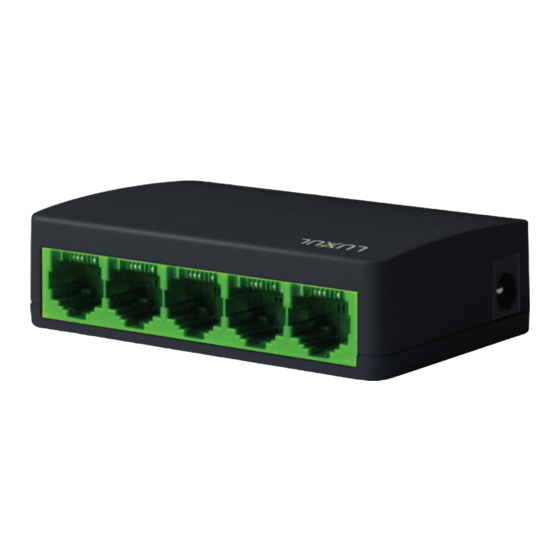

- Page 1 QUICK INSTALL GUIDE 5-Port Mini Fast Ethernet Switch XVS-F5 Includes: One: 5-Port Mini Fast Ethernet Switch „ One: Power Adapter „...
- Page 2 INSTALLATION AND SETUP Physical Installation Install the XVS-F5 in a stable/safe place to avoid any possible damage. Avoid placement in direct sunlight and do not place heavy articles on the switch. Mounting The XVS-F5 may be placed horizontally on a solid, level platform or wall-mounted using the keyhole mounts in the rear panel.
- Page 3 Connecting Power Connect the included AC power adapter to a power outlet near the XVS-F5, then connect the power adapter plug to the switch power connector. XVS-F5 Side Panel View with Power Connector CAUTION: Use only the included power supply. If a different power supply is used, it could damage the XVS-F5.
- Page 4 Connecting Ethernet Connecting Devices Use standard Ethernet CAT5, CAT5e or CAT6 cable to connect the XVS-F5 to a device as described below. The XVS-F5 will automatically adjust to the characteristics (speed/duplex) of the device to which it is connected. Connecting the XVS-F5 to Devices When a device is properly connected, the Link/Activity LED for the port lights up green.
- Page 5 Connecting to a Router or Other Switch Use an Ethernet cable to connect the XVS-F5 to a router or other switch. The XVS-F5 automatically adjusts to the speed and duplex of the connected switch or router, so uplink cables are not necessary.
- Page 6 The following chart shows the LED indicators of the XVS-F5 along with an explanation of the indicator’s properties: Color Status Description Power Green This indicator lights up when the XVS-F5 is powered If this indicator is not — lit, check the DC power...
- Page 7 No part of this publication, or any other publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design.
