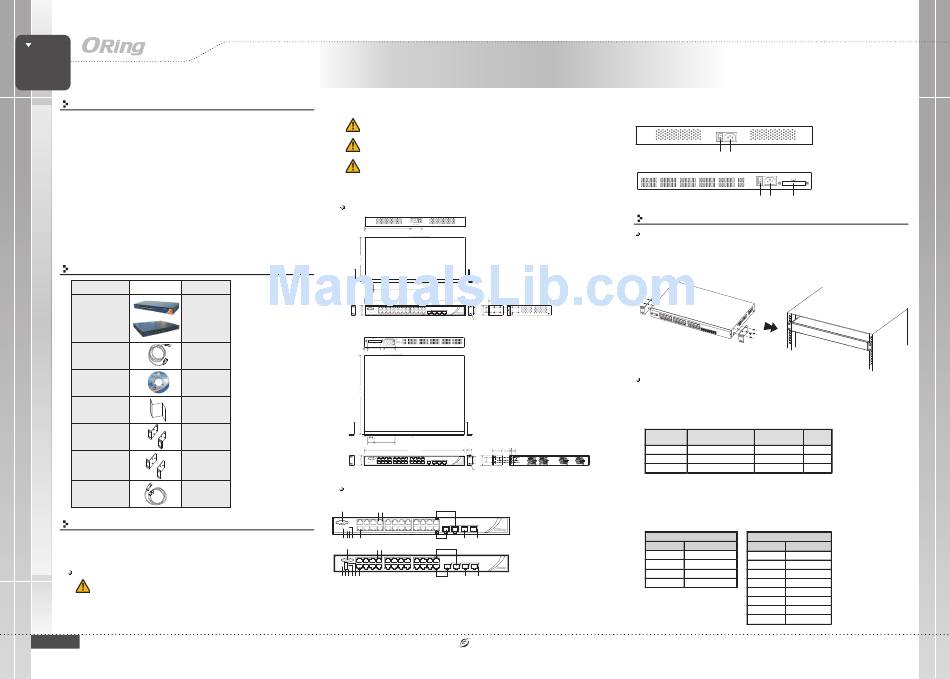

ORiNG RGS-92222GCP-NP Series Installation Manual

GIGABIT
SWITCH
Q I
M A N A G E D uick nstallation
Rack-Mount
Introduction

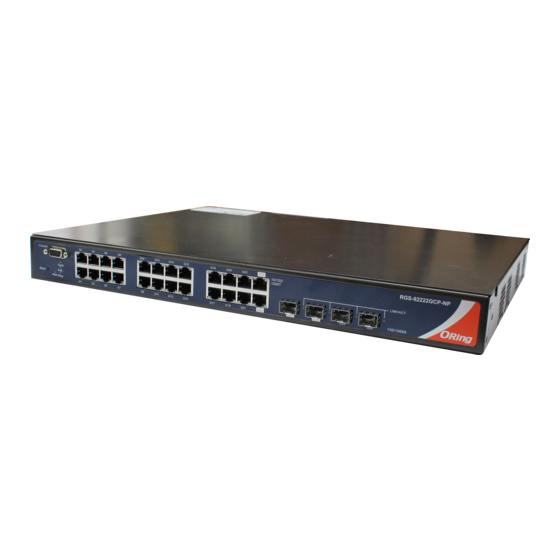

The RGS-92222GCP-NP series which consist of
RGS-92222GCP-NP-E , are managed Ethernet switches designed for
Feat
industrial applications. uring 22 10/100/1000Base-T(X) ports, 2
Gigabit combo ports and 2 100/1000Base-X SFP ports, the series is
able to meet the needs for high port density and high-speed, long-
distance transmission. The RGS-92222GCP-NP-E
with dual DC inputs and relay output. With complete support for Ethernet
redundancy protocols such as O-Ring (recovery time < 30ms over 250 units
of connection) and MSTP (RSTP/STP compatible), the series can protect
your mission-critical applications from network interruptions or temporary
malfunctions with its fast recovery technology. Featuring a wide operating
temperature from -40 C to 75 C, the device can be managed centrally and o o
conveniently via Open-Vision, web browsers, Telnet and console (CLI)
configuration, making it one of the most reliable choice for highly-managed
and Fiber Ethernet power substation and rolling stock application.
Package Contents
Contents Pictures Number
RGS-92222GCP-NP
or
RGS-92222GCP-NP-E
Console Cable
CD
QIG
RGS-92222GCP-NP
Rack-mounted
kit (L&R)
RGS-92222GCP-NP-E
Rack-mounted
kit (L&R)
Power Cable
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Q I G
RGS-92222GCP-NP Series
RGS-92222GCP-NP Series
G
uide
RGS-92222GCP-NP , and
Reduced Air Flow:
amount of air flow required for safe operation of the equipment is not compromised.
Mechanical Loading:
hazardous condition is not achieved due to uneven mechanical loading.
Circuit Overloading:
is an enhanced model
the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
Dimension
17.80
30.20
G2
Console
R.M.
Reset
PWR Ring G1
X 1
14.2
58.8
X 1
X 1
X 1
X 1
17.80
30.20
Console G2
PW3 Fault
X 1 PW2 R.M.
Reset
PW1 Ring G1
Panel Layouts
X 1
1
7 8
G2 G4 G6 G8
Console
R.M.
Reset
PWR Ring
G1 G3 G5 G7
2 3 4 5 6
1
7 8
G2 G4 G6 G8
Console
PW3 Fault
Reset PW2 R.M.
PW1 Ring
G1 G3 G5 G7
2 3 4 5 13 6
1. Console port
2. Reset button
3. Power indicator
4. Ring status LED
5. RM status LED
6. LAN ports
1907-2-29-RGS92222GCPNP-1.0
Installation of the equipment in a rack should be such that the
Mounting of the equipment in the rack should be such that a
Consideration should be given to the connection of the equipment to
215.5 49.0
6.60
238.00
15.90
19.00
443.70 58.00 26.70 24.00
3.90
G4 G6 G8 G10 G12 G14 G16 G18 G20 G22 G24
1000T 10/100/ RGS-92222GCP-NP
LINK/ACT
100/1000X
G3 G5 G7 G9 G11 G13 G15 G17 G19 G21 G23 G23 G24 G25 G26
R3.50
RGS-92222GCP-NP
49.0
82.00
25.50
20.00
431.00 35.50 8.00
5.50
G4 G6 G8 G10 G12 G14 G16 G18 G20 G22 G24
10/100/ RGPS-92222GCP-NP-E
1000T
LINK/ACT
100/1000X
G3 G5 G7 G9 G11 G13 G15 G17 G19 G21 G23 G23 G24 G25 G26
R3.25
RGS-92222GCP-NP-E
Front View
10
G10 G12 G14 G16 G18 G20 G22 G24
10/100/ RGS-92222GCP-NP
1000T
LINK/ACT RGS-92222GCP-NP
100/1000X
G9 G11 G13 G15 G17 G19 G21 G23 G23 G24 G25 G26
9 11 12
10
G10 G12 G14 G16 G18 G20 G22 G24
10/100/ RGPS-92222GCP-NP-E
1000T
RGS-92222GCP-NP-E
LINK/ACT
100/1000X
G9 G11 G13 G15 G17 G19 G21 G23 G23 G24 G25 G26
9 11 12
7. LED for Ethernet ports link/act status
8. LED for Ethernet ports Speed indicator
9. First Gigabit combo port
10. Second Gigabit combo port
11. SFP ports
12. LNK/ACT LED for SFP ports
13. Fault indicator
PRINTED ON RECYCLED PAPER
Managed Gigabit Ethernet Switch
Rear View
AC 100-240V
50-60 HZ
1 2
RGS-92222GCP-NP
AC 100-240V V+ V- V- V+
50-60HZ
PW1
PW2 3A@24V PW3
AC Power SWITCH
DC Power 48V
1 2 3
RGS-92222GCP-NP-E
Installation
Rack-mounting
Step 1: Install left and right front mounting brackets to the switch using four screws on each side.
Step 2: With front brackets orientated in front of the rack, fasten the brackets to the rack using two
more screws.
Network Connection
The switch provides standard Ethernet ports. According to the link type, the switch uses CAT
3,4,5,5e UTP cables to connect to any other network devices (PCs, servers, switches,
routers, or hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications:
Cable Type Max. Length Connector
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) RJ-45
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft) RJ-45
1000BASE-T Cat. 5 / Cat. 5e 100-ohm UTP UTP 100 m (328 ft) RJ-45
With 10/100BASE-T(X) cables, pins 1 and 2 are used for transmitting data, and pins 3 and 6 are
used for receiving data. The device also supports auto MDI/MDI-X operation. You can use a
cable to connect the switch to a PC
For pin assignments for different types of cables, please refer to the following
tables.
10/100Base-T(X) RJ-45 port 1000Base-T RJ-45 port
Pin Number Assignment Pin Number Assignment
#1 TD+ #1 BI_DA+
#2 TD- #2 BI_DA-
#3 RD+ #3 BI_DB+
#6 RD-
#4 BI_DC+
#5 BI_DC-
#6 BI_DB-
#7 BI_DD+
#8 BI_DD-
Quick Installation Guide
Version 1.0
1. Power switch
2. AC power input (100V~240V
/ 50~60Hz)
3. Dual DC power inputs
