Industrial
Lite-managed Ethernet Switch
IES-2050A User's Manual
Version 1.3
Mar , 2010.
ORing Industrial Networking Corp.
4F., NO.3, Lane235, Baociao Rd.Sindian City,
Taipei County 23145 Taiwan, R.O.C.
Tel: + 886 2 2918 3036
Fax: + 886 2 2918 3084
Website: www.oring-networking.com
E-mail:
support@oring-networking.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES-2050A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ORiNG IES-2050A

Summary of Contents for ORiNG IES-2050A

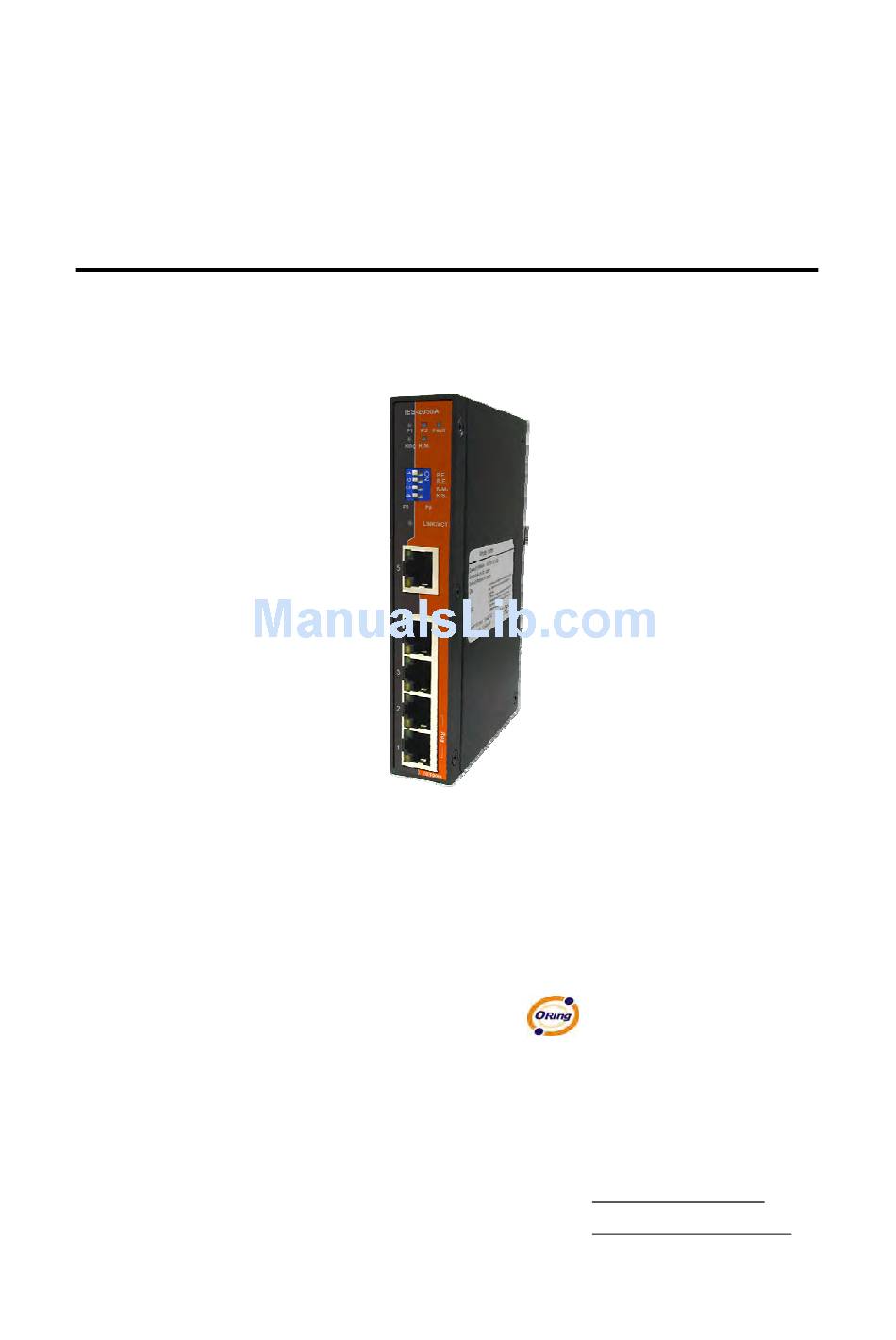

  • Page 1 Industrial Lite-managed Ethernet Switch IES-2050A User’s Manual Version 1.3 Mar , 2010. ORing Industrial Networking Corp. 4F., NO.3, Lane235, Baociao Rd.Sindian City, Taipei County 23145 Taiwan, R.O.C. Tel: + 886 2 2918 3036 Fax: + 886 2 2918 3084 Website: www.oring-networking.com E-mail: support@oring-networking.com...

  • Page 2: Table Of Contents

    Table of Content Getting to Know Your Switch................3 About the IES-2050A Lite-Managed Industrial Switch ..........3 Software Features ......................3 Hardware Features......................3 Hardware Installation..................4 Installing Switch on DIN-Rail.....................4 2.1.1 Mount IES-2050A on DIN-Rail..................4 Wall Mounting Installation....................5 2.2.1 Mount IES-2050A on wall....................5 Hardware Overview..................6 Front Panel ..........................6...
  • Page 3 SYSLOG Setting....................33 5.1.7.2. System Event LOG ....................34 5.1.7.3. SMTP Setting ......................35 5.1.7.4. Even Selection.......................36 5.1.7.5. Fault Alarm ......................37 5.1.8 Front Panel ...........................37 5.1.9 Save Configuration ......................38 5.1.10 Factory Default ........................38 5.1.11 System Reboot ........................38 Technical Specifications ................39 ORing Industrial Networking Corp.

  • Page 4: Getting To Know Your Switch

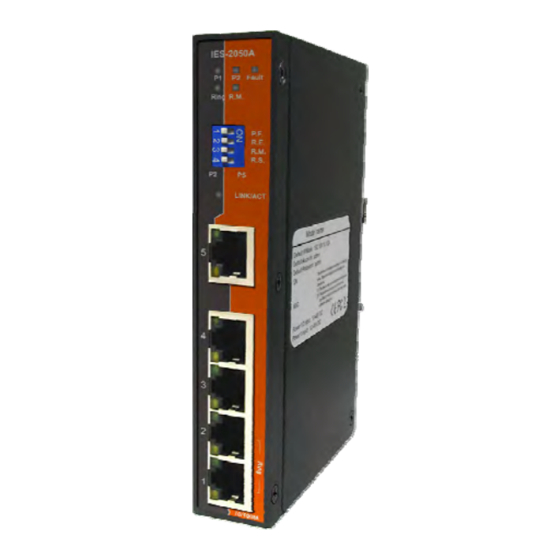

    The IES-2050A switch is cost-effect and powerful industrial switch with many features. The switch can work under wide temperature and dusty environment and humid condition. The IES-2050A switch can be managed by WEB and a useful Window Utility we called Open-Vision. Open-Vision is powerful network management software. With its friendly and powerful interface, you can easily configure multiple switches at the same time, and monitor switches’...

  • Page 5: Hardware Installation

    Each switch has a DIN-Rail kit on rear panel. The DIN-Rail kit helps switch to fix on the DIN-Rail. It is easy to install the switch on the DIN-Rail: 2.1.1 Mount IES-2050A on DIN-Rail Step 1: Slant the switch and mount the metal spring to DIN-Rail.

  • Page 6: Wall Mounting Installation

    The following steps show how to mount the switch on the wall: 2.2.1 Mount IES-2050A on wall Step 1: Remove DIN-Rail kit. Step 2: Use 8 screws that can be found in the package to combine the wall mount panel.

  • Page 7: Hardware Overview

    IES-2050A User’s Manual ardware Overview Front Panel The following table describes the labels that stick on the IES-2050A Port Description 10/100 RJ-45 fast 10/100Base-T(X) RJ-45 fast Ethernet ports support Ethernet ports auto-negotiation. Default Setting : Speed: auto Duplex: auto Flow control : disable Push reset button 2 to 3 seconds to reset the switch.
  • Page 8 IES-2050A User’s Manual IES-2050A 1. Model name 2. LED for Power1 & Power2 When the Power links, the green led will be light on 3. LED for Fault Relay. When the fault occurs, the amber LED will be light on.

  • Page 9: Front Panel Leds

    LNK / ACT Blinking Data transmitted. LINK Amber LINK LED Bottom Panel The bottom panel components of IES-2050A are showed as below: Terminal block includes: PWR1, PWR2 (12-48V DC) and Relay output (1A@24VDC). IES-2050A power connection ORing Industrial Networking Corp.

  • Page 10: Ethernet Cables

    Cables Ethernet Cables The IES-2050A switch have standard Ethernet ports. According to the link type, the switch use CAT 3, 4, 5, 5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
  • Page 11 IES-2050A User’s Manual The IES-2050A switch supports auto MDI/MDI-X operation. You can use a straight-through cable to connect PC and switch. The following table below shows the 10BASE-T/ 100BASE-TX MDI and MDI-X port pin outs. MDI/MDI-X pins assignment Pin Number...

  • Page 12: Web Management

    IES-2050A User’s Manual EB Management Configuration by Web Browser This section introduces the configuration by Web browser. 5.1.1 About Web-based Management An embedded HTML web site resides in flash memory on the CPU board. It contains advanced management features and allows you to manage the switch from anywhere on the network through a standard web browser such as Microsoft Internet Explorer.
  • Page 13 IES-2050A User’s Manual 3. The login screen appears. 4. Key in the username and password. The default username and password is “admin”. 5. Click “Enter” or “OK” button, then the main interface of the Web-based management appears. Login screen Main Interface Main interface ORing Industrial Networking Corp.

  • Page 14: Basic Setting

    IES-2050A User’s Manual 5.1.2 Basic Setting 5.1.2.1 Switch setting Switch setting interface The following table describes the labels in this screen. Label Description System Name Assign the name of switch. The maximum length is 64 bytes System Description Display the description of switch.

  • Page 15: Admin Password

    IES-2050A User’s Manual 5.1.2.2 Admin Password Change web management login username and password for the management security issue Admin Password interface The following table describes the labels in this screen. Label Description User name Key in the new username (The default is “admin”) Key in the new password (The default is “admin”)
  • Page 16 IES-2050A User’s Manual The following table describes the labels in this screen. Label Description DHCP Client To enable or disable the DHCP client function. When DHCP client function is enabling, the switch will assign the IP address from the network DHCP server. The default IP address will be replaced by the IP address which the DHCP server has assigned.

  • Page 17: Sntp Configuration

    IES-2050A User’s Manual 5.1.2.4 SNTP Configuration The SNTP (Simple Network Time Protocol) settings allow you to synchronize switch clocks in the Internet. SNTP Configuration interface The following table describes the labels in this screen. Label Description Enable or disable SNTP function to get the time from the SNTP SNTP Client server.
  • Page 18 IES-2050A User’s Manual AST - Atlantic Standard -4 hours 8 am EDT - Eastern Daylight EST - Eastern Standard -5 hours 7 am CDT - Central Daylight CST - Central Standard -6 hours 6 am MDT - Mountain Daylight MST - Mountain Standard...

  • Page 19: Lldp

    IES-2050A User’s Manual IDLE - International Date Line NZST - New Zealand Standard +12 hours Midnight NZT - New Zealand The following table describes the labels in this screen. Label Description SNTP Sever IP Set the SNTP server IP address.

  • Page 20: Dip Setting

    IES-2050A User’s Manual 5.1.2.6 Dip Setting You can select Dip switch mode enable or disable Dip setting interface The following table describes the labels in this screen Label Description Dip Switch Mode Enable or disable Dip Switch control Apply Apply setting 5.1.2.7 Backup &...

  • Page 21: Upgrade Firmware

    IES-2050A User’s Manual Restore Click “Restore” to restore the configurations. Fill the file name. Restore File Name Restore Click “Restore” to restore the configurations. Click “Backup” to backup the configurations. Backup 5.1.2.8 Upgrade Firmware Upgrade Firmware allows you to update the switch firmware. Before updating, make sure you have your TFTP server ready and the firmware image is on the TFTP server.

  • Page 22: Port Status

    IES-2050A User’s Manual The following table describes the labels in this screen. Label Description Port NO. Port number for setting. Enable/Disable the port. State Speed/Duplex You can set Auto-negotiation, 100 full,100 half,10 full,10 half mode. Flow Control Support symmetric and asymmetric mode to avoid packet loss when congestion occurred.

  • Page 23: Redundancy

    The Fast Recovery Mode can be set to connect multiple ports to one or more switches. The IES-2050A with its fast recovery mode will provide redundant links. Fast Recovery mode supports 5 priorities, only the first priority will be the act port, the other ports configured with other priority will be the backup ports.

  • Page 24: O-Ring

    IES-2050A User’s Manual 5.1.4.2 O-Ring O-Ring is one of the most powerful Redundant Ring technology in the world. The recovery time of O-Ring is less than 10 ms over 250 units of connections. It can reduce unexpected malfunction caused by network topology change. O-Ring technology supports three Ring topologies for network redundancy: O-Ring, Coupling Ring and Dual Homing.

  • Page 25: Open-Ring

    5.1.4.3 Open-Ring Open-Ring technology can be applied for other vendor’s proprietary ring. Thus, you can add switches of ORing into the network constructed by other ring technology and enable Open-Ring to co-operate with other vendor’s managed switch. Click ”Connect to other vendor’s ring…..” to join the ring constructed by other vendor.
  • Page 26 IES-2050A User’s Manual Open-Ring interface Label Description Enable Enabling the Open-Ring function Choosing the venders that you want to join to their ring Vender Ring Port Choosing the port which connect to the ring Ring Port Choosing the port which connect to the ring The application of Open-Ring is shown as below.

  • Page 27: Rstp

    IES-2050A User’s Manual 5.1.4.4 RSTP The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol. It provides faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol.
  • Page 28 IES-2050A User’s Manual must be multiple of 4096 according to the protocol standard rule. The number of seconds a bridge waits without receiving Max Age (6-40) Spanning-tree Protocol configuration messages before attempting a reconfiguration. Enter a value between 6 through 40.

  • Page 29: Vlan Configuration - Port Based

    IES-2050A User’s Manual RSTP Information Show RSTP algorithm result at this table. RSTP Information interface 5.1.5 VLAN Configuration – Port Based A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which allows you to isolate network traffic. Only the members of the VLAN will receive traffic from the same members of VLAN.

  • Page 30: Snmp Configuration

    IES-2050A User’s Manual VLAN Configuration – Port Based VLAN interface The following table describes the labels in this screen. Label Description Group Mark the blank to assign the port into VLAN group. Apply Click “Apply” to activate the configurations. Help Show help file.

  • Page 31: Snmp -Trap Setting

    IES-2050A User’s Manual The following table describes the labels in this screen. Label Description SNMP – Agent SNMP Community should be set for SNMP. Four sets of "Community String/Privilege" are supported. Each Community Setting String is maximum 32 characters. Keep empty to remove this Community string.

  • Page 32: Snmp-Snmpv3 Setting

    IES-2050A User’s Manual 5.1.6.3 SNMP –SNMPV3 Setting The following table describes the labels in this screen Label Description Configure SNMP v3 context table. Assign the context name of Context Table context table. Click "Apply" to change context name User Table 1.
  • Page 33 IES-2050A User’s Manual 6. Click "Remove" to remove unwanted context name. Group Table 1. Configure SNMP v3 group table. 2. Security Name (User ID): assign the user name that you have set up in user table. 3. Group Name: set up the group name.

  • Page 34: Warning

    IES-2050A User’s Manual 5.1.7. Warning Warning function is very important for managing switch. You can manage switch by SYSLOG, E-MAIL, and Fault Relay. It helps you to monitor the switch status on remote site. When events occurred, the warning message will send to your appointed server, E-MAIL, or relay fault to switch panel.

  • Page 35: System Event Log

    IES-2050A User’s Manual System Event LOG 5.1.7.2. If system log client is enabled, the system event logs will show in this table. System event log interface The following table describes the labels in this screen. Label Description Page Select LOG page.

  • Page 36: Smtp Setting

    IES-2050A User’s Manual SMTP Setting 5.1.7.3. The SMTP is Short for Simple Mail Transfer Protocol. It is a protocol for e-mail transmission across the Internet. Please refer to RFC 821 - Simple Mail Transfer Protocol. System Warning – SMTP Setting interface The following table describes the labels in this screen.

  • Page 37: Even Selection

    IES-2050A User’s Manual Even Selection 5.1.7.4. SYSLOG and SMTP are the two warning methods that supported by the system. Check the corresponding box to enable system event warning method you wish to choose. Please note that the checkbox can not be checked when SYSLOG or SMTP is disabled.

  • Page 38: Fault Alarm

    When any selected fault event is happened, the Fault LED in switch panel will light up and the electric relay will signal at the same time. Fault alarm interface 5.1.8 Front Panel Show IES-2050A panel. Click “Close” to close panel on web. Front panel interface ORing Industrial Networking Corp.

  • Page 39: Save Configuration

    IES-2050A User’s Manual 5.1.9 Save Configuration If any configuration changed, “Save Configuration” should be clicked to save current configuration data into the permanent flash memory. Otherwise, the current configuration will be lost when power off or system reset. System Configuration interface The following table describes the labels in this screen.

  • Page 40: Technical Specifications

    IES-2050A User’s Manual echnical Specifications Technology Ethernet Standards IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3x Flow Control and Back pressure IEEE802.1D Spanning tree protocol IEEE802.1w Rapid Spanning tree protocol IEEE802.1AB LLDP MAC addresses 2048 Flow Control IEEE 802.3x Flow Control and Back-pressure...
  • Page 41 IES-2050A User’s Manual Regulatory Approvals Regulatory Approvals FCC Part 15, CISPER (EN55022) class A EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS) Shock IEC 60068-2-27 Free Fall IEC 60068-2-32 Vibration IEC 60068-2-6 Warranty 5 years ORing Industrial Networking Corp.
