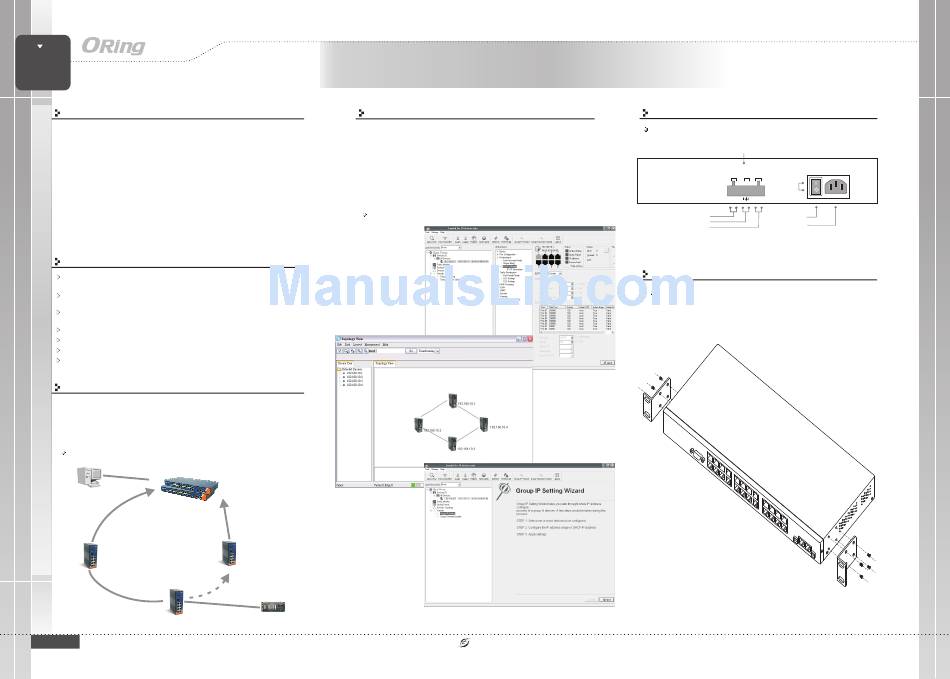

ORiNG RES-3242GC Quick Installation Manual

SWITCH
M A N A G E D
Q I
Rack-Mount
uick nstallation

Introduction

RES-3242GC/-E is designed for the applications of
treatment, power utility, telecommunication, transportation and all other mission-critical
applications that require reliable Ethernet connectivity.
interface of 10/100/1000Base-T(X) or 1000Base-X ports in SFP connector with
redundant ring technology. RES-3242GC/-E can protect your mission-critical
applications from network interruptions or temporary malfunctions with its maximum
10ms ultra fast recovery time. RES-3242GC/-E also support functions of network
management, such as SNMP, RMON and Port/Tag-based VLAN security. Therefore,
RES-3242GC/-E is one of the best choice for highly-managed and Fiber Ethernet
application.

Network Management and Remotely Configured

The management switch can be configured smartly by web browser, Telnet, CLI, and
windows utility (Open-Vision). Network administrators can determine to send event
notifications through email, or SNMP trap. To enhance the security, port access can
be limited to pre-defined IP address table, as well as segment ports into different
VLANs, or filtering multicast traffic by IGMP Snooping.

Features

World's fastest Redundant Ethernet Ring: O-Ring(Recovery time <
10ms over 250 units connection)
Open-Ring support the other vender's ring technology in open
architecture
Managed Layer 2+ Switch with 24 10/100Mbps Ports and 2 Combo
Gigabit Copper/SFP Ports
Support ACLs, 802.1x User Authentication for Security
Management through SNMP, Telnet, Web-based GUI and Window Utility
8K MAC Address Table available
Additional dual DC input and one relay output for RES-3242GC-E model

O-Ring Technology

World's Fastest Recovery Time: < 10ms (O-Ring)
RES-3242GC/-E support the fastest 10ms redundant recovery time which make a non-
stop Ethernet connection. If your primary communication path is disconnected, the O-
Ring Technology provides a redundant path in the network. Its 10ms ultra fast recovery
time allows RES-3242GC/-E to supply a solid foundation of highly fault-tolerant and
easily-managed network.
Redundant Ring (<10ms): O-Ring
IPC
RES-3242GC /-E
O-Ring
(<10ms)
IES-3082GP
IES-3082GP
Q I G
RES-3242GC/RES-3242GC-E
RES-3242GC/RES-3242GC-E
G
uide

Management Utility Software: Open-Vision

facility management, sewage
Open-Vision is not only a powerful utility for configurating but also a useful utility
for monitoring. You can monitor switches' status via Open-Vision. When the
RES-3242GC/-E contains the
monitored switches fail, the failure information will be displayed on Open-Vision
interface.
Open-Vision with its advanced technology can manage not only one but all
switches from the same network simultaneously. Compare to other management
software, it is more advanced and convenient. That is, you could simply set up all
the switches' IPs, backup all the configuration files, and upgrade all firmware at
once which are in the same switch version, but no longer set up these functions one
by one. By Open-Vision, the effort of networking technician can be minimized.
Network Management Windows Utility
IES-3082GP
PLC
1907-2-29-RES3242GC-1.4
Open-Vision Open-Vision
Open-Vision Open-Vision
PRINTED ON RECYCLED PAPER

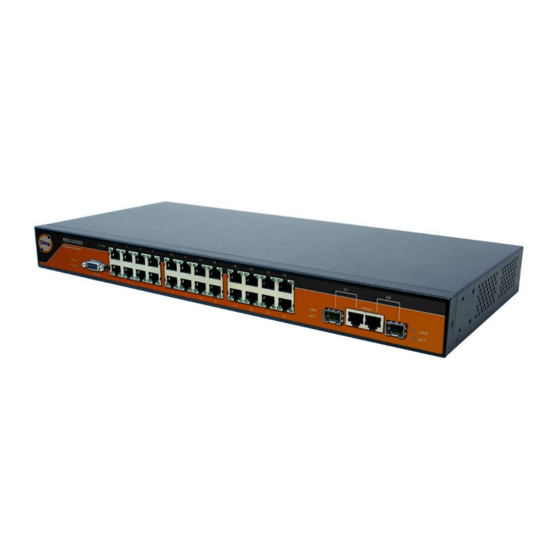

Managed Ethernet Switch

Product Interface

Back View
RES-3242GC-E Only
AC100-240V
DC12-48V
50-60HZ
PWR-2 1A@24V PWR-1
ON
OFF
V2+ V2- V1+ V1-
Terminal Block Power-1 Input
Power Switch
Relay Output Pin
AC 100-240V Power
Terminal Block Power-2 Input

Installation

Rack-mounted Install Step

Quick Installation Guide
Version 1.4
