I
n
d
u
s
t
r
i
a
l
I
n
d
u
s
t
r
i
a
l
ORing Industrial Networking Corp.
I
E
S
-
3
0
8
2
G
I
E
S
-
3
0
8
2
G
M
a
n
a
g
e
d
E
t
M
a
n
a
g
e
d
E
t
U
s
e
r
M
a
n
U
s
e
r
M
a
n
V
e
r
s
i
o
n
1
.
0
V
e
r
s
i
o
n
1
.
0
M
a
r
,
2
0
1
3
M
a
r
,
2
0
1
3
C
C
h
e
r
n
e
t
S
w
i
t
c
h
e
r
n
e
t
S
w
i
t
c
u
a
l
u
a
l
w
w
w
w
w
w
.
.
o
o
r
r
i
i
n
n
g
g
-
-
n
n
e
e
t
t
w
w
h
h
0
o
o
r
r
k
k
i
i
n
n
g
g
.
.
c
c
o
o
m
m
Advertisement
Table of Contents
Related Manuals for ORiNG IES-3082GC
Summary of Contents for ORiNG IES-3082GC

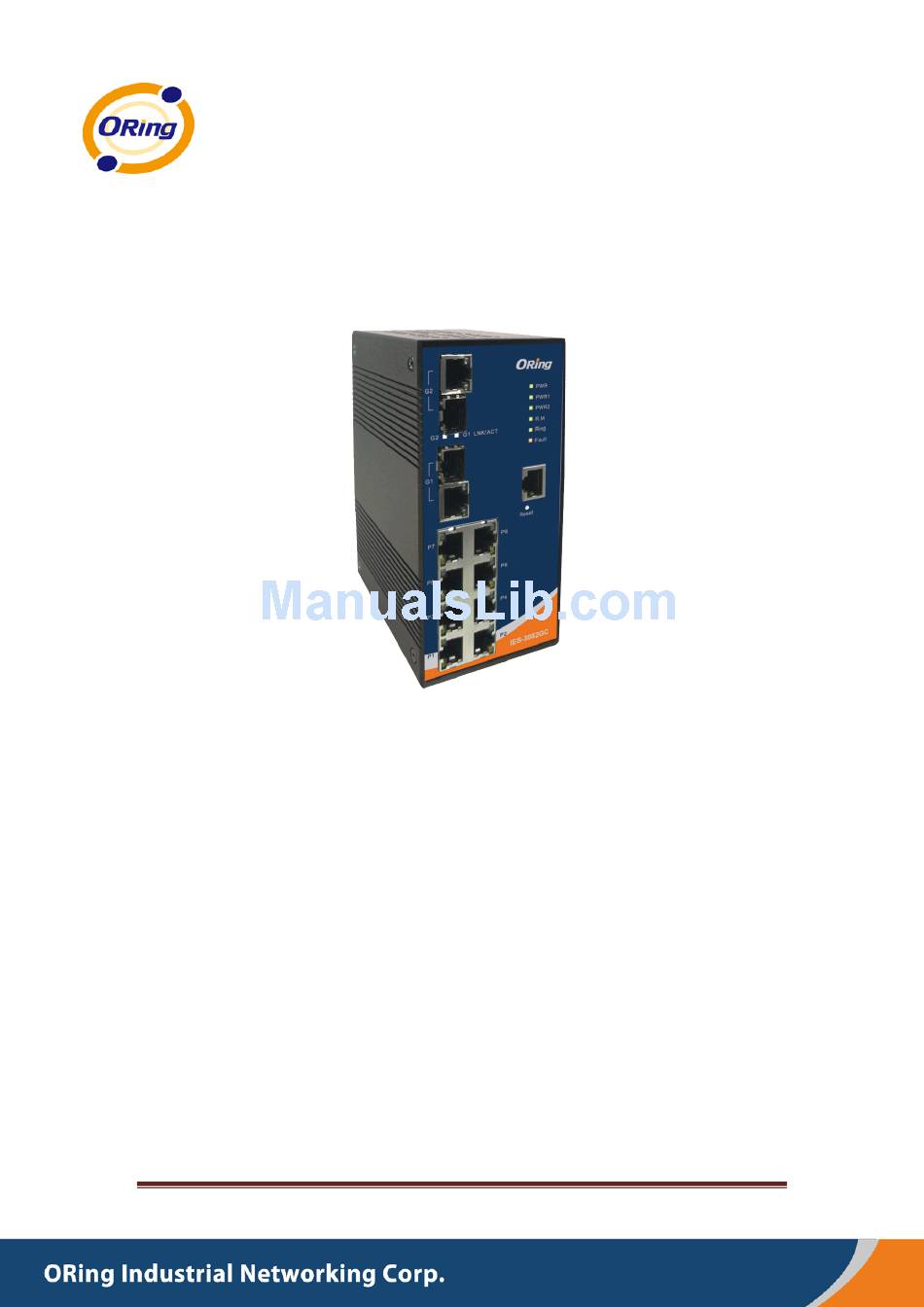

- Page 1 ORing Industrial Networking Corp.
- Page 2 ORing warrants that all ORing products are free from defects in material and workmanship for a specified warranty period from the invoice date (5 years for most products). ORing will repair or replace products found by ORing to be defective within this warranty period, with shipment expenses apportioned by ORing and the distributor.
-
Page 3: Table Of Contents
IES-3082GC User Manual Table of Content Getting to Know Your Switch ................ 5 About the IES-3082GC Managed Industrial Switch..........5 Software Features ....................5 Hardware Features ....................7 Hardware Installation ..................8 DIN-rail Installation ....................8 Wall Mounting ....................... 9 Hardware Overview .................. - Page 4 IES-3082GC User Manual 5.1.1.1 MRP ...................... 27 5.1.1.2 O-Ring ....................28 5.1.1.3 Oen-Ring ....................30 5.1.1.4 O-Chain ....................31 5.1.1.5 RSTP – Repeater ................... 32 5.1.1.6 Fast Recovery ..................32 5.1.1.7 RSTP ..................... 33 5.1.1.8 MSTP..................... 36 5.1.2 Multicast ......................40 5.1.2.1...
- Page 5 IES-3082GC User Manual 5.1.8.1 Management Security ................59 5.1.8.2 Static MAC Forwarding ................59 5.1.8.3 MAC Blacklist ..................60 5.1.8.4 802.1x ....................61 5.1.8.5 IP Guard ....................63 5.1.9 Warning ......................66 5.1.10 Monitor and Diag ..................68 5.1.10.1 System Event Log .................. 68 5.1.10.2...
-
Page 6: Getting To Know Your Switch

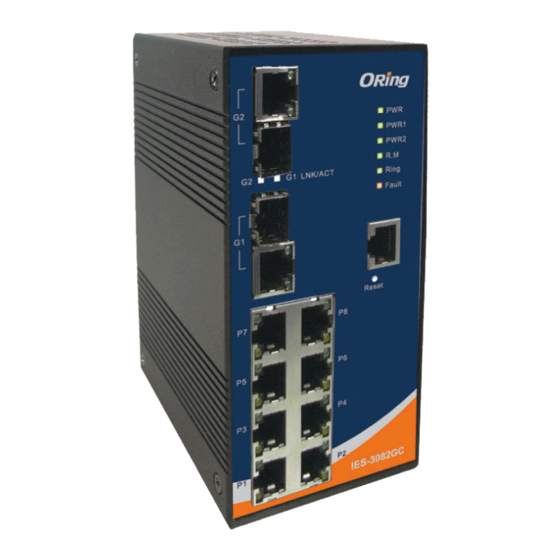

The IES-3082GC is a powerful managed industrial switch designed for extreme temperatures, dusty environments and high humidity. With 8 X 10/100Base-T(X) and 2 x Gigabit combo ports, the IES-3082GC can be managed via web browsers, TELNET, Console or other third-party SNMP software as well as ORing’s proprietary management utility Open-Vision. The user-friendly and powerful interface of Open-Vision allows you to easily configure and monitor multiple switches at the same time. -
Page 7: Hardware Features
10/100/1000Base-T(X) Gigabit Ethernet port (in combo ports) 100/1000Base-X on SFP port (in combo ports) Console port Dimensions (W x D x H): 74.3 mm (W) x 109.2 mm (D) x 153.6 mm (H) ORing Industrial Networking Corp. -
Page 8: Hardware Installation
First, screw the Din-rail kit onto the back of the switch, right in the middle of the back panel. Then slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch clicks into the rail firmly. Din-rail Kit Measurement ORing Industrial Networking Corp. -
Page 9: Wall Mounting
IES-3082GC User Manual Wall Mounting Besides Din-Rail, the switch can be fixed to the wall via a wall mount panel, which can be found in the package. Wall-Mount Kit Measurement To mount the switch onto the wall, follow the steps: 1. - Page 10 IES-3082GC User Manual 2. Use the switch, with wall mount plates attached, as a guide to mark the correct locations of the four screws. 3. Insert four screw heads through the large parts of the keyhole-shaped apertures, and then slide the switch downwards. Tighten the four screws for added stability.
-
Page 11: Hardware Overview
IES-3082GC User Manual ardware Overview 3.1 Front Panel IES-3082GC comes with the following ports on the front panel: Port Description 10/100 RJ-45 fast 10/100Base-T(X) RJ-45 fast Ethernet ports support Ethernet ports auto-negotiation. Default Setting: Speed: auto Duplex: auto Flow control: disable... -
Page 12: Front Panel Leds
Data transmitted. Amber Port link up. SFP ports Port link up. LNK / ACT Green Blinking Data transmitted. 3.3 Top Panel Below are the top panel components of IES-3082GC series: 1. Terminal block 2. Ground wire ORing Industrial Networking Corp. -
Page 13: Rear Panel
IES-3082GC User Manual 3.4 Rear Panel On the rear panel of the switch sit three sets of screw holes. The two sets placed in triangular patterns on both ends of the rear panel are used for wall-mounting (red boxes in the figure below) and the set of four holes in the middle are used for Din-rail installation (blue box in the figure below). -
Page 14: Cables
4.1 Ethernet Cables The IES-3082GC switch has standard Ethernet ports. According to the link type, the switch uses CAT 3, 4, 5,5e UTP cables to connect to any other network devices (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications. -
Page 15: Sfp
IES-3082GC User Manual 10/100 Base-T MDI/MDI-X Pin Assignments: Pin Number MDI port MDI-X port TD+(transmit) RD+(receive) TD-(transmit) RD-(receive) RD+(receive) TD+(transmit) Not used Not used Not used Not used RD-(receive) TD-(transmit) Not used Not used Not used Not used 1000 Base-T MDI/MDI-X Pin Assignments:... -
Page 16: Console Cable
IES-3082GC User Manual 4.3 Console Cable The IES-3082GC switch can be managed via console ports using a RS-232 cable which can be found in the package. You can connect the port to a PC via the RS-232 cable with a DB-9 female connector. -
Page 17: Web Management
IES-3082GC User Manual EB Management 5.1 Configuration by Web Browser This section introduces the configuration by Web browser. 5.1.1 About Web-based Management The switch can be controlled via a built-in web server which supports Internet Explorer (Internet Explorer 5.0 or above versions) and other Web browsers such as Chrome. Therefore, you can manage and configure the switch easily and remotely. - Page 18 IES-3082GC User Manual 1. A login screen appears. 2. Type in the username and password. The default username and password is admin. 3. Click Enter or OK button, the management Web page appears. After logging in, you will see the screen below. On the right hand side of the management interface shows links to various settings.
-
Page 19: Front Panel Configuration
IES-3082GC User Manual Click on the System Information on the right hand column will display the detailed information of the system, shown as below. The system information will display the configuration of the basic setting / switch setting pages. When clicking Enable Location Alert, PWR1, PWR2 and PWR3 LEDs on the switch will start to flash together. -
Page 20: Basic Setting
IES-3082GC User Manual 5.1.4 Basic Setting Basic Settings allow you to configure the basic functions of the switch. 5.1.4.1 Switch Setting Label Description System Name Assigns the name of switch. The maximum length is 64 bytes System Description Description of the device System Location Assigns physical switch location. -
Page 21: Ip Setting
IES-3082GC User Manual 5.1.4.3 IP Setting You can configure IP information of the switch in this page. Label Description Enables or disables the DHCP client function. When DHCP client DHCP Client function is enabled, the switch will be assigned with an IP address by the network DHCP server. -
Page 22: Time Setting
IES-3082GC User Manual 5.1.4.4 Time Setting This page includes configurations of SNTP and system clock. System Clock Label Description System Clock This field shows the current system timer. The time stamp could be assigned manually or by a SNTP server. - Page 23 IES-3082GC User Manual Label Description SNTP Client Enables or disables SNTP function to retrieve the time from the SNTP server. Daylight Saving Time Enables or disables daylight saving time function. When daylight saving time is enabled, you need to configure the daylight saving time period.
-
Page 24: Lldp
IES-3082GC User Manual NZT - New Zealand Label Description SNTP Sever IP Sets SNTP server IP address. Address Daylight Saving Sets up the start and end time of daylight saving. Both will be Period different each year. Daylight Saving Sets up the offset time... -
Page 25: Modbus Tcp
IES-3082GC User Manual Label Description LLDP Protocol Enables or disables LLDP function The interval of resend LLDP (by default at 30 seconds) LLDP Interval Click to set the configurations Apply Shows help file Help Shows neighbor device infomation Neighbor info table 5.1.4.6... -
Page 26: Backup & Restore
IES-3082GC User Manual 5.1.4.8 Backup & Restore You can save current EEPROM value from the switch to a TFTP server, then go to the TFTP restore configuration page to restore the EEPROM value. ORing Industrial Networking Corp. -
Page 27: Upgrade Firmware
IES-3082GC User Manual Label Description Types in TFTP server IP TFTP Server IP Address Types in the file name Restore File Name Click to restore the configurations Restore User can select the file from a local PC instead of a TFTP... -
Page 28: O-Ring
5.1.1.2 O-Ring O-Ring is ORing's proprietary redundant ring technology, with recovery time of less than 10 milliseconds and up to 250 nodes. It can reduce unexpected damage caused by network topology changes. O-Ring supports three Ring topologies: O-Ring, Coupling Ring and Dual Homing. - Page 29 IES-3082GC User Manual Label Description Enable Ring Check to enable Ring Only one ring master is allowed in a ring. However, if more Enable Ring Master than one switches are set to enable Ring Master, the switch with the lowest MAC address will be the active ring master and the others will be backup masters.
-
Page 30: Oen-Ring
Note: time is not recommended. 5.1.1.3 Oen-Ring Open-Ring technology can be applied to enable ORing’s switches to work with other vendors’ proprietary rings. Label Description Enable... -
Page 31: O-Chain
IES-3082GC User Manual 5.1.1.4 O-Chain O-Chain is ORing’s revolutionary network redundancy technology which enhances network redundancy for any backbone networks, providing ease-of-use and maximum fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in a set of network redundancy topologies. The self-healing Ethernet technology designed for distributed and complex industrial networks enables the network to recover in less than 10ms for up to 250 switches if at any time a segment of the chain fails. -
Page 32: Rstp - Repeater
Fast recovery mode can be set to connect multiple ports to one or more switches. The IES-3082GC with fast recovery mode will provide redundant links. Fast recovery mode supports 10 priorities. Only the first priority will be the active port, and the other ports with ORing Industrial Networking Corp. -
Page 33: Rstp
IES-3082GC User Manual Label Description Active Activates fast recovery mode port Ports can be set to 10 priorities. Only the port with the highest priority will be the active port. 1st Priority is the highest. Apply Click to activate the configurations 5.1.1.7... - Page 34 IES-3082GC User Manual Label Description You must enable or disable RSTP function before configuring RSTP mode related parameters A value used to identify the root bridge. The bridge with the Priority (0-61440) lowest value has the highest priority and is selected as the root.
- Page 35 IES-3082GC User Manual Label Description The cost of the path to the other bridge. The range of valid values is 1 to Path Cost 200000000. (1-200000000) Configures the priority of the ports to be blocked in the LAN. The range of Port Priority valid values is 0 to 240.
-
Page 36: Mstp
IES-3082GC User Manual STP mathematic calculation. False includes the STP mathematic calculation. Click to activate the configurations Apply 5.1.1.8 MSTP Multiple Spanning Tree Protocol (MSTP) is a standard protocol base on IEEE 802.1s. The function allows several VLANs to be mapped to a reduced number of spanning tree instances because most networks only need a few logical topologies. - Page 37 IES-3082GC User Manual Label Description MSTP Enable You must enable or disable MSTP function before configuring related parameters. Force Version The parameter can be used to force a VLAN bridge that supports RSTP to operate in an STP-compatible manner. Configuration Name The same MST region must have the same MST configuration name.
- Page 38 IES-3082GC User Manual Label Description Port No. Selects the port you want to configure Priority (0-240) Configures the priority of the ports to be blocked in the LAN. Enter a number 0 through 240. The value of priority must be the multiple...
- Page 39 IES-3082GC User Manual Label Description Instance Sets the instance from 1 to 15 State Enables or disables the instance VLANs Sets which VLAN will belong which instance Proprietary (0-61440) A value used to identify the root bridge. The bridge with the lowest value has the highest priority and is selected as the root.
-
Page 40: Multicast
IES-3082GC User Manual 5.1.2 Multicast 5.1.2.1 IGMP Snooping Internet Group Management Protocol (IGMP) is used by IP hosts to register their dynamic multicast group membership. IGMP has 3 versions, IGMP v1, v2 and v3. Please refer to RFC 1112, 2236 and 3376. IGMP snooping improves the performance of networks that carry multicast traffic. -
Page 41: Mvr
IES-3082GC User Manual 5.1.2.2 MVR allows different VLAN users to receive VLAN Multicast packets in MVR mode. Label Description Enables or disables MVR mode MVR Mode Sets MVR VLAN MVR VLAN Sets port type to inactive, Receiver, or Source TYPE... -
Page 42: Port Setting
IES-3082GC User Manual Label Description Assigns a multicast group IP address in the range of 224.0.0.0 IP Address ~ 239.255.255.255 Tick the check box beside the port number to include them as Member Ports the member ports in the specific multicast group IP address. -
Page 43: Port Status
IES-3082GC User Manual port. Thus only the frames with MAC addresses in the port security list will be forwarded, otherwise will be discarded. Auto Detect 100/1000 Automatically detects SFP port’s SFP module speed (100M / 1000M) Apply Click to activate the configurations. -
Page 44: Port Trunking
IES-3082GC User Manual Label Description Ingress Limit Frame Available values include all, Broadcast only, Type Broadcast/Multicast Broadcast/Multicast/Flooded Unicast Ingress Traffic received at the switch port Egress Traffic transmitted from the port Apply Click to activate the configurations 5.1.3.5 Port Trunking You can select static trunk or 802.3ad LACP to combine several physical links with a logical... - Page 45 IES-3082GC User Manual Label Description Selects the ports to join a trunk group Group ID Supports static trunk and 802.3ad LACP Type Selects the number of active ports in dynamic group (LACP). Work Port The default value is the maximum number of the group. If the number is not the maximum number of ports, the other inactive ports in dynamic group will be suspended (no traffic).
-
Page 46: Loop Guard
VLAN. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch. However, all the network devices are still plugged into the same switch physically. The IES-3082GC switch supports port-based and 802.1Q (tagged-based) VLAN. The default configuration of VLAN operation ORing Industrial Networking Corp. -
Page 47: Vlan Setting- Ieee 802.1Q
IES-3082GC User Manual 5.1.4.1 VLAN Setting- IEEE 802.1Q Tagged-based VLAN is an IEEE 802.1Q specification standard that can create a VLAN with devices provided by different switch vendors. IEEE 802.1Q VLAN will insert a “tag” which contains a VLAN Identifier (VID) for indicating VLAN numbers into the Ethernet frames. -
Page 48: Vlan Setting - Port Based
IES-3082GC User Manual you to group ports by applying the same VID to 2 or more switches. Hybrid Link: Both Access Link and Trunk Link are available. Hybrid (QinQ) Link: enables QinQ mode, allowing you to insert one more VLAN tags in an original VLAN frame. -
Page 49: Traffic Prioritization
IES-3082GC User Manual Label Description VLAN name. Group Name Specifies the VLAN ID VLAN ID Selects ports to join the VLAN group Removes ports from the VLAN group Remove Click to set the configurations. Apply Shows help file Help 5.1.5 Traffic Prioritization Traffic prioritization includes three modes: port base, 802.1p/COS, and TOS/DSCP. -
Page 50: Port-Base Priority
IES-3082GC User Manual Label Description Port-base: output priority is determined by ingress port. QOS Mode COS only: output priority is determined by COS only. TOS only: output priority is determined by TOS only. COS first: output priority is determined by COS and TOS, but COS first. -
Page 51: Cos/802.1P
IES-3082GC User Manual Click to activate the configurations Apply Shows help file Help 5.1.5.3 COS/802.1p Known as 802.1p, CoS (Class of Service) will prioritize the COS/802.1p output of a packet by the setting in 802.1Q VLAN tag. The priority value ranges from 0 to 7. CoS value maps to 4 priority queues: High, Middle, Low, and Lowest. -
Page 52: Tos/Dscp
IES-3082GC User Manual 5.1.5.4 TOS/DSCP ToS (Type of Service) is a field in the IP header of a packet. TOS/DSCP This ToS field is also used by Differentiated Services and is thus called Differentiated Services Code Point (DSCP). The output priority of a packet can be determined by this field and the priority value ranges from 0 to 63. -
Page 53: Dhcp Server - Client List
IES-3082GC User Manual Label Description Enables or disables the DHCP server function. When enabled, the DHCP Server switch will be the DHCP server on your local network. The dynamic assignment range of IP addresses. The start IP address Start IP Address will be the smallest value. -
Page 54: Dhcp Server -Dhcp Relay Agent
IES-3082GC User Manual 5.1.6.4 DHCP Server –DHCP Relay Agent The DHCP relay agent relays DHCP messages between clients and servers on different subnet domains. DHCP relay agent use Option 82 to insert specific information into a request that is being forwarded to a DHCP server, and removes the specific information from a reply packet according to Option 82 when forwarding server DHCP packets to a DHCP client. -
Page 55: Snmp
IES-3082GC User Manual Encodes an agent-local identifier of the circuit from which a DHCP DHCP Option 82 client-to-server packet is received. It is intended for use by agents in Circuit-ID Table relaying DHCP responses back to the proper circuit. Click to activate the configurations. -
Page 56: Snmp -Trap Setting
IES-3082GC User Manual Community community string/privilege are supported. Each community string can support up to 32 characters. Leave the setting to empty to remove this community string. Apply Click to activate the configurations Help Shows help file 5.1.7.2 SNMP –Trap Setting A trap manager is a management station that receives traps. -
Page 57: Snmpv3
IES-3082GC User Manual 5.1.7.3 SNMPV3 ORing Industrial Networking Corp. -
Page 58: Security
IES-3082GC User Manual Label Description Configures SNMP v3. Assigns the context name of a context Context Table table. Click Apply to change the context name. User ID: sets up the user name. User Table Authentication Password: sets up the authentication password. -
Page 59: Management Security
IES-3082GC User Manual 5.1.8.1 Management Security Only the IP address in the secure IP list can manage the switch through your defined management mode (WEB, Telnet, SNMP). Label Description Enables and disables the IP security function IP security MODE Checks to enable WEB management... -
Page 60: Mac Blacklist
IES-3082GC User Manual Label Description Inputs MAC address to a specific port MAC Address Selects ports Port NO. Adds an entry of MAC address and port information Deletes entry Delete Shows help file Help 5.1.8.3 MAC Blacklist MAC blacklist can stop traffic from being forwarded to specific MAC addresses in the list. Any frames forwarded to the MAC addresses in this list will be discarded. - Page 61 IES-3082GC User Manual Label Description Inputs MAC address to MAC blacklist MAC Address Selects ports Port NO. Adds an entry to blacklist table Deletes entry Delete Shows help file Help 5.1.8.4 802.1x 802.1x - Radius Server 802.1x uses the physical access characteristics of the IEEE802 LAN infrastructure to authorize devices attached to a LAN port.
- Page 62 IES-3082GC User Manual Label Description Enables or disables 802.1X Radius server 802.1x Protocol Shows the IP address of the authentication server Radius Server IP Configures UDP port number used by the authentication server for Server port authentication Configures UDP destination port for accounting requests to the...
-
Page 63: Ip Guard
IES-3082GC User Manual Label Description Reject: force this port to be unauthorized. Port Authorized Mode Accept: force this port to be authorized. Authorize: the state of this port is determined by the outcome of the 802.1x authentication. Disable: this port will not participate in 802.1x... - Page 64 IES-3082GC User Manual Label Description Disabled: IP Guard is disabled Mode Monitor: IP Guard is disabled, but IP traffic will be monitored constantly. Security: IP Guard is enabled and illegal IP traffic will be blocked. Click to activate the configurations.
- Page 65 IES-3082GC User Manual IP Guard – Super-IP List This page allows you to configure the IP Guard Super-IP list. Super-IP entry has a special priority; the IP has no limitation on MAC address and port binding. Any IP traffic is allowed as long as the IP is in the Super-IP list.
-
Page 66: Warning
IES-3082GC User Manual 5.1.9 Warning Warning function is very important for managing switches. You can manage a switch by SYSLOG, email, and fault relay. It helps you to monitor switch status on a remote site. When events occur, a warning message will be sent to your appointed server via email or the faulty relay function. - Page 67 IES-3082GC User Manual Label Description Disable: disables SYSLOG. SYSLOG Mode Client Only: logs to a local system Server Only: logs to a remote SYSLOG server Both: logs to both the local and remote servers IP address of the remote SYSLOG server...
-
Page 68: Monitor And Diag
IES-3082GC User Manual The recipient's email address. Up to six recipients are Recipient E-mail Address supported in a mail. Click to activate the configurations Apply Shows help file Help System Warning – Event Selection SYSLOG and SMTP are the two warning methods supported by the system. Check the corresponding box to enable the warning you want. -
Page 69: Mac Address Table
IES-3082GC User Manual Label Description Page Selects LOG page Reload Renews to show the newest event logs Clear Clear log Help Shows help file 5.1.10.2 MAC Address Table address table (Filtering Database) supports queries by the forwarding process, as to whether a... -
Page 70: Port Overview
IES-3082GC User Manual Label Description Port NO. : Shows all MAC addresses mapped to a selected port in the table Flush MAC Table Clears all MAC addresses in the table MAC Address Aging Time Assigns aging time; the value MUST be multiple of 15. - Page 71 IES-3082GC User Manual Label Description The lower 32-bits of the 64-bit InGoodOctets counter. The sum of InGoodOctetsLo lengths of all good Ethernet frames received, that is frames that are not bad frames. The upper 32-bits of the 64-bit InGoodOctets counter. The sum of...
- Page 72 IES-3082GC User Manual Total frames received (and/or transmitted) with a length of exactly Octets64 64 octes, include those with errors. Total frames received (and/or transmitted) with a length of Octets127 between 65 and 127 octes in clusive, including those with error.
-
Page 73: Port Monitoring
IES-3082GC User Manual with a invalid FCS. Total frames received with a length of more than MaxSize octets Oversize but with a valid FCS. Total frames received with a length of more than MaxSize octets Jabber but with an invalid FCS. -
Page 74: Traffic Monitor
IES-3082GC User Manual The frames sent to the switch port The frames receive at the switch port Apply Click to activate the configurations. Clear Clear all marked blank (disable the function) Help Shows help file 5.1.10.6 Traffic Monitor The function allows you to monitor switch traffic. If traffic is too large, the switch will sent SYSLOG events or SMTP mails. -
Page 75: Ping
IES-3082GC User Manual Label Description Warning Temperature Sets warning temperature Event Alarm Selects warning method (SYSLOG or SMTP) 5.1.10.8 Ping This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues Label Description IP Address Enter the IP address you want to detect... -
Page 76: System Reboot
IES-3082GC User Manual 5.1.13 System Reboot You can reset the stack switch on this page. After reset, the system will boot normally as if you have powered on the devices ORing Industrial Networking Corp. -
Page 77: Command Line Interface Management
IES-3082GC User Manual ommand Line Interface Management About CLI Management Besides Web-based management, the switch also supports CLI management. You can use console or telnet to manage the switch by CLI. CLI Management by RS-232 Serial Console (9600, 8, none, 1, none) Before configuring RS-232 serial console, connect the RS-232 port of the switch to your PC Com port using a RJ45 to DB9-F cable. - Page 78 IES-3082GC User Manual Step 2. Input a name for new connection Step 3. Select a COM port in the drop-down list ORing Industrial Networking Corp.
- Page 79 IES-3082GC User Manual Step 4. A pop-up window that indicates COM port properties appears, including bits per second, data bits, parity, stop bits, and flow control. Step 5. The console login screen will appear. Use the keyboard to enter the Username and Password (same as the password for Web browsers), then press Enter.
- Page 80 IES-3082GC User Manual Users can use TELNET to configure the switches. The default value is as below: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin Follow the steps below to access the console via Telnet.
- Page 81 IES-3082GC User Manual Commands Level Modes Access Method Prompt Exit Method About This Model User EXEC Begin a session switch> Enter logout or The user command with your switch. quit. available at the level of user is the subset of those available at the privileged level.
-
Page 82: Command Set List-System Command Set
IES-3082GC User Manual Symbol of Command Level Mode Symbol of Command Level User EXEC Privileged EXEC Global configuration VLAN database Interface configuration Command Set List—System Command Set Commands Level Description Example show config Show switch configuration switch>show config show terminal... - Page 83 IES-3082GC User Manual admin username Changes a login username. switch(config)#admin [Username] (maximum 10 words) username xxxxxx admin password Specifies a password switch(config)#admin [Password] (maximum 10 words) password xxxxxx show admin Show administrator information switch#show admin dhcpserver enable Enable DHCP Server...
-
Page 84: Command Set List-Port Command Set
IES-3082GC User Manual security telnet Enable IP security of telnet server switch(config)#security telnet security ip Set the IP security list switch(config)#security ip 1 [Index(1..10)] [IP 192.168.1.55 Address] show security Show the information of IP security switch#show security no security Disable IP security function... - Page 85 IES-3082GC User Manual enable no security Disable security of interface switch(config)#interface fastEthernet 2 switch(config-if)#no security bandwidth type all Set interface ingress limit frame switch(config)#interface type to “accept all frame” fastEthernet 2 switch(config-if)#bandwidth type all bandwidth type Set interface ingress limit frame...
-
Page 86: Command Set List-Trunk Command Set
IES-3082GC User Manual state Use the state interface switch(config)#interface [Enable | Disable] configuration command to specify fastEthernet 2 the state mode of operation for switch(config-if)#state Ethernet ports. Use the disable Disable form of this command to disable the port. show interface... -
Page 87: Command Set List-Vlan Command Set
IES-3082GC User Manual workp [Port-list]:Member port list, This switch(config)#aggregator [Workport] parameter could be a port group 2 1,4,3 lacp workp 3 range(ex.1-4) or a port list separate by a comma(ex.2, 3, 6) [Workport]: The amount of work ports, this value could not be less than zero or be large than the amount of member ports. - Page 88 IES-3082GC User Manual [UntaggedVID] applied. vlan 8021q port Assign a trunk link for VLAN by switch(vlan)#vlan 8021q [PortNumber] port, if the port belong to a trunk port 3 trunk-link tag 2,3,6,99 trunk-link tag group, this command can’t be [TaggedVID List] applied.
-
Page 89: Command Set List-Spanning Tree Command Set
IES-3082GC User Manual Command Set List—Spanning Tree Command Set Commands Level Description Example spanning-tree Enable spanning tree switch(config)#spanning-tre enable e enable spanning-tree Configure spanning tree priority switch(config)#spanning-tre priority [0to61440] parameter e priority 32767 spanning-tree Use the spanning-tree max-age switch(config)# max-age... -
Page 90: Command Set List-Qos Command Set
IES-3082GC User Manual the forwarding state. stp-path-priority Use the spanning-tree port-priority switch(config)#interface [Port Priority] interface configuration command to fastEthernet 2 configure a port priority that switch(config-if)# is used when two switches tie for stp-path-priority 127 position as the root switch. -
Page 91: Command Set List-Igmp Command Set
IES-3082GC User Manual high] qos priority cos Configure COS Priority switch(config)#qos priority [Priority][lowest|low cos 22 middle |middle|high] qos priority tos Configure TOS Priority switch(config)#qos priority [Priority][lowest|low tos 3 high |middle|high] show qos Display the information of QoS switch>show qos configuration... -
Page 92: Command Set List-Snmp Command Set
IES-3082GC User Manual [MAC] 000012348678 show Show all MAC address table switch#show mac-address-table mac-address-table show Show static MAC address table switch#show mac-address-table mac-address-table static static show Show filter MAC address table. switch#show mac-address-table mac-address-table filter filter Remove an entry of MAC address... -
Page 93: Command Set List-Port Mirroring Command Set
IES-3082GC User Manual [Community-string] right RO right [RO|RW] switch(config)#snmp community-strings public right RW snmp snmpv3-user Configure the userprofile for switch(config)#snmp [User Name] SNMPV3 agent. Privacy password snmpv3-user test01 password could be empty. password AuthPW PrivPW [Authentication Password] [Privacy Password] show snmp... -
Page 94: Command Set List-802.1X Command Set
IES-3082GC User Manual monitor Configure source port of monitor switch(config)#interface [RX|TX|Both] function fastEthernet 2 switch(config-if)#monitor RX show monitor Show port monitor information switch(config)#interface fastEthernet 2 switch(config-if)#show monitor no monitor Disable source port of monitor switch(config)#interface function fastEthernet 2 switch(config-if)#no monitor 6.12 Command Set List—802.1x Command Set... -
Page 95: Command Set List-Tftp Command Set
IES-3082GC User Manual 8021x misc Use the 802.1x misc quiet period switch(config)# 8021x misc quietperiod global configuration command to quietperiod 10 [sec.] specify the quiet period value of the switch. 8021x misc txperiod Use the 802.1x misc TX period switch(config)# 8021x misc [sec.]... -
Page 96: Command Set List-Syslog, Smtp, Event Command Set
IES-3082GC User Manual flash:backup_cfg need to specify the IP of TFTP flash:backup_cfg server and the file name of image. restore Get configuration from TFTP server switch(config)#restore flash:restore_cfg and need to specify the IP of TFTP flash:restore_cfg server and the file name of image. - Page 97 IES-3082GC User Manual device-cold-start device-cold-start both [Systemlog|SMTP|B oth] event Set Authentication failure event switch(config)#event authentication-failur type authentication-failure both [Systemlog|SMTP|B oth] event Set s ring topology changed event switch(config)#event O-Ring-topology-ch type ring-topology-change both ange [Systemlog|SMTP|B oth] event systemlog Set port event for system log...
-
Page 98: Command Set List-Sntp Command Set
IES-3082GC User Manual switch(config-if)#no event smtp show systemlog Show system log client & server switch#show systemlog information 6.15 Command Set List—SNTP Command Set Commands Level Description Example sntp enable Enable SNTP function switch(config)#sntp enable sntp daylight Enable daylight saving time, if... -
Page 99: Command Set List-O-Ring Command Set
IES-3082GC User Manual 6.16 Command Set List—O-Ring Command Set Commands Level Description Example Ring enable Enable O-Ring switch(config)# ring enable Ring master Enable ring master switch(config)# ring master Ring couplering Enable couple ring switch(config)# ring couplering Ring dualhoming Enable dual homing... -
Page 100: T Echnical Specifications
IES-3082GC User Manual echnical Specifications IES-3082GC ORing Switch Model Physical Ports 10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX Gigabit Combo Ports with 10/100/1000Base-T(X) 100/1000Base-X SFP port Technology IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T... - Page 101 IES-3082GC User Manual Event selection support DDM Function Voltage / Current / Temperature RS-232 Serial Console Port RS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1 LED indicators Power Green : Power LED x 3 O-Ring Indicator Green : Indicate system operated in O-Ring mode R.M.
