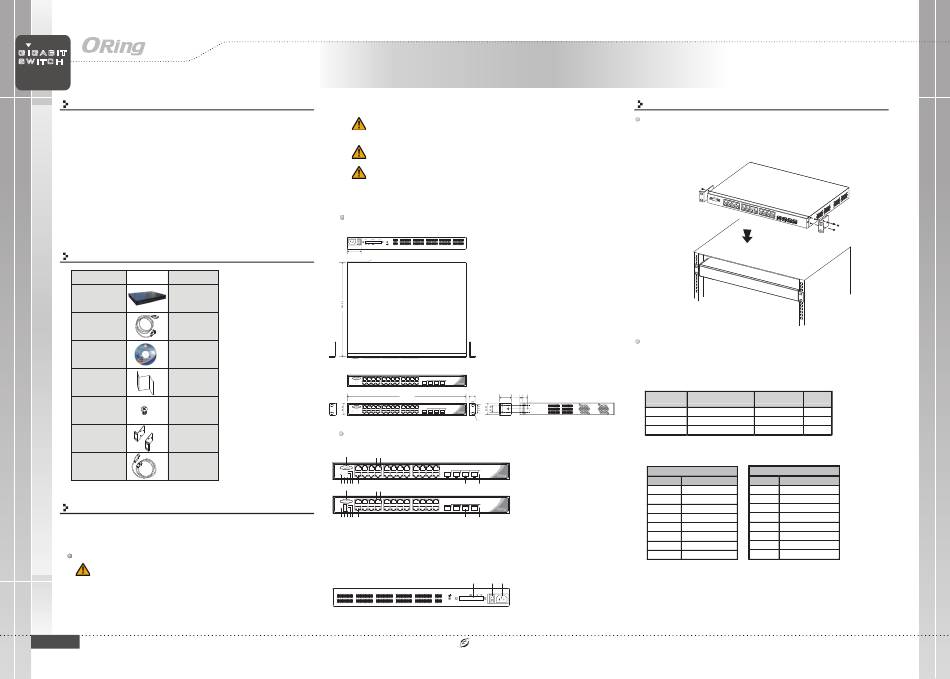

ORiNG RGS-9244GP Series Quick Installation Manual

GIGABIT
SWITCH
Q I
M A N A G E D
uick nstallation
Rack-Mount

Introduction

The RGS-9244GP series which consist of
E, are rack-mount Ethernet switches with twenty-four 10/100/1000BaseT(X)
Ethernet ports and four 100/1000Base-X SFP ports. The
an enhanced model with dual DC inputs and relay output. With complete
support for Ethernet redundancy protocols such as O-Ring (recovery time <
30ms over 250 units of connection), O-Chain, MRP
and MSTP (RSTP/STP compatible), the switch can protect your mission-
critical applications from network interruptions or temporary malfunctions
with its fast recovery technology. Featuring a wide operating temperature
o o
from -40 C to 75 C, the device can be managed centrally and conveniently
v i a O p e n - Vi s i o n u t i l i t y, w e b b r o w s e r s , Te l n e t a n d c o n s o l e ( C L I )
configuration, making it to be one of the most reliable choice for highly-
managed and Fiber Ethernet application.
*NOTE: This function is available by request only

Package Contents

Contents Pictures Number
RGS-9244GP or
X 1
RGS-9244GP-E
X 1
Console Cable
X 1
CD
X 1
QIG
Screw (M4 X6) X 6
Rack-mounted
X 1
kit (L&R)
Power cord X 1

Preparation

Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Q I G
RGS-9244GP Series
RGS-9244GP Series
G
uide
RGS-9244GP , and RGS-9244GP- Reduced Air Flow: Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not
compromised.
RGS-9244GP-E is
Mechanical Loading: Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
, Fast Recovery,
*NOTE
Circuit Overloading: Consideration should be given to the connection of the equipment
to the supply circuit and the effect that overloading of the circuits might have on
overcurrent protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.

Dimension

49.0
G2 G4 G6 G8 G10
Console
P3 Fault
Reset P2 R.M.
P1 Ring
G1 G3 G5 G7 G9
Console G2 G4 G6 G8 G10
Fault
R.M.
Reset
PWR Ring
G1 G3 G5 G7 G9

Panel Layouts

1
8 9
G2 G4 G6 G8
Console
Fault
R.M.
Reset
PWR Ring
G1 G3 G5 G7
2 3 4 5 6 7
1
8 9
G2 G4 G6 G8
Console
P3 Fault
Reset P2 R.M.
P1 Ring
G1 G3 G5 G7
2 3 4 5 6 7
1. Console port
2. Reset button
3. Power indicator
4. Ring status LED
5. RM status LED
6. Fault indicator
1907-2-29-RGS9244GP-1.2
Unit =mm (Tolerance ±0.5mm)
G12 G14 G16 G18 G20 G22 G24
10/100/ RGS-9244GP-E
1000T
LINK/ACT
100/1000X
G11 G13 G15 G17 G19 G21 G23 G25 G26 G27 G28
25.40
35.0 8.00 20.00
431.00
4.0
G12 G14 G16 G18 G20 G22 G24
10/100/ RGS-9244GP
1000T
LINK/ACT
100/1000X
G11 G13 G15 G17 G19 G21 G23 G25 G26 G27 G28
Ø6.5
Front View
G10 G12 G14 G16 G18 G20 G22 G24
10/100/ RGS-R9244GP+
1000T
LINK/ACT
10G SFP+
G9 G11 G13 G15 G17 G19 G21 G23 G25 G26 G27 G28
10 11
G10 G12 G14 G16 G18 G20 G22 G24
RGS-9244GP-E
10/100/
1000T
LINK/ACT
100/1000X
G9 G11 G13 G15 G17 G19 G21 G23 G25 G26 G27 G28
10 11
7. LAN ports
8. LED for Ethernet ports LNK/ACT status
9. LED for Ethernet ports speed indicator
10. SFP ports
11. LNK/ACT LED for SFP ports
Rear View
3 1 2
1. Power switch
V+ V-
2. AC power input (100V~240V
PW2 1A@24V PW3 / 50~60Hz)
DC Power 36V~72V
AC 100-240V 50-60Hz
3. Dual DC power inputs
(RGS-9244GP-E Only)
PRINTED ON RECYCLED PAPER
Managed Gigabit Ethernet Switch

Installation

Rack-mounting

Step 1: Install left and right front mounting brackets to the switch using three screws on each side.
Step 2: With front brackets orientated in front of the rack, fasten the brackets to the rack using two
more screws.

Network Connection

The series have standard Ethernet ports. According to the link type, the switch uses CAT 3, 4,
5,5e UTP cables to connect to any other network devices (PCs, servers, switches, routers, or
hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications:
Cable Type Max. Length Connector
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) RJ-45
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft) RJ-45
1000BASE-T Cat. 5 / Cat. 5e 100-ohm UTP UTP 100 m (328 ft) RJ-45
For pin assignments for different types of cables, please refer to the following tables.
10/100Base-T(X) RJ-45
1000Base-T RJ-45
Pin Number Assignment
Pin Number Assignment
1 TD+
1 BI_DA+
2 BI_DA- 2 TD-
3 BI_DB+ 3 RD+
4 BI_DC+ 4 Not used
5 BI_DC- 5 Not used
6 RD-
6 BI_DB-
7 BI_DD+ 7 Not used
8 BI_DD- 8 Not used
Quick Installation Guide
Version 1.2
