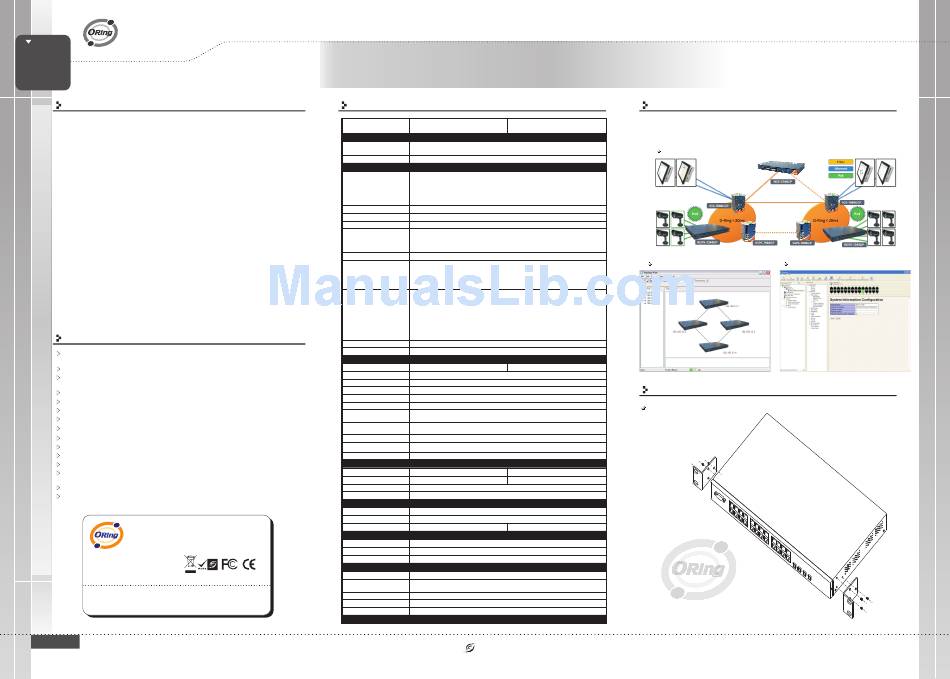

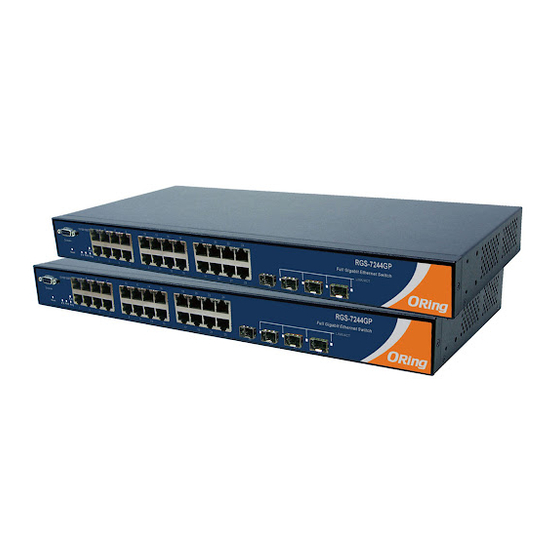

ORiNG RGPS-7244GP-P Quick Installation Manual

ORing Industrial Networking Corp.
GIGABIT
PoE
SWITCH
Q I
uick nstallation
M A N A G E D
Rack-Mount

Introduction

RGPS-7244GP series is managed Redundant Ring Ethernet switch with
24x10/100/1000Base-T(X) ports with PoE (P.S.E.) function and 4x1000Base-X SFP
ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery
time < 20ms over 250 units of connection), MSTP/RSTP/STP (IEEE 802.1 s/w/D) can
protect your mission-critical applications from network interruptions or temporary
malfunctions with its fast recovery technology. ORing's thunder switch series
provide advanced IP-based bandwidth management which can limit the maximum
bandwidth for each IP device. User can configure IP camera and NVR with more
bandwidth and limit other device bandwidth. ORing's thunder switch series also
support application-based QoS. Application-based QoS can set highest priority for
data stream according to TCP/UDP port number.
can only permit allowed IP address with MAC address to access the networking.
Hacker cannot access the IP surveillance network without permission. It can avoid
hacker from stealing video privacy data and attacking IP camera, NVR and
controllers. ORing's thunder series switch also provided advanced DOS/DDOS
auto prevention. If there is any IP flow become big in short time, ORing's thunder
switch will lock the source IP address for certain time to prevent the attack. It's
hardware based prevention so it can prevent DOS/DDOS attack immediately and
completely. RGPS-7244GP series also support Power over Ethernet, a system to
transmit electrical power up to 30 watts, along with data, to remote devices over
standard twisted-pair cable in an Ethernet network.
switch has 24X10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports.
P.S.E. is a device (switch or hub for instance) that will provide power in a PoE
connection. All function of RGPS-7244GP series
convenient by a powerful windows utility : Open-Vision v3.0 or above.
these switches are one of the most reliable choice for highly-managed and Gigabit
Fiber Ethernet application with PoE function.

Features

Supports O-Ring (recovery time < 20ms over 250 units of connection),
MSTP/RSTP/STP (IEEE 802.1s/w/D) for Ethernet Redundancy
Support Jumbo frame up to 9K Bytes
24 ports Base-T(X) P.S.E. fully compliant with IEEE802.3at standard, provide
up to 30 Watts per port
Power supply included (RGPS-7244GP-P model only)
Supports IP-based bandwidth management
Supports application-based QoS management
Supports IP police security function
Supports DOS/DDOS auto prevention
)
IGMP v2/v3 (IGMP snooping support for filtering multicast traffic
Supports SNMP v1/v2c/v3, RMON and 802.1Q VLAN Network Management
Support ACL, 802.1x User Authentication for security
Multiple notification for warning of unexpected event
Windows utility (Open-Vision) support centralized management and configurable
by Web-based interface, Telnet and Console(CLI)
Support LLDP Protocol
19 inches rack mounted design
ORing Industrial Networking Corp.
Copyright© 2010 Oring
All rights reserved.
TEL: +886-2-2918-3036 Website: www.oring-networking.com
FAX: +886-2-2918-3084 E-mail: support@oring-networking.com
Q I G
RGPS-7244GP/-P
RGPS-7244GP/-P
G
uide

Specifications

ORing Switch Model

Physical Ports

10/100/1000 Base-T(X) P.S.E. Ports
in RJ45 Auto MDI/MDIX
1000Base-X SFP port

Technology

Ethernet Standards
ORing's special IP police function
MAC Table
Priority Queues
Processing
Switch Properties
Jumbo frame
Each RGPS-7244GP series

Security Features

can be managed centralized and
Therefore,

Software Features

Network Redundancy

RS-232 Serial Console Port

LED Indicators

Power indicator (PWR)
System ready indicator (STA)
R.M. indicator (R.M)
O-Ring indicator (Ring)
Sysem runnig indicator (RUN)
Remote Management indicator (RMT)
Reset To Default indicator
(DEF)
Ping Reguest indicator (Ping)
PoE indicator
10/100/1000 Base-T(X) RJ45
Port indicator
1000Base-X SFP Port indicator
Power
Input power
Power supply
Power consumption(Typ.)
Overload current protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory Approvals
EMI
EMS
Shock
Free Fall
Vibration
Warranty
1907-2-29-RGPS7244GP
RGPS-7244GP RGPS-7244GP-P
24
4
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3ab for 1000Base-T
IEEE 802.z for 1000Base-X, IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol ), IEEE 802.1p for COS(Class of Service)
IEEE 802.1Q for VLAN Tagging, IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning tree Protocol)
IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
8K
4
Store-and-Forward
Switching lateency: 7 us
Switching bandwidth: 56Gbps
Max. Number of Available VLANs: 256
IGMP multicast groups: 128 for each VLAN
Port rate limiting: User Define
Up to 9K Bytes
IP Police security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 20ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping
IP-based bandwidth-management
Application-based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Client/Server
O-Ring, STP, RSTP, MSTP
RS-232 in DB9 connector with console cable. 115200bps, 8, N, 1
Green: For DC power indicator Green: For AC power indicator
Green : Indicate system ready. Blinking for system is upgrading firmware.
Green: indicate system operated in Ring Master mode
Green: Indicate system operated in O-Ring mode Blinking to indicate Ring is broken.
Green : System operated continuously
Green : System is accessed remotely
Green : System reset to default configuration
Green : System is processing "PING" request
Green for P.S.E. power output indicator
Two color LED : Green for Link/Act indicator.
Green for port Link/Act.
One 50 ~ 57VDC power inputs at terminal block One 100~240VAC with power cord
NOT included Included
36 Watts (Typ.), 756W(24 ports with 30W P.D. full loaded)
Present
19 inches rack mountable
431(W) x 342 (D) x 44 (H) mm (16.97x13.46x1.73 inch)
3.8 Kg 5.7 Kg
o o
-40 to 85 C (-40 to 185 F)
-40 to 70 C (-40 to 158 F) o o
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
2 years
PRINTED ON RECYCLED PAPER
Managed Gigabit PoE Ethernet Switch
Open-Vision
ORing's switches are intelligent switches. Different form other traditional redundant
switches, ORing provides a set of Windows utility (Open-Vision v3.0 or above) for user
to manage and monitor all of industrial Ethernet switches on the industrial network.
Network connection
Topology View Monitoring and Configuration interface

Installation

Rack-mounted Install Step

Quick Installation Guide
Version 1.0
