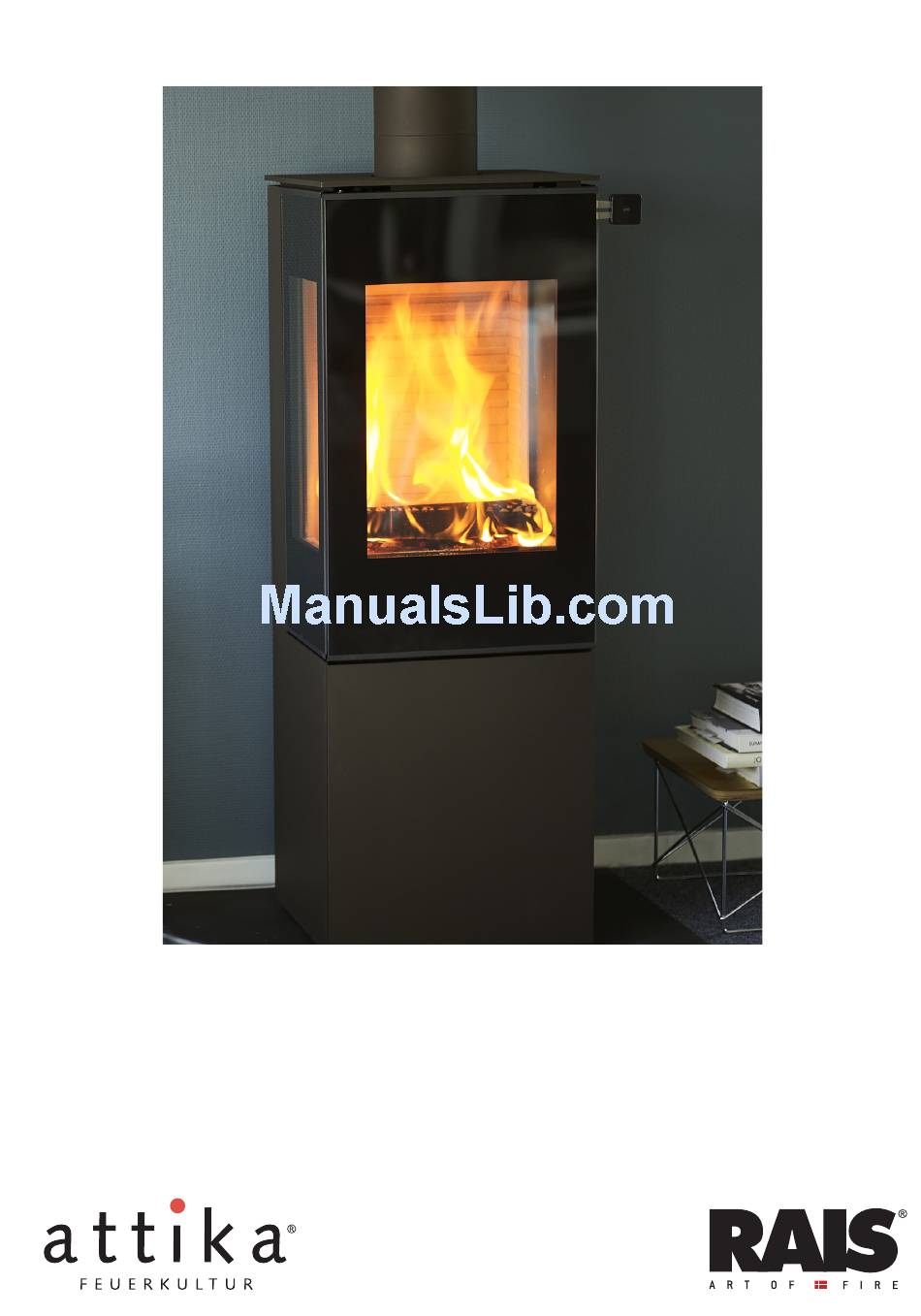

  • Page 1 N E X O B R U G E R M A N U A L B E D I E N U N G S A N L E I T U N G U S E R M A N U A L M A N U E L D ’...
  • Page 2 Foyer à durèe de combustion limitèe, homologué pour cheminée à connexions multiples. Utiliser seulement les combustibles recommandés. Hergestellt für /Produced for: ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn 15a B-VG VKF-NR: Typ FC...
  • Page 3 - User manual for VIVA L Nexo 100 Sideglas - Manuel, Nexo 100 Sideglas - Clever Air Nexo 100 Classic Side glass - Manual, Nexo 100 Classic Side glass - Clever Air Nexo -120 Sideglas – Manuel, Nexo -120 Sideglas - Clever Air Nexo 120 Classic Side glass –...
  • Page 4 English RAIS/ - User manual for VIVA L Indstilling af spjæld Einstellung der Luftklappe Adjustment of the air damper Réglage du volet d’air Innstilling av spjeld Indställing af spjället Pellin säätäminen Instellen van de luchtklep Position 1 Opstarts indstilling...
  • Page 5 English RAIS/ – User manual for Nexo FIRE ENVIRONMENTALLY FRIENDLY! 5 Eco-friendly advices for sensible heating - common sense both environmentally and economically. 1. Effective lighting. Use small pieces of wood (fir tree) and a suit- able fire lighter, for example paraffined wood wool/sawdust.

  • Page 6: Table Of Contents

    English RAIS/ – User manual for Nexo Revision : Date 20-06-2018 INTRODUCTION ........................7 WARRANTY ..........................8 SPECIFICATIONS .......................... 9 DISTANCE/MEASUREMENT ....................... 10 CONVECTION ........................... 11 CHIMNEY ..........................11 SHARED FLUE ........................... 12 INSTALLATION ........................13 INSTALLATION OF STOVE WITH SWIVEL BASE ................14 CHANGES TO CHIMNEY CONNECTION ..................

  • Page 7: Introduction

    English RAIS/ – User manual for Nexo Introduction Thank you for purchasing a RAIS/attika wood burning stove. These appliances have been approved by SCA/HETAS Ltd as intermittent operating appliances for burning wood logs only. attika A RAIS/ wood burning stove is more than just a heat source. It also shows that you care about design and quality in your home.

  • Page 8: Warranty

    In the event of repair, we ensure proper and professional execution. Warranty claims submitted for additionally delivered or repaired parts are subject to national/EU laws and regulations in terms of renewed warranty periods. Please contact RAIS A/S for the applicable warranty provisions.

  • Page 9: Specifications

    English RAIS/ – User manual for Nexo Specifications DTI Ref.: 300-ELAB-2324-EN NEXO 100 NEXO 120 300-ELAB-2324-NS NEXO 100 Side glass NEXO 120 Side glass Nominal output (kW): Min./Max. output (kW): 5.0–5.7 5.0–5.7 Heating area (m Stove width/depth/height (mm): 446-398-1025...

  • Page 10: Distance/Measurement

    English RAIS/ – User manual for Nexo Distances/dimensions See dimension drawings at the back of the manual. Distance from floor to flue outlet, top Distance from floor to centre flue outlet, back Distance from back side to air intake, bottom (Air-System)

  • Page 11: Convection

    If the recommended chimney draught cannot be achieved, problems may occur with smoke coming out of the door when heating. RAIS recommends that the chimney is adjusted to the flue collar. The length of the chimney, measured from the top of the stove, should not be shorter than 3 metres, and reach at least 80 cm above the build- ing’s roof ridge.

  • Page 12: Shared Flue

    English RAIS/ – User manual for Nexo Shared flue. Chimney...

  • Page 13: Installation

    The stove is placed on non-combustible material and is free standing on the floor. The stove may only be installed by an authorised/qualified RAIS dealer/installer other- wise the warranty is invalidated. When installing the stove, all local rules and regulations, including those referring to national and European standards, must be followed.

  • Page 14: Installation Of Stove With Swivel Base

    D M Y Corrections: Change order Designer: Project man Drawing change: Improvement proposal: Established: NOTE: 06-04-2018 The stove may only be installed by an autho- rised/qualified RAIS dealer/installer. Bend Tool: See www.rais.com for a list of dealers.

  • Page 15: Changes To Chimney Connection

    English RAIS/ – User manual for Nexo Changes to chimney connection The stove is delivered ready for top outlet, but can be changed to back outlet in the following way: Sample photos Knock out the knock-out plate from the surround.
  • Page 16 English RAIS/ – User manual for Nexo Installation distance with non-combustible walls We recommend a minimum distance to non-combustible material of 50mm (F) with consideration to cleaning. It must always be possible to access the chimney cleanout door. Installation distance with combustible wall To find out whether the wall where you want to install the wood-burning stove is combustible, contact the building architect or local building authorities.

  • Page 17: Installation Distance To Combustible Walls

    English RAIS/ – User manual for Nexo Normal installation – right-angled Nexo Nexo Non-insulated flue insulated flue Distance to furniture (min.) in mm Minimum distance to fire walls. Section of fire wall to the side Section of fire wall in front where dimensions are not specified, follow the national/local provisions.
  • Page 18 English RAIS/ – User manual for Nexo Normal installation – right-angled Nexo with side glass Nexo with side glass Non-insulated flue insulated flue Distance to furniture (min.) in mm Minimum distance to fire wall. Section of fire wall to the side...

  • Page 19: Corner Installation 45

    English RAIS/ – User manual for Nexo Corner installation 45° Nexo Nexo Non-insulated flue insulated flue Distance to furniture (min.) in mm Minimum distance to fire walls. Section of fire wall to the side where dimensions are not specified, follow the national/local provisions.
  • Page 20 INDUSTRIVEJ 20, 9900 FREDER 0.5-3 30-120 6-30 400-1000 1000-2000 120-400     Phone +45 98 47 90 33 - Fax E-mail: info@rais.dk - Homep      TILLADTE AFVIGELSER FOR   0-10 10-5 TILLADTE AFVIGELSER FOR VINKELMÅL...

  • Page 21: 360° Swivel Base

    Corrections: Corrections: Phone +45 98 47 90 33 - Fax +45 98 47 92 91 Phone +45 98 47 90 33 - Fax +45 98 47 92 91 E-mail: info@rais.dk - Homepage: www.rais.dk E-mail: info@rais.dk - Homepage: www.rais.dk 45° 45°...

  • Page 22: Installation Distance To Non-Combustible Walls

    English RAIS/ – User manual for Nexo...
  • Page 23 English RAIS/ – User manual for Nexo For the Installer Finally before firing the stove for the first time a check should be made to ensure that the assembly and stove installation has been satisfactory and that there are no leaks in any seals in the appliance and appliance connections to the chimney.

  • Page 24: Fuel

    English RAIS/ – User manual for Nexo Fuel The stove has been tested in accordance with EN 13229:2001, EN 13229:2001/ A1:2003, EN 13229:2001/A2:2004, and NS 3058 for stoking split, dried birchwood, and is approved for broad-leaved/coniferous tree wood. The firewood must have a water content of 15-20 % and its max.

  • Page 25: Drying And Storage

    English RAIS/ – User manual for Nexo Drying and storage Wood needs time to dry. Proper air drying takes approximately 2 years. Here are some tips: • Store the wood sawn, split and stacked in an airy, sunny place, which must be protected against rain (the south side of the house is particularly suitable).

  • Page 26: Using The Stove With Cleverair™ Damper

    English RAIS/ – User manual for Nexo Using the stove with CleverAIR™ damper CleverAIR™ damper is regulated by a heat-sensitive bi-met- al that adjusts the damper according to the temperature of the bi-metal. As the user is not actively able to adjust the combustion air vol- ume.

  • Page 27: Installation Of Manual Damper

    English RAIS/ – User manual for Nexo Setting manual damper – there are three settings on the damper (see the illustration at the front of the man- ual) Position 1 Pull the handle all the way to the right.

  • Page 28: Control

    ’flicker’ in the air should be observed. When refuelling, open the door carefully to avoid smoke escaping. Stoke up with wood while the stove is burning. RAIS recommends adding 2-3 wood logs - approx. 1-1½ kg within 58 minutes (inter- mittent operation). PLEASE NOTE! Keep an eye on the stove when lighting.
  • Page 29 English RAIS/ – User manual for Nexo...

  • Page 30: Warning

    Advarsel attika English RAIS/ – User manual for Nexo Hvis brændet kun ulmer eller ryger, og der tilføres for lidt luft, udvikles der Hvis brændet kun ulmer eller ryger, og der tilføres for lidt luft, udvikles der Hvis brændet kun ulmer eller ryger, og der tilføres for lidt luft, udvikles der Warning!! uforbrændte røggasser.

  • Page 31: Riddling Grate And Ash Pan

    English RAIS/ – User manual for Nexo Ridling grate and ash pan The stove features a riddling grate to lead ashes into the ash pan. The ridling grate moves back and forth with the handle. PLEASE NOTE! Use gloves if the stove is hot.

  • Page 32: Cleaning And Care

    • Moisten a piece of paper or newspaper, dip it in the ash and rub the sooty glass. • Afterwards, rub with a piece of paper so the glass becomes clean. • Alternatively, use a glass cleaner, which you can obtain from your RAIS dealer. Clean the exterior using a soft, dry cloth or soft brush.

  • Page 33: Cleaning The Flue

    English RAIS/ – User manual for Nexo Cleaning the flue To access the flue, remove the vermiculite smoke deflector plate by removing the two locking pins and pulling the plate forwards so it can be lifted out. Remove the smoke detector plate by tilting it backwards and turning it at a slight angle.
  • Page 34 It is possible to compensate for a cold chimney or poor weather conditions by supplying the stove with more air than usual. If the issue persists, we recommend you contact your RAIS dealer or chimney sweep. WARNING! If incorrect or damp fuel is used, it may lead to excessive soot formation in the chimney and possibly to a chimney fire.

  • Page 35: Accessories

    English RAIS/ – User manual for Nexo Accessories (XX) Variable Colour code 10-0000-1501 – Swivel base 8131390 – Swivel base connection 99-MODULWS – 6KG heat accumulating stones 10-0000-240101XX – Small Topbox 10-0000-240201XX – Medium Topbox 10-0000-240301XX – Large Topbox...
  • Page 36 English RAIS/ – User manual for Nexo 10-0000-490101 – Glass floor plate 760 x 430 x 6 mm 10-0000-490201 – Glass floor plate 760 x 630 x 6 mm (for Germany) • 10-0000-1101 Handle – Stainless Steel • 10-0000-1102 Handle –...

  • Page 37: Spare Parts List

    RAIS/ – User manual for Nexo Spare parts list Nexo The use of spare parts other than those recommended by RAIS will invalidate the war- ranty. All replaceable parts can be purchased from your RAIS dealer as spare parts. See the spare parts drawing (at the back of the manual).
  • Page 38 – User manual for Nexo Spare parts list Nexo with side glass The use of spare parts other than those recommended by RAIS will invalidate the war- ranty. All replaceable parts can be purchased from your RAIS dealer as spare parts.

  • Page 39: Test Certificate

    Notificeret prøvningsorgan med ID-nr. 1235 Info@teknologisk.dk Prøvningsattest III Uddrag af rapport nr. 300-ELAB-2324-EN og 300-ELAB-2324-NS Emne: Rais Nexo 1025/1235 side glass (MAN/CA), Nexo 1025/1235 (MAN/CA), Nexo Classic 1025/1235 side glass (MAN/CA), Nexo Classic 1025/1235 (MAN/CA) Rekvirent: Rais A/S Industrivej 20, 9900 Frederikshavn Procedure: Prøvning efter DS/EN13240/A2:2004...
  • Page 40 English RAIS/ – User manual for Nexo...

  • Page 41: Declaration Of Performance

    English RAIS/ – User manual for Nexo Français...
  • Page 42 English RAIS/ – User manual for Nexo...
  • Page 43 Nexo 100...
  • Page 44 Nexo 120...
  • Page 45 Nexo 100 / 120...
  • Page 46 Nexo 100 / 120 Med sideglas...
  • Page 47 ATTIKA FEUER AG Brunnmatt 16 CH-6330 Cham Switzerland www.attika.ch RAIS A/S Industrivej 20 DK-9900 Frederikshavn Denmark www.rais.dk...
