- Page 1 R-600 INSTALLATIONSMANUAL (DK) INSTALLATIONSANLEITUNG (DE) INSTALLATION MANUAL (UK) MANUEL D’INSTALLATION (FR) INSTALLASJONSHÅNDBOK (NO) INSTALLATIONSMANUAL (SE) ASENNUSKÄSIKIRJA (FIN) INSTALLATIE HANDLEIDING (NL)
- Page 2 1 - EN...
-
Page 3: Table Of Contents
INSTALLATION MANUAL CONTENTS Installation manual In general Chimney Technical data Specifications Dimensional sketches Information plate Installation Delivery packaging Choice of material for installation Installation dimensions 600-1 Installation distance 600-1 Installation dimensions 600-2 Installation distance 600-2 Installation dimensions 600-3 Installation distance 600-3 Adjustable feet Service hatch... -
Page 4: In General
The fireplace insert must be positioned at a Congratulations on the acquisition of your safe distance from flammable material. Due to new RAIS or ATTIKA product! This installation the risk of fire, flammable items (e.g. furniture) manual will ensure that your fireplace insert is... -
Page 5: Technical Data
TECHNICAL DATA SPECIFICATIONS Danish Technological Institute ref.: 300-ELAB-2431-EN RAIS 600-1 RAIS 600-2 RAIS 600-3 Nominal output (kW) Min./max. output (kW) 4 - 8 * 4 - 8 * 4 - 8 * Heating area (m Fireplace insert width/depth/height (mm) 720 X 402 X 610... -
Page 6: Dimensional Sketches
DIMENSIONAL SKETCHES 600-1 11-0000-6550 R600 Front model, Glass * AirSystem ** Interior dimensions All dimensions are in mm. 5 - EN... - Page 7 DIMENSIONAL SKETCHES 600-2 (right) 264,5 404,5 699 ** 11-0000-6552 R600 Right model, Glass * AirSystem ** Interior dimensions All dimensions are in mm. EN - 6...
- Page 8 DIMENSIONAL SKETCHES 600-2 (left) 264,5 404,5 699 ** 11-0000-6554 R600 Left model, Classic * AirSystem ** Interior dimensions All dimensions are in mm. 7 - EN...

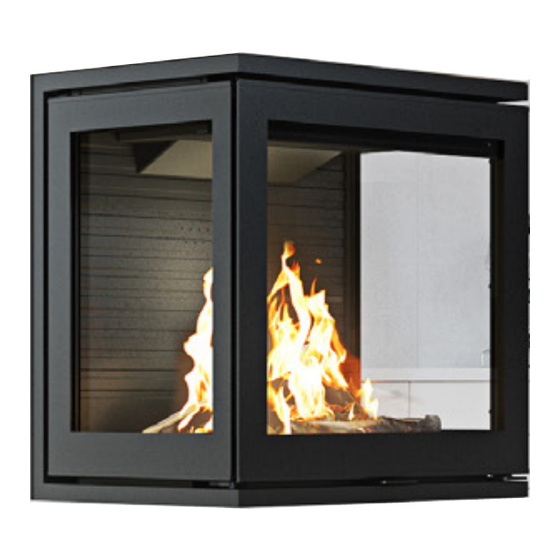

- Page 9 DIMENSIONAL SKETCHES 600-3 264,5 404,5 678 ** 11-0000-6556 R600 3G model, Glass * AirSystem ** Interior dimensions All dimensions are in mm. EN - 8...
-
Page 10: Information Plate
EC.NO: 11 Notified Body: 1235 Produced at: RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark Rais 600 Front model, Rais 600 Classic Front model AFSTAND TIL BRÆNDBART, BAGVÆG DK: mm SE BRUGERVEJLEDNING ABSTAND ZU BRENNBAREN BAUTEILEN, HINTEN DE: mm SIEHE BEDIENUNGSANLEITUNG... - Page 11 RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark Rais 600 Right model, Rais 600 Left model, Rais 600 3 Side model Rais 600 Classic Right model, Rais 600 Classic Left model, Rais 600 Classic 3 Side model AFSTAND TIL BRÆNDBART, BAGVÆG...
-
Page 12: Installation
INSTALLATION INSTALLATION The following section explains how to install the fireplace insert and includes information about the packaging, installation distances, etc. DELIVERY PACKAGING The fireplace insert is supplied secured to a transport pallet using four transport safety fittings. The safety fittings are secured with screws and these must be removed. The safety fitting can then be removed. -
Page 13: Choice Of Material For Installation
INSTALLATION CHOICE OF MATERIAL FOR INSTALLATION The material can be panels/brick with an insulation value greater than 0.03 m² x K/W. The insulation is defined as wall thickness (in metres) divided by the wall’s Lambda value. Contact your installation technician/chimney inspector. During testing, the fireplace insert is installed in a cabinet made from non-flammable 50 mm calcium silicate panels (Skamotec 225). -
Page 14: Installation Dimensions 600-1
500 cm² 500 cm² 250 cm² 250 cm² 500 cm² 250 cm² RAIS 600 Indbygningsmål 1G Skamotec RAIS 600 Indbygningsmål 1G Skamotec RAIS 600 Indby 13 - EN... -
Page 15: Installation Distance
INSTALLATION DISTANCE TO COMBUSTIBLE MATERIAL INSULATED CHIMNEY INSTALLATION DISTANCE: 600-1 A non-flammable panel must be fitted directly above the convection opening so that “standing” hot air does not develop above the convection opening. This is done to protect the ceiling and to transport the heat out of the fireplace insert. - Page 16 INSTALLATION DISTANCE TO COMBUSTIBLE MATERIAL UN-INSULATED CHIMNEY INSTALLATION DISTANCE: 600-1 A non-combustible plate must be fitted directly above the convection opening, so that ”standing” hot air does not occur above the convection opening. This is done to pro- tect the ceiling and direct the hot air out of the cassette. The insulated part of the chimney must pass through the non-combustible board! When...
-
Page 17: Installation Dimensions
The minimum area for convection air above and below the fireplace insert can be distributed for 500 cm² several cavities. 500 cm² Ceiling 250 cm² 250 cm² 500 cm² 250 cm² RAIS 600 Indbygningsmål 2G skamotec RAIS 600 Indbygningsmål 2G EN - 16... - Page 18 INSTALLATION DISTANCE TO COMBUSTIBLE MATERIAL INSULATED CHIMNEY INSTALLATION DISTANCE: 600-2 A non-flammable panel must be fitted directly above the convection opening so that “standing” hot air does not develop above the convection opening. This is done to protect the ceiling and to transport the heat out of the fireplace insert.
- Page 19 INSTALLATION DISTANCE TO COMBUSTIBLE MATERIAL UN-INSULATED CHIMNEY INSTALLATION DISTANCE: 600-2 A non-combustible plate must be fitted directly above the convection opening, so that ”standing” hot air does not occur above the convection opening. This is done to pro- tect the ceiling and direct the hot air out of the cassette. The insulated part of the chimney must pass through the non-combustible board! When...
-
Page 20: Installation Distance
INSTALLATION DISTANCE INSTALLATION DISTANCE: 600-2 If the cabinet is submerged into the wall, the first 175mm of the side wall must be made of non-combustible plate. Flammable wall Non-flammable plate 19 - EN... - Page 21 250 cm² Ceiling The minimum area for convection air 500 cm² above and below the fireplace insert can be distributed for several cavities. 250 cm² 500 cm² 250 cm² RAIS 600 Indbygningsmål 3G Skam EN - 20 RAIS 600 Indbygningsmål 3...
- Page 22 INSTALLATION DISTANCE TO COMBUSTIBLE MATERIAL INSULATED CHIMNEY INSTALLATION DISTANCE: 600-3 A non-flammable panel must be fitted directly above the convection opening so that “standing” hot air does not develop above the convection opening. This is done to protect the ceiling and to transport the heat out of the fireplace insert.
- Page 23 INSTALLATION DISTANCE TO COMBUSTIBLE MATERIAL UN-INSULATED CHIMNEY INSTALLATION DISTANCE: 600-3 A non-combustible plate must be fitted directly above the convection opening, so that ”standing” hot air does not occur above the convection opening. This is done to pro- tect the ceiling and direct the hot air out of the cassette. The insulated part of the chimney must pass through the non-combustible board! 11-0401-650102...
- Page 24 INSTALLATION DISTANCE INSTALLATION DISTANCE: 600-3 If the cabinet is submerged into the wall, the first 175mm of the side wall must be made of non-combustible plate. Flammable wall Non-flammable plate 23 - EN...
- Page 25 EN - 24...
-
Page 26: Adjustable Feet
ADJUSTABLE FEET The height and straightness of the stove can be adjusted from inside the stove after the stove is placed, by removing the two bottom Skamol plates, now the four Adjusta- ble feet can be adjusted with a 4mm Allen key. 11-0101-6501 Adjustable legs Adjustable feet... -
Page 27: Service Hatch
SERVICE HATCH There is access to the air damper handle and air damper wire through the service hatch at the bottom of the combustion chamber. 101-6502 ce Hatch Remove the Skamol plates from the combustion chamber and remove the screws from the service plate with a 4mm Allen key. -
Page 28: Heat Distributor
HEAT DISTRIBUTOR HEAT DISTRIBUTOR By installing a heat distributor unit above the fireplace insert, heat can be ‘transported’ to other rooms. 27 - EN... -
Page 29: External Air Connection
EXTERNAL AIR CONNECTION - AIRSYSTEM EXTERNAL AIR CONNECTION - AIRSYSTEM All RAIS/ATTIKA fireplace inserts can have an external air connection for combustion. We call this external air supply AirSystem. The system can be connected to the underside or the rear of the fireplace insert. - Page 30 EXTERNAL AIR CONNECTION - AIRSYSTEM INSTALLING AN AIR KIT ON THE REAR SIDE Remove the cover on the rear side of the fireplace insert and detach the cover plate (6) using a 3 mm Allen key (5). ITEM PART NUMBER TITLE 1710912sv Air connexion...
-
Page 31: Fitting The Floor Plate
FITTING THE FLOOR PLATE FITTING THE FLOOR PLATE RAIS/ATTIKA supply elegant floor plates made from hardened glass that are designed for the shape of the fireplace insert. Floor plates can be purchased separately. The floor plate is simply pushed in against the fireplace insert, which allows for occasional cleaning under the plate. -
Page 32: Lubricating Hinges
LUBRICATING HINGES LUBRICATING HINGES The fireplace must be lubricated regularly using the four moving parts on the lock and hinges (see image). Use heat-resistant oil. 31 - EN... -
Page 33: Combustion Chamber Lining
REMOVING THE COMBUSTION CHAMBER LINING REMOVING THE COMBUSTION CHAMBER LINING The combustion chamber lining protects the body of the fireplace insert from the heat from the fire. The large differences in temperature can lead to cracks in the combustion chamber lining. This will not affect the functionality of the fireplace insert. The lining will only need be replaced after several years of use when it begins to disintegrate. -
Page 34: Cleaning The Flue
CLEANING THE FLUE CLEANING THE FLUE Remove the flue panel by pushing the front up and pulling forward, so that the rear end becomes free of the vertical panels. The flue panel can now be carefully removed. Remove the steel baffle by pushing the rear end up, freeing it from the bracket. 33 - EN... - Page 35 CLEANING THE FLUE Push the baffle back sufficiently to free it from the bearing surfaces in the front of the fireplace insert. Fit the parts in reverse order. EN - 34...
-
Page 36: Additional Convection Openings
OPENING OF EXTRA CONVECTION VENTS To provide better air circulation and a cooler wall above the insert, we recommend that the extra convection openings be opened before the installation is completed. The three flaps are bent up to 90° 35 - EN... - Page 37 OPENING OF ADDITIONAL CONVECTION OPENINGS AFTER INSTALLATION After installation, the additional convection openings can be opened using a special tool 11-0000-040118 (can be purchased separately) Step 1 Open the door. Step 1: Step 2 Open the door Hold the tool approx. 25mm from the front edge of the combustion chamber.
- Page 38 Open the door OPENING OF ADDITIONAL CONVECTION OPENINGS AFTER INSTALLATION Step 3 Pull the tool to fully open the flap. Repeat the procedure for the other two flaps. 37 - EN...
- Page 39 OPENING OF ADDITIONAL CONVECTION OPENINGS, BRICK CONSTRUCTION When building in bricks, it is necessary to remove parts of the lower bricks, to make room for bending the convection flaps up. see picture EN - 38...
-
Page 40: Sparepart Drawing
SPAREPART DRAWING 39 - EN... -
Page 41: Spare Parts List
SPAREPART LISTE xx: optional color code POS. PCS. ITEM NUMBER TITLE 11-0000-100190 GLASS DOOR 11-0000-100290 CLASSIC DOOR 1711790 AIRDAMPER 1710990 AIRDAMPER CLEVERAIR 11-0000-5003 OUTER GLASS LEFT SIDE 11-0000-5004 OUTER GLASS RIGHT SIDE 11-0000-2601 CLASSIC SIDE PANEL LEFT 11-0000-2602 CLASSIC SIDE PANEL RIGHT 11-0000-5005 INNER GLASS FOR BODY - IR COATED 11-0000-2201... -
Page 42: Declaration Of Performance
DECLARATION OF PERFORMANCE 41 - EN... -
Page 43: Test Certificate
TEST CERTIFICATE TEST Reg.nr. 300 16-10-2019 08:52:01 Dette PDF dokument er kun gyldigt, hvis det er digitalt signeret med OCES digitalsignaturen for Kim Sig Andersen, Teknologisk Institut. This PDF document is only valid if digitally signed with the OCES digital signature for Kim Sig Andersen, Danish Technological Institute. EN - 42... - Page 44 TEST CERTIFICATE TEST Reg.nr. 300 04-10-2019 10:58:54 Dette PDF dokument er kun gyldigt, hvis det er digitalt signeret med OCES digitalsignaturen for Kim Sig Andersen, Teknologisk Institut. This PDF document is only valid if digitally signed with the OCES digital signature for Kim Sig Andersen, Danish Technological Institute. 43 - EN...
- Page 45 EN - 44...
-
Page 46: The Clean Air Act
THE CLEAN AIR ACT THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS UNDER THE CLEAN AIR ACT LOCAL AUTHORITIES MAY DECLARE THE WHOLE OR PART OF THE DISTRICT OF THE AUTHORITY TO BE A SMOKE CONTROL AREA. IT IS AN OFFENCE TO EMIT SMOKE FROM A CHIMNEY OF A BUILDING, FROM A FURNACE OR FROM ANY FIXED BOILER IF LOCATED IN A DESIGNATED SMOKE CONTROL AREA. - Page 47 THE RAIS 600-1, 600-2 AND 600-3 HAVE BEEN RECOMMENDED AS SUITABLE FOR USE IN SMOKE CONTROL AREAS WHEN BURNING WOOD LOGS. FUEL OVERLOADING THE MAXIMUM AMOUNT OF FUEL SPECIFIED IN THIS MANUAL SHOULD NOT BE EXCEEDED, OVERLOADING CAN CAUSE EXCESS SMOKE.
- Page 48 RAIS A/S ATTIKA FEUER AG Industrivej 20 Brunnmatt 16 DK-9900 Frederikshavn CH-6330 Cham Denmark Switzerland www.rais.com www.attika.ch...
