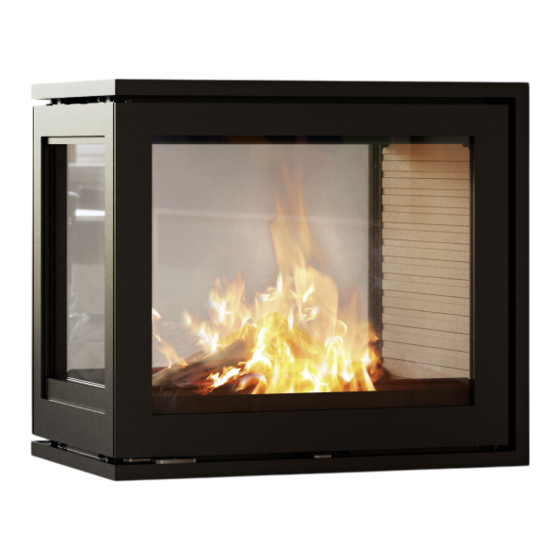

The production number can be found on the frame un- der the door and at one of the front pages of the user manual. THIS MANUAL APPLIES TO THE FOLLOWING MODELS: • R600RD • R600T R600RD R600T 2 - EN...
INSTALLATION GUIDE INSTALLATION GUIDE VENTILATING SYSTEMS Thank you for choosing your new RAIS or ATTIKA prod- There must not be an exhaust system in the same room uct! This installation instructions manual will ensure as the product, as this may cause the product to emit fu- that your fireplace insert is installed correctly and that...
ATTENTION! Before the fireplace insert may be put to use, the set-up must be reported to your local chimney sweeper. ATTENTION! RAIS/ATTIKA recommends having the insert installed by an authorised technician. Please ask your dealer for further information. MALFUNCTIONS STOVE IS BURNING TOO WEAK If you are experiencing disturbances, some of the most •...
Intermittent operation (INT) Fuelling time Recommended wood quantity when filling (Divided into 2-3 pieces of firewood) The diameter of the flue pipe collar 721/846/416 (R600RD) L, H, W Overall dimensions of the appliance (length, height, width) 758/846/416 (R600T) 595/465/274 Combustion chamber...
Page 7
The user manual includes a more detailed description of how to conduct the nominal test. R600RD R600T RATING PLATE All RAIS/attika stoves have a rating plate indicating the stove’s distance to combustibles, efficiency etc. The nameplate can also be found by scanning the QR code. EN - 7...
500 mm from the upper convection opening to the made of combustible materials (such as furniture) are ceiling. not placed closer than the distances indicated in the following tables (fire risk). R600RD R600T Combustible ceiling Combustible ceiling 1000 Combustible wall...
INSTALLATION RECYCLING OF PACKAGING The fireplace insert is delivered in recyclable packaging. This packaging must be disposed of in accordance with national regulations relating to the disposal of waste. Plastic straps Styrofoam Cardboard Plastic Sheet metal Pallet wood DISPOSAL AFTER END OF LIFE When your oven can no longer be used in the distant future, it is important that it is disposed of correctly.
INSTALLATION PACKAGING AT DELIVERY Upon delivery, the fireplace insert is secured to a trans- port pallet using four transport safety fittings. The safe- ty fittings are attached with screws which must be un- screwed. The safety fittings can then be removed. HEIGHT ADJUSTMENT There are four adjustment screws underneath the ap- pliance.
INSTALLATION REMOVING THE COMBUSTION CHAMBER LINING To reach the flue, carefully remove the vermiculite smo- Lift one side of the upper smoke deflector plate and tilt ke deflector plates. To remove the first smoke deflector the other down. Then, carefully insert in reverse order. plate, lift the rear end and tilt the front end down.
INSTALLATION DIMENSIONS - R600RD CHOICE OF MATERIAL FOR INSTALLATION INSTALLATION DIMENSIONS: R600RD The material can be panels/brick with an insulation value Minimum cavity dimensions (H x W x D) 603 x 410 x 713 greater than 0.03 m x K/W. The insulation is defined as wall mm.
INSTALLATION DIMENSIONS - R600T CHOICE OF MATERIAL FOR INSTALLATION INSTALLATION DIMENSIONS: R600T The material can be panels/brick with an insulation value Minimum cavity dimensions (H x W x D) 603 x 410 x 748 greater than 0.03 m x K/W. The insulation is defined as wall mm.
INSTALLATION DIMENSIONS A non-combustible plate must be placed directly above the convection opening to prevent ”standing” hot air. This is done to protect the ceiling and direct hot air from the cassette. UN-INSULATED FLUE: INSULATED FLUE: ATTENTION! ATTENTION! The insulated chimney must pass through the The insulated chimney must extend all the way non-combustible plate.
When the stove is installed in a construction whe- re direct combustion air is required, external air must be connected to the stove from the outside. All RAIS/ attika stoves have the option to supply external air. This external air supply is what we call AirSystem. The air intake for the system can be hidden by installing it either in the floor or in the wall behind the stove.
Page 18
DISMOUNTING FRAMES DISMOUNTING FRAMES It is possible to remove the frames on the stove if it is de- sired to plaster the wall behind the frames. Follow the fol- lowing steps: There is a cover at the bottom of the oven that must be removed before the frames can be loosened.
Page 19
DISMOUNTING FRAMES ATTENTION! Since the stove needs room to expand, it is crucial to follow the installation dimensions for the hole dimensi- ons. To ensure that the dimensions are followed, don’t forget to consider the plaster and overall wall structure. The side frame can now be removed.
