Speaker Connections

The speakers are connected to the CAM6.6
using modular snap connectors. Each of these
color-coded connectors is designated for the
speaker set of a particular amplified zone. To
avoid confusion, connect one zone speaker set
at a time starting with Zone 1, taking care to
keep zone and speaker wire identities straight.
Note: An 8 Ohm minimum speaker is required
for each amplified output.
1. Pull the speaker wire conductors apart so
they're separated for the first two inches from
their ends.
2. Using a wire stripper, remove 1/4 inch of
insulation from each conductor. Twist the
strands in each conductor into tight spirals.

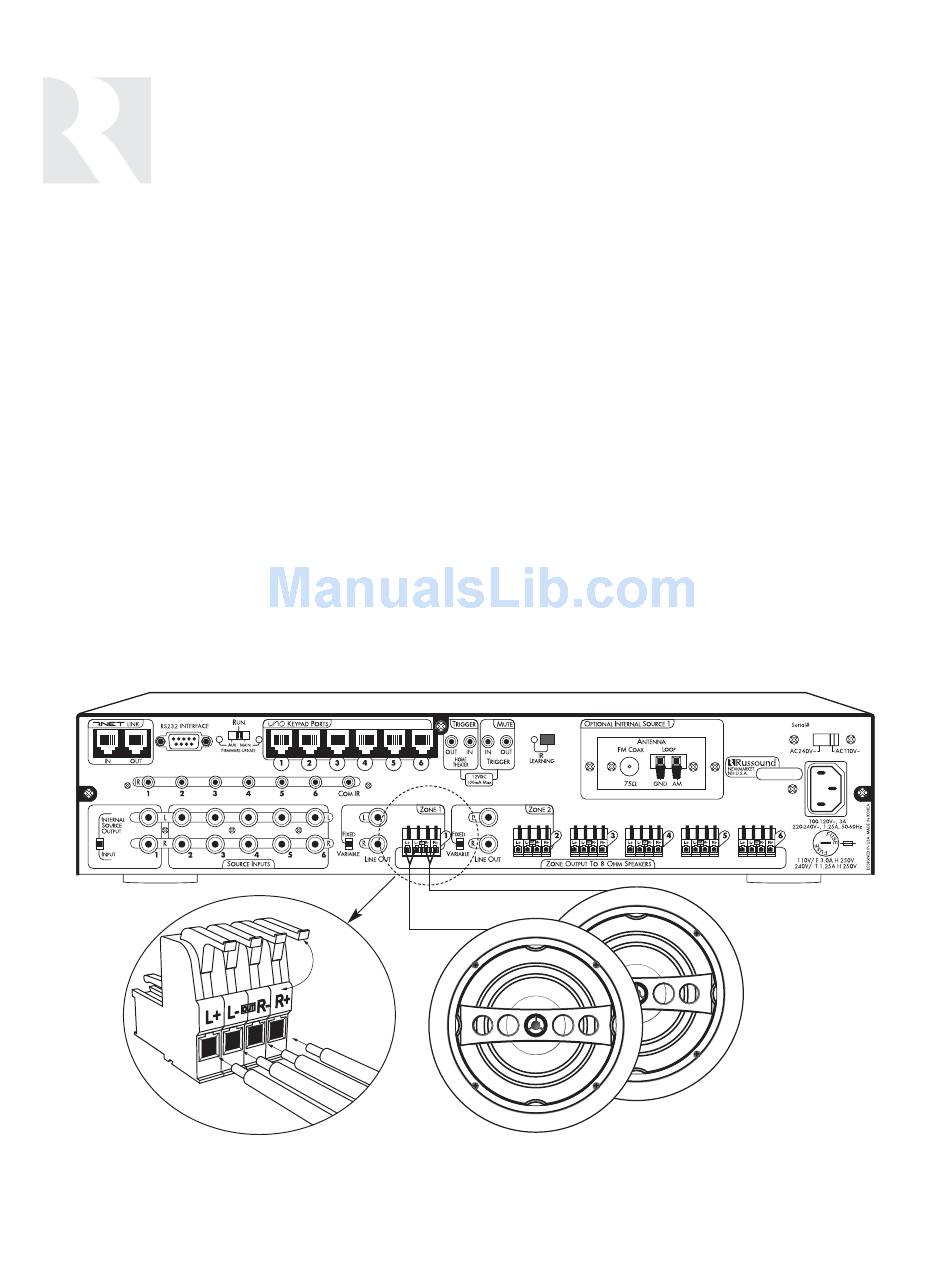

3. Remove the modular four-color connector for
Zone 1. The color code is as follows:
WHITE -- L+ (left channel positive)
GREEN -- L- (left channel negative)
BLACK -- R- (right channel negative)
RED -- R+ (right channel positive)
Lift the black lever for each connection until it
locks open and insert the proper speaker
wire, matching channel and polarity for all
four wires. Snap the lever down. Insert the
modular connector into its designated output
on the back of the CAM6.6.
4. Complete the same steps for the remaining
zones. Label each set of speaker wires with
the zone and location.
