Russound SIX-SOURCE CONTROLLER CAM6.6 Instruction Manual Page 31

Six-zone, six-source controller; six-zone, six-source am/fm receiver.
Hide thumbs

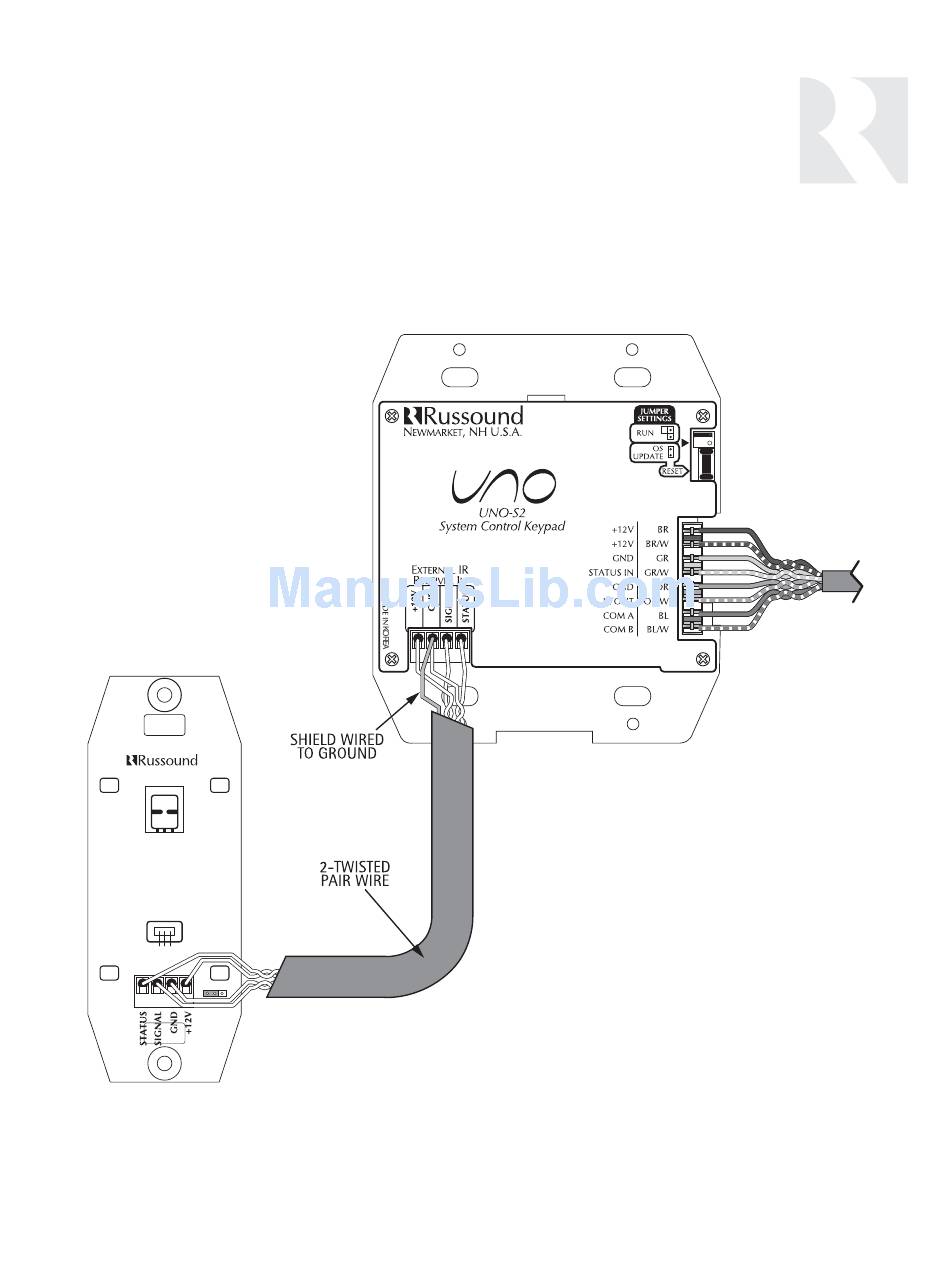

The UNO-S2 keypad has an External IR Receiver
IN terminal for connecting an external IR receiv-
er such as the Russound SaphIR 858, 862 Eye,
or 860 Phantom. Use 2 twisted pair wire with
Back of
Russound 858
WIRING INSTRUCTIONS
IR Receiver Connection
one pair connecting GND (GROUND) and IR (SIG-
NAL) and the other pair connecting ST (STATUS)
and V+ (+12VDC). If the wire has a shield, con-
nect it to ground at the UNO-S2 only.
Back of
UNO-S2
INSTALLER
31
