980 User Guide – HDMI Compliance Tests

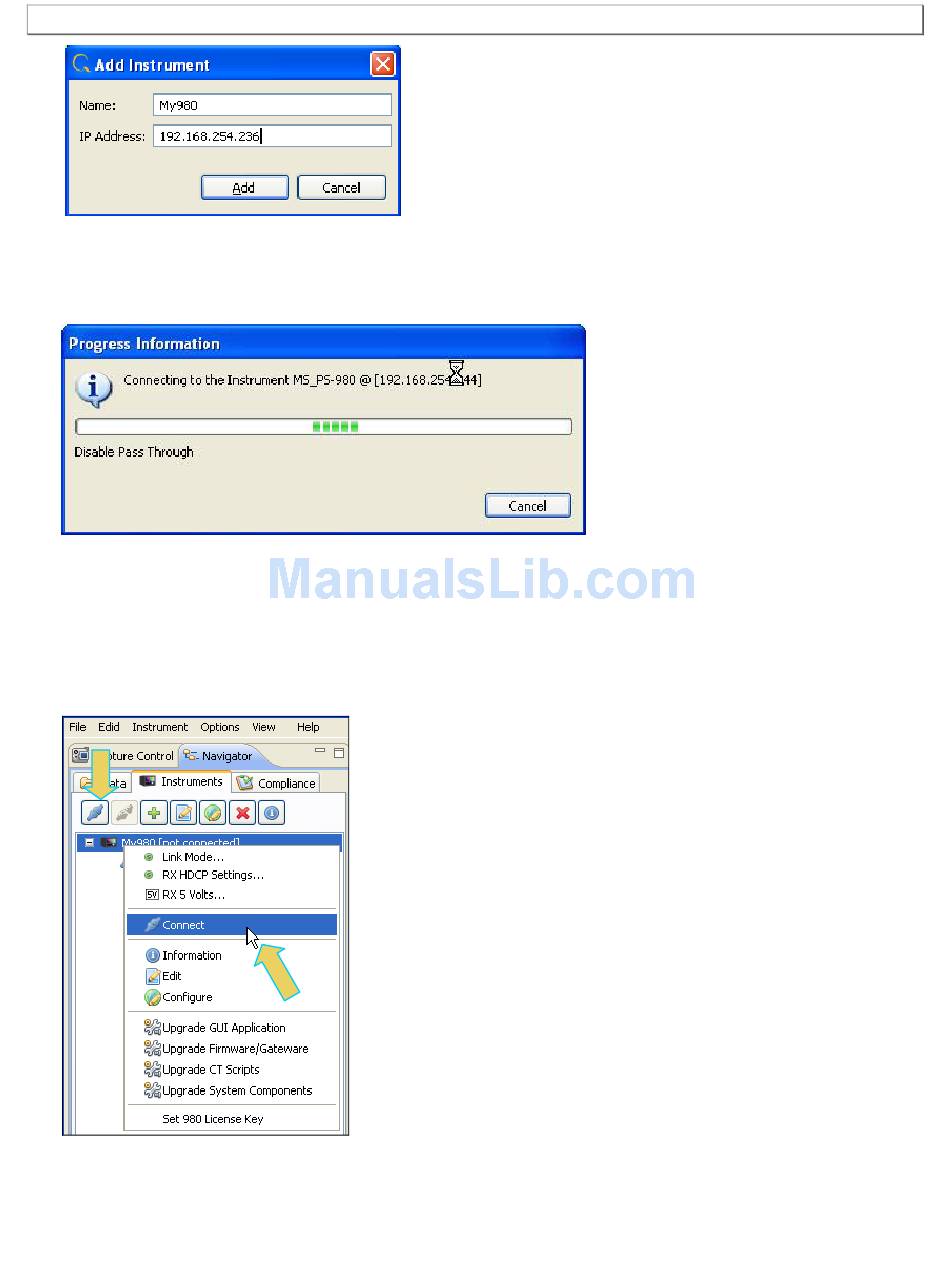

5. Enter the name (any suitable name) and IP address of the 980 Protocol Analyzer that you want to connect to in
the Add Instrument dialog box (above). Then click on the Add activation button.
You will see a series of messages on a dialog boxes describing the progress. One example is shown below:
The 980 Protocol Analyzer with the IP address you entered appears on the list in the 980 Navigator panel
(below). The 980 Manager application will automatically connect to the 980 Protocol Analyzer once you add
the 980 to the application.
6. (If not already connected) Connect to the 980 Protocol Analyzer using either the Connect icon or the Connect
item on the right click menu as shown in the screen below. Note that you can also double click on the 980 in
the Instrument dialog box in order to initiate a connection.
A dialog box appears indicating that a connection is in progress:
