980 User Guide – HDMI Compliance Tests
When the tests are completed the test window that shows the current activity will close. A new tab and panel
will appear next to the HDMI CT 1.4 tab called the CT Results tab. You can view the test results in this panel.

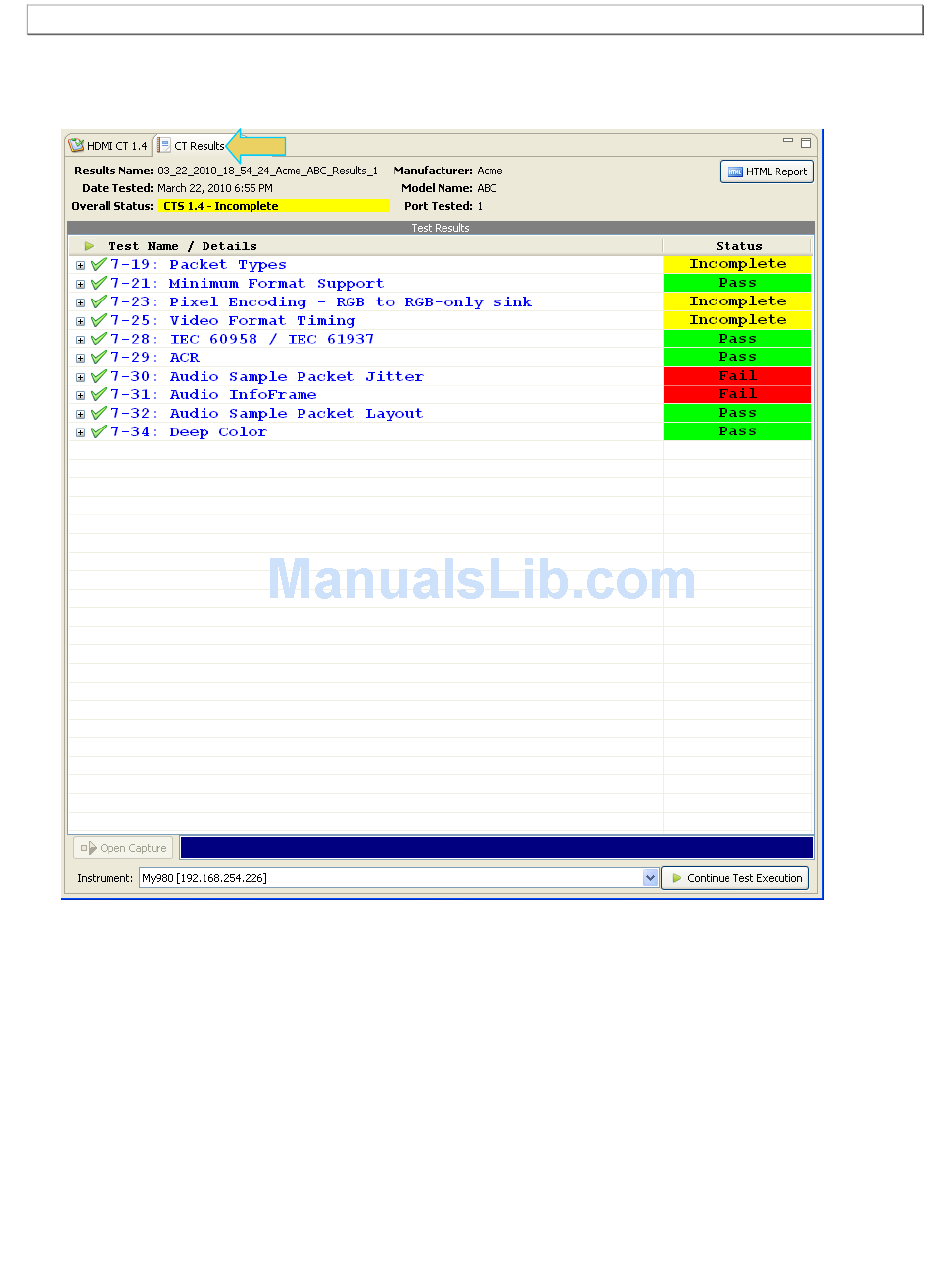

Refer to the following screen shots to see examples of the CT Results panel.
Page 53
Rev. B29
August 5, 2011
