980 User Guide – HDMI Compliance Tests

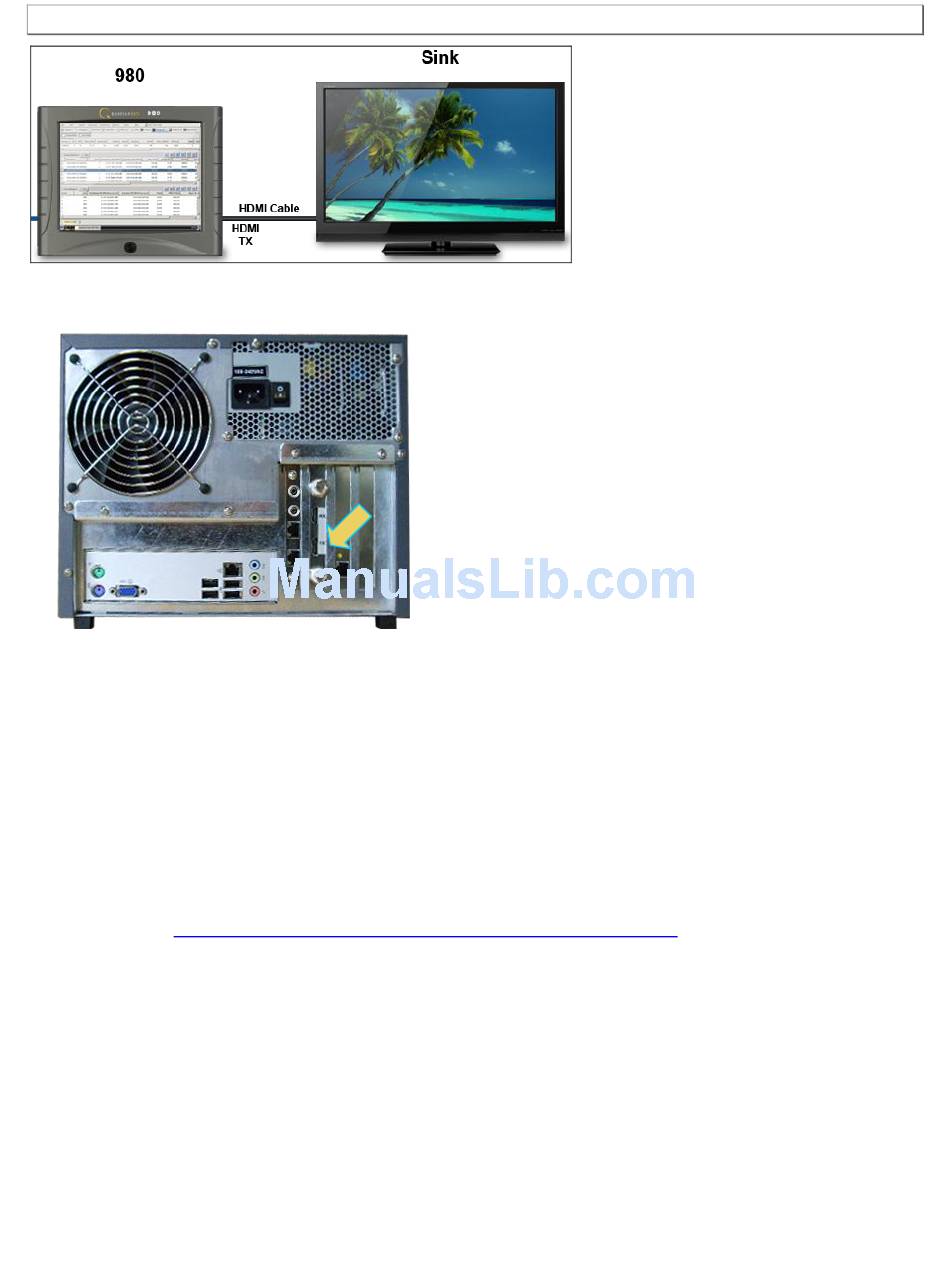

2. Connect your HDMI sink device under test to the HDMI Tx connector (the bottom most HDMI connector shown
in the figure below) on the 980 Protocol Analyzer. Use a high speed HDMI cable.
To make the physical connections using Ethernet connection with the external 980 GUI Manager when
connecting through your corporate LAN:
This procedure is used when you using the external 980 GUI Manager and connecting to the 980 through your
corporate LAN network. This procedure is required to establish an IP session between the 980 Manager running
on the 980 Protocol Analyzer. This procedure assumes that you have assembled the 980 Protocol Analyzer, host
PC and source device under test and applied power to all these devices. Refer to the procedures and diagram
below.
1. Connect an Ethernet cable from the 980 Ethernet Jack on the lower left half of the back panel of the 980
Protocol Analyzer to your corporate LAN. The IP address on this 980 Ethernet port is configurable using the
procedures in Connection Scenarios for 980 Manager to 980 Protocol
2. Connect an Ethernet cable from your PC hosting the external 980 GUI Manager to your corporate LAN. Refer
to the diagrams below.
Page 55
Analyzer. Refer to the diagrams below.
