980 User Guide – HDMI Compliance Tests

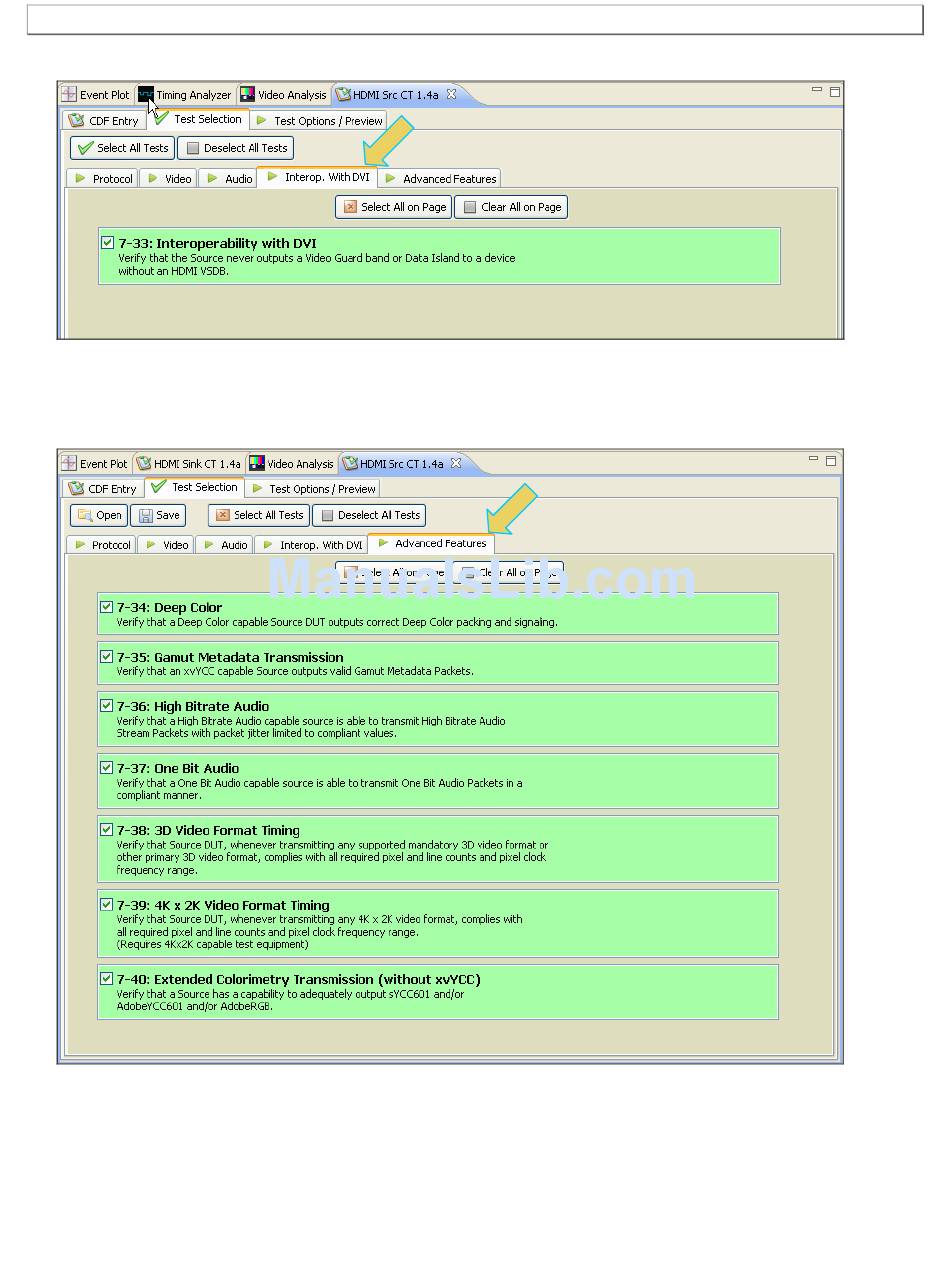

6. Complete the items in the Interop. With DVI tab of the Test Selection panel shown below.
7. Complete the items in the Advanced Features tab of the Test Selection panel shown below.
Note: Support for the 4K by 2K test (Test ID 7-39) is only available on the 980 297MHz "Gen 3" version of the
Protocol Analyzer.
8. You can save the Test Selection options using the Save activation button.
Page 37
Rev. B29
August 5, 2011
