980 User Guide – HDMI Compliance Tests
Rev. B29
3.2.3 Establishing an HDMI connection between the HDMI source device under test and the 980
Protocol Analyzer

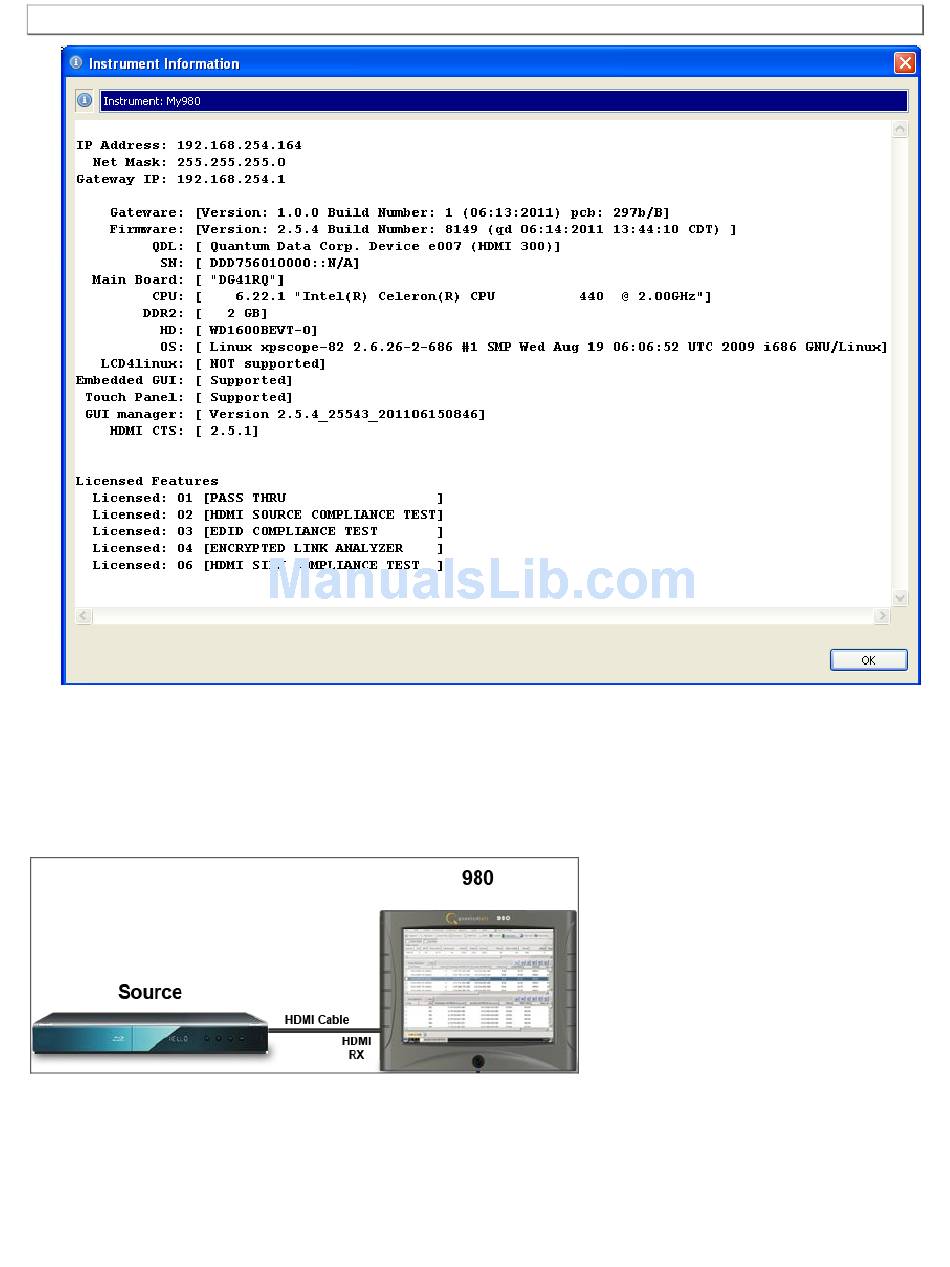

This procedure describes how to establish an HDMI connection between the HDMI source device under test and
the 980 Protocol Analyzer. This procedure assumes that you have assembled the 980 Protocol Analyzer and
source device under test and applied power to all these devices. Refer to the procedures and diagram below.
1. Connect your HDMI source device under test to the HDMI Rx connector (the top most HDMI connector shown
in the figure below) on the 980 Protocol Analyzer. Use a high speed HDMI cable.
Page 22
August 5, 2011
