980 User Guide – HDMI Compliance Tests
3.7

Viewing the HDMI Source Compliance HTML test report

After you have completed the tests, an HTML Report activation button will appear in the upper right of the screen
which enables you to access the html report of the test results. Use the following procedures to view the html test
report.
To view the html test report:

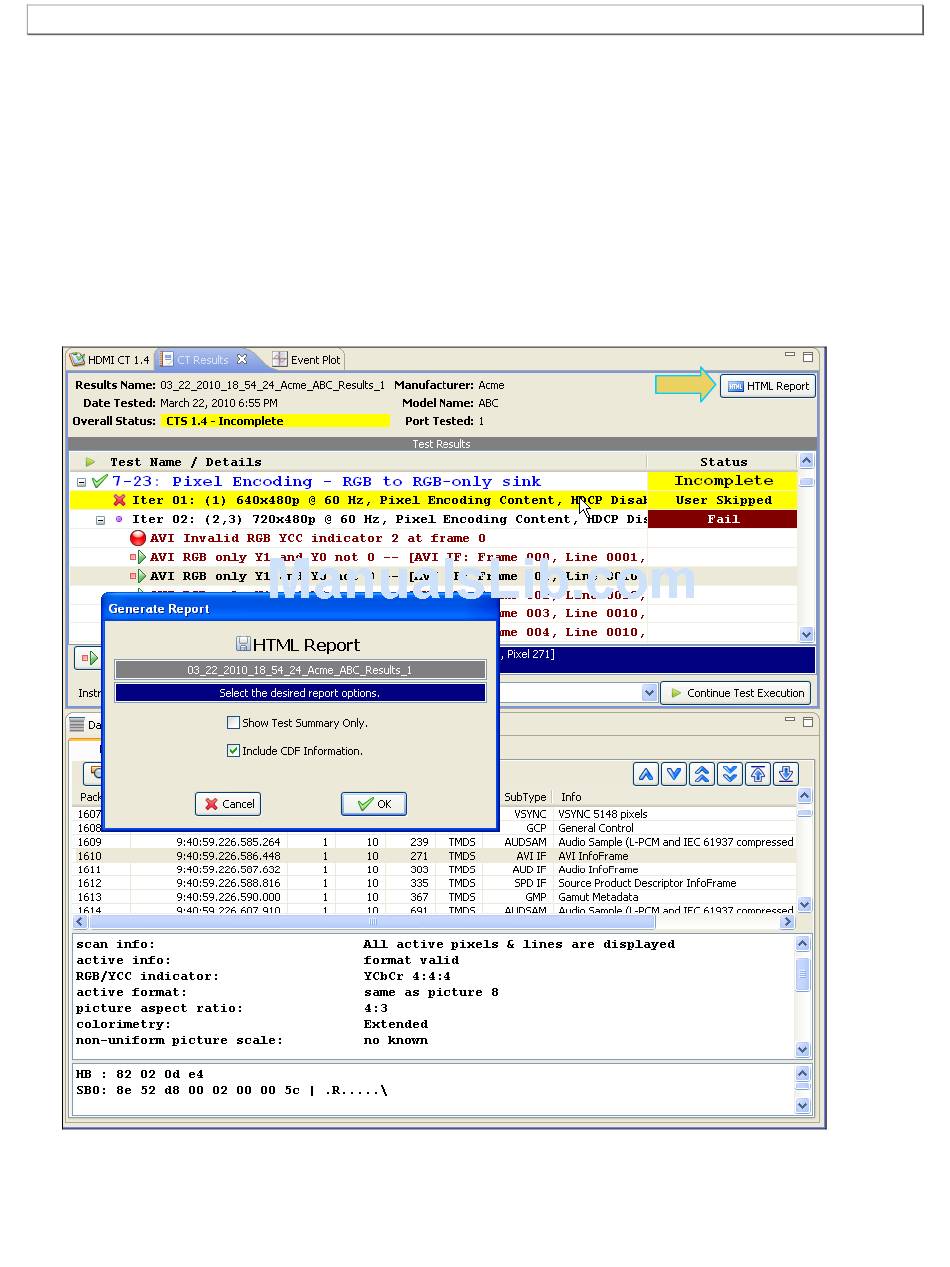

1. Select the CT Results panel as shown below.
2. Click on the HTML Report activation button.
A dialog box will appear asking if you want a summary of the test results or a version that includes the CDF.
This dialog box is shown in the screen shot below.
