980 User Guide – HDMI Compliance Tests
4.2.1 Establishing a Management Session between the 980 GUI Manager and the 980 Protocol
Analyzer
This procedure describes how to establish a management session between your 980 Manager and the 980
Protocol Analyzer. The procedure assumes that you have IP addresses provisioned in the 980 and the PC hosting
the 980 Manager and that you have a suitable Ethernet cable connected between the PC and the 980 either
directly or through your corporate LAN.

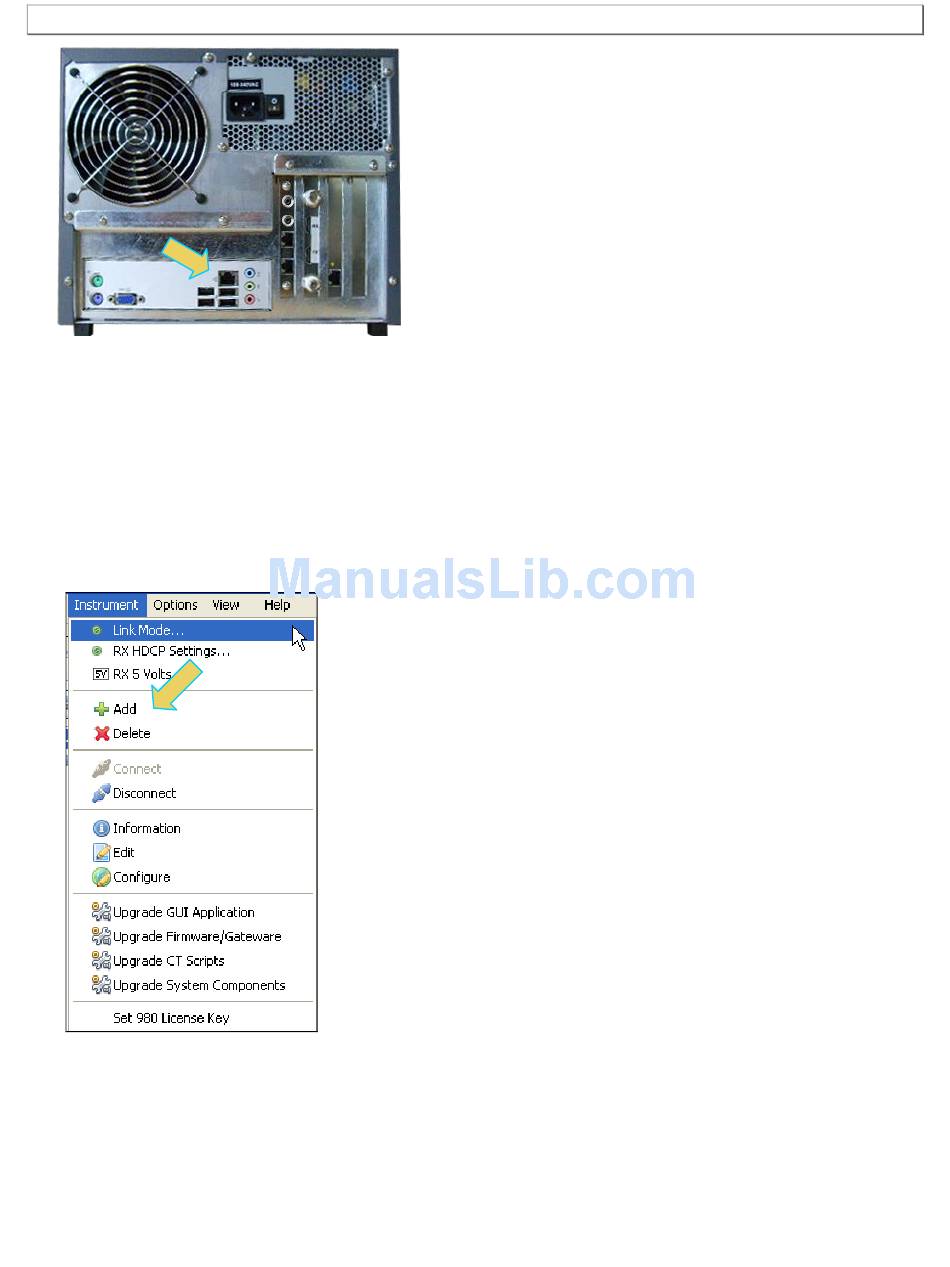

4. Add your 980 Protocol Analyzer to the 980 Manager application using the green + icon or the + Add item on
the Instrument pull-down menu identified below.
The Add Instrument dialog appears enabling you to enter the name and IP information for the 980 that you
are trying to connect to (below).
Page 57
Rev. B29
August 5, 2011
