980 User Guide – HDMI Compliance Tests

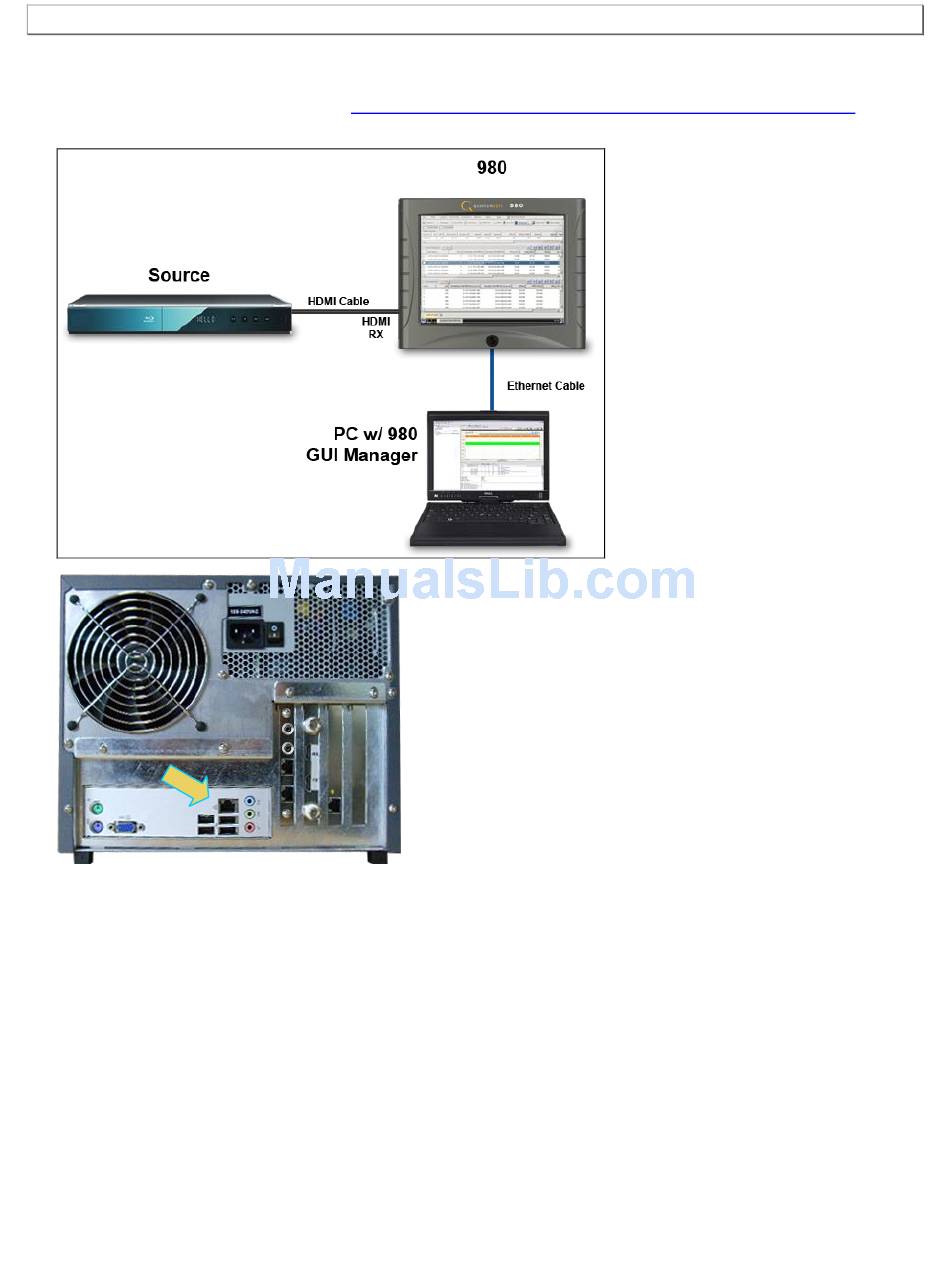

1. Connect an Ethernet cable from the 980 Ethernet jack on the lower left half of the back panel of the 980
Protocol Analyzer frame to your PC hosting the 980 GUI Manager. The IP address on this 980 port is
configurable using the procedures in
to the diagrams below.
3.2.2 Establishing a Management Session between the 980 GUI Manager and the 980 Protocol
Analyzer
This procedure describes how to establish a management session between your 980 Manager and the 980
Protocol Analyzer. The procedure assumes that you have IP addresses provisioned in the 980 and the PC hosting
the 980 Manager and that you have a suitable Ethernet cable connected between the PC and the 980 either
directly or through your corporate LAN.
1. Add your 980 Protocol Analyzer to the 980 Manager application using the green + icon or the + Add item on
the Instrument pull-down menu identified below.
Page 18
Connection Scenarios for 980 Manager to 980 Protocol
Rev. B29
Analyzer. Refer
August 5, 2011
