980 User Guide – HDMI Compliance Tests

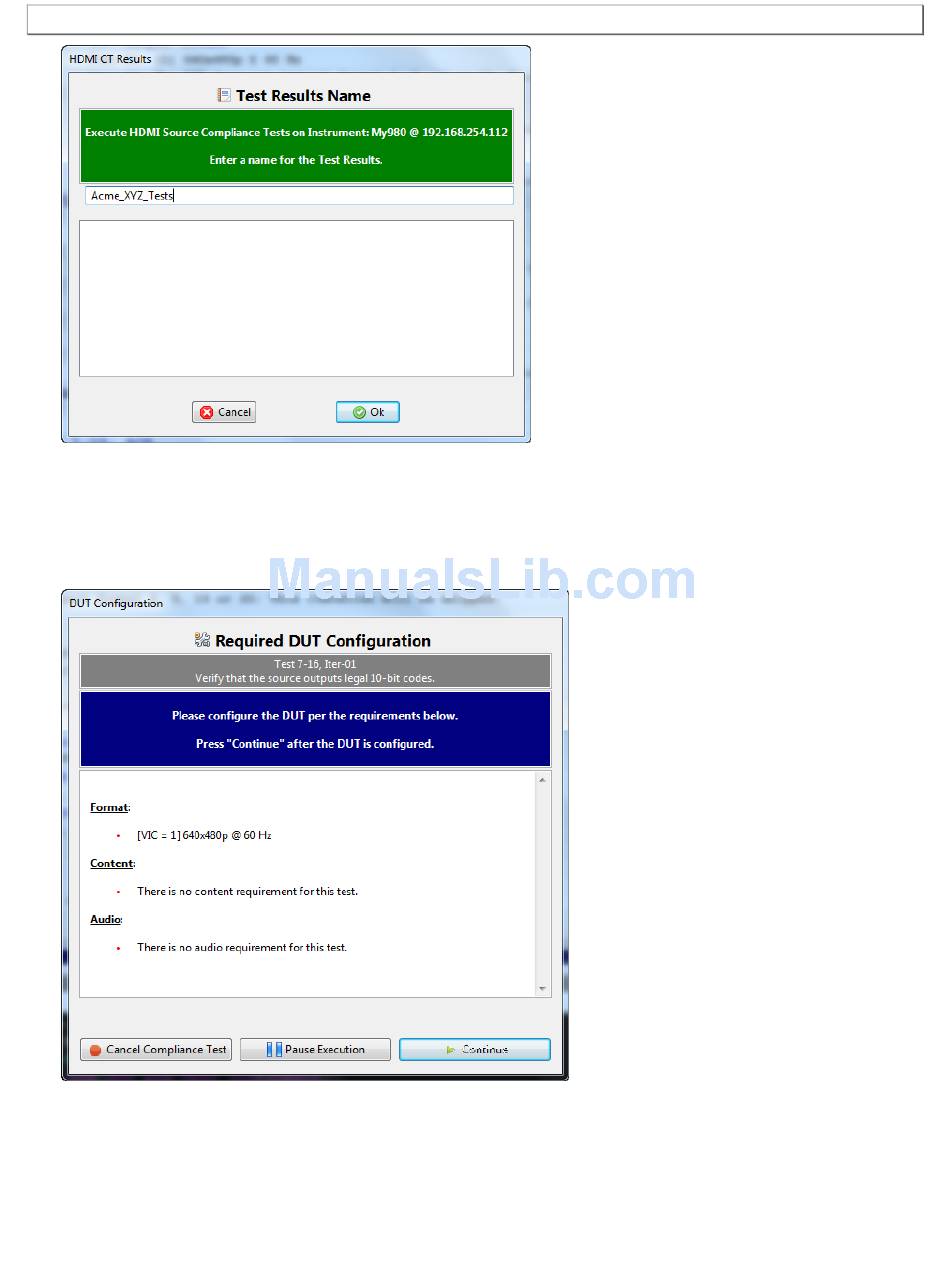

During the tests a Required DUT Configuration dialog box will appear which requires that you to verify that
the source device under test is in the correct mode (video and audio format are correct). The following screen
shot depicts this. Press Continue when you have the source device in the correct mode. If you need to pause
the test to configure the source device under test, you can do so by clicking on the Pause Execution
activation button. You can cancel the test using the Cancel Compliance Test button.
If you do not have the source device under test in the proper mode, an error dialog box will appear. A sample
of this error dialog box is shown below.
