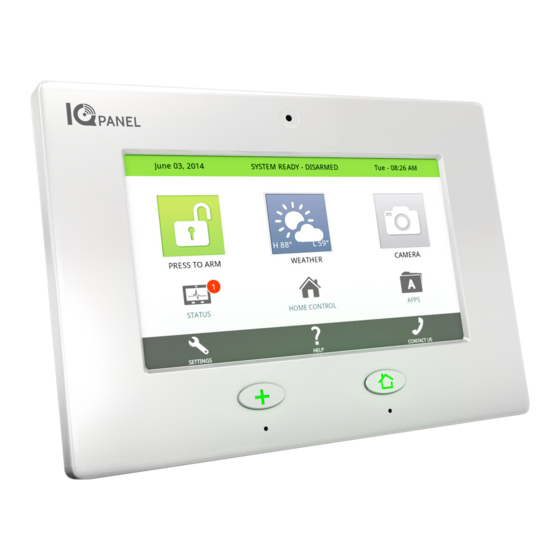

QOLSYS IQ PANEL Quick Install Manual

IQ PANEL QUICK INSTALL GUIDE
STEP 1: INSTALL THE HARDWARE
Step 1 Step 2
Remove retainer screw
Pull back plate off
from panel top
gently
Step 6 Step 7
Connect wires.
Connect power supply
DCIN+ to Positive
Positive to +
DCIN- to Negative
Negative to -
STEP 2: CONNECT WI-FI
Settings System Settings Touch "Wireless Settings"
*Requires Installer code, default is "1111"
STEP 3: RUN A CELL TEST
Settings System Cellular
Tests
Test
Touch "Start" to begin the test
For IQ Panels using Software Version 1.4.2
Step 3 Step 4
Mount back plate to Hook panel stabilizer
Connect battery
wall strap onto back plate DO NOT DISCONNECT
AFTER INSTALLATION
Step 8
Step 9
Plug in power supply Replace retainer screw
Tilt panel upward onto
and secure with screw.
back plate until it snaps
Flip bracket upside for
in place
decor style plugs.
Touch "Wi-Fi Settings"
Successful results will initiate a panel
download from the Alarm.com servers, like
date, local time, weather, etc., and begins
syncing your company' s contact info &
template settings. Alarm.com account must be
created prior to test.
STEP 4: CHECK FOR SOFTWARE UPDATES
Step 5
Settings Installation
*NOTE: Download could take could take up to 3 minutes, depending on your connection speed. After
the panel re-starts DO NOT TOUCH THE PANEL for 5 minutes to allow the software to fully install.
STEP 5: PAIR SECURITY & LIFE SAFETY SENSORS
Step 10
Settings
Installation
and tighten
NOTE: Image Sensors are placed in "pairing mode" by removing and replacing the batteries. See installation manual for details.
STEP 6: PAIR Z-WAVE DEVICES
Select the desired
network. Settings
Installation
Enter Wi-Fi
password if
required.
Press "Learn"
button on
device
IMPORTANT
FOR DETAILED INSTRUCTIONS REFER TO THE IQ PANEL INSTALLATION MANUAL ON
Security Signaling Residential Fire Alarm and
Security Equipment
ETL Listed
Conforms to ANSI/UL Standards
Conforms to ANSI/UL Std. S985. 1023. & 1635
Certified to ULC Sub. C1023 & ULC Std. S545
TechSupport@Qolsys.com (855) 4-QOLSYS
Upgrade
Touch "Upgrade using Network"
Software
The panel will
AutoLearn
Security
chime and a
"Tamper" Sensor
Sensors Sensor
message will
Typically done by opening case,
see manual for specifics
Touch "OK"
Home Control
Add
Touch "Pair"
Device
Devices
Device
information
appears
automatically.
Touch "Add" to complete
Edit as desired.
the pairing process.
Document#: IQPANEL-QG-01-15
Revision Date: 5/1/15
Applies to Qolsys Part #s:
QS-9004-VRZ QS9014-124-00-04
QS9004-840-00-00 QS9014-484-00-06
QS9014-840-00-02
If update is available it will
download and install
automatically. Once
complete, touch "OK" to
restart the panel.*
Touch
"Add"
Select a quick
appear.
name or custom.
The panel will begin
"looking" for devices
NOTE: If the device does
not learn in you may need
to "Clear Device" first.
See installation manual
for detailed steps
DEALERS.QOLSYS.COM
Qolsys Inc. proprietary. Reproduction
without permission is not permitted.
