QOLSYS IQ Installation Manual

IQ DOOR/WINDOW- INSTALLATION MANUAL
IQ DOOR/WINDOW
PARTS INCLUDED
1 Door/Window Sensor
1 Magnet
6 screws
1 large strip of double sided adhesive
1 small strip of double sided adhesive

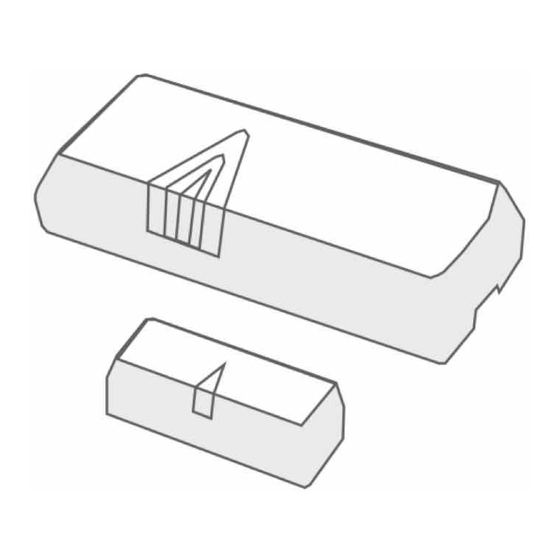

The Qolsys IQ Door/Window is a sleek, high-
performance wireless sensor that detects opening
and closing of doors, windows and anything else
which opens and closes (drawers, cabinets, etc). It
works seamlessly with the Qolsys IQPanel.
TECHNICAL SPECIFICATIONS
Wireless signal range: 600ft (200M),open air.
Code outputs: tamper, tamper restore, alarm (primary open),
alarm restore (primary close), external alarm (secondary
wired open), external restore (secondary wired closed), low
battery.
Transmitter frequency : 319.5MHZ
Unique code ID
Supervisory keep-alive interval: 70 minutes.
RF output power 91.1dBuV +/- 5% at 3m
PRODUCT FEATURES
•Low profile
•Supports one or two doors, windows, etc.
•Primary wireless magnet contact and secondary wired
contact
•Internal or external reed switch
•Easy, wire-free installation
•Secondary (optional) sensor (external wired Door/Window
sensor)
•Advanced circuit technology resulting in ultra-low power
consumption
•Easy to install Batteries
•Over 5 years of battery life
•Tamper Detection
•Supervisory health messaging
•Sensor Open and Close detection
