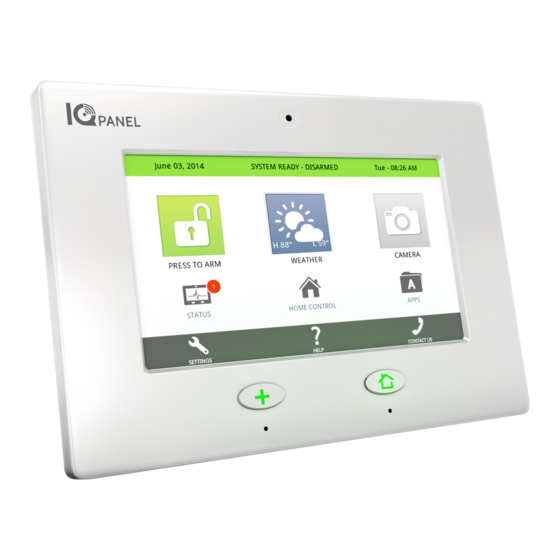

QOLSYS IQ Panel Installation Manual

Hide thumbs Also See for IQ Panel:

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
WELCOME
© America's Best Alarms, 2014

Advertisement

loading

Related Manuals for QOLSYS IQ Panel

Summary of Contents for QOLSYS IQ Panel

  • Page 1 WELCOME © America’s Best Alarms, 2014...
  • Page 2 Last, we want to make it easy for you to simply set up your IQ panel by yourself. By following through the steps in this packet, you will easily be able to set-up your IQ panel along with the components that come along with it.

  • Page 3: Let's Get Started

    LET’S GET STARTED ATTACHING THE BASE STEP 1: LINE UP THE STAND STEP 2: INSERT TOP PEGS STEP 3: WIRE IN SLOT STEP 4: GRASP BOTTOM STEP 5: SLIDE UP INTO PLACE © America’s Best Alarms, 2014...
  • Page 4 A MESSAGE FROM QOLSYS We’d like to thank you for making the decision to purchase the IQ Panel. We hope you’ll enjoy using it as much as we enjoyed developing it. Our name is Qolsys, (pronounced kwal-siss) and stands for “Quality Of Life Systems.
  • Page 5 The IQ sensor is a sleek, high performance wireless sensor that detects openings and closings of doors, windows, and anything else which opens and closes (cabinets, drawers, etc). It works seamlessly with the Qolsys IQ Panel. Each IQ Door/Window Sensor comes with: •...
  • Page 6 IQ DOOR/WINDOW SENSOR Where Do I place my IQ Sensors? • Place the IQ Sensor within 100 feet of your IQ panel. • Any entry point such as a window or door. • Anything that opens and closes such as a cabinet, or a drawer.

  • Page 7: Mounting Instructions

    IQ DOOR/WINDOW SENSOR MOUNTING INSTRUCTIONS Mounting with provided adhesive • Remove backing one one side of the large double-sided tape and stick the exposed side on the back of the sensor as shown. • Remove the other side of the large double- ‐sided tape and mount the device according to the installation instructions.
  • Page 8 IQ MOTION SENSOR This IQ motion is a high-performance wireless motion sensor that is completely tamper-proof and equipped with pet immunity (up to 40 lbs) that prevents accidental triggers by household pets. The beam from the IQ motion ranges up to 30 ft at an 80 degree angle of its placement. Each IQ Motion Sensor comes with: •...
  • Page 9 IQ MOTION SENSOR Where do I place my IQ Motion Sensors? • At least 6 feet from the floor • Within 100 feet of your IQ panel • On a flat wall, or corner of room Important Tips: • Don’t place IQ motions in an area where your pet may be able to jump onto a bed, couch, etc.
  • Page 10 IQ MOTION SENSOR MOUNTING INSTRUCTIONS • Remove back cover by pressing bottom button and sliding back cover off in an upward motion. If a flush mount is required screw in the back cover on the wall using the screw templates as shown. If corner mount is required use the screw templates as shown.
  • Page 11 IQ INTERIOR SMOKE DETECTOR This IQ smoke detector with its sleek design detects smoke particles in the air and can detect a rise in temperature in the room using the photoelectric chamber built into it. It is monitored 24/7 and notifies the fire department in case of an fire. Each IQ Interior Smoke Detector comes with: •...
  • Page 12 IQ INTERIOR SMOKE DETECTOR Where do I place my IQ Smoke Detector? • On a wall, 4-12 inches below the ceiling • On a ceiling, close to the center of the room or at least 4 inches away from the nearest wall •...
  • Page 13 IQ GLASS BREAK SENSOR The IQ Glass Break Sensor is specifivaly designed to protect windows. Triggered by the pitch and frequency of breaking glass, they are effective within 25’ of the windows. Each IQ Glass Break Sensor comes with: • One IQ Glass Breakage Sensor •...
  • Page 14 IQ GLASS BREAK SENSOR Where Do I place my IQ Glass Break Sensors? • At least 3.3 feet from windows being protected and 4 feet from sources of noise. • Maximum distance from window is 25 feet. • On shelf, wall, or possibly the ceiling. •...
  • Page 15 Important Tips: • Only works indoors at a 30 meter range from the IQ panel • Don’t place in high temperature environments such as the attic or garage. © America’s Best Alarms, 2014...
  • Page 16 OTHER Z-WAVE DEVICES SUPPORTED DEVICES The following devices have been tested and approved for use with the Qolsys IQ Panel. LIGHTING & APPLIANCE CONTROL Brand Image Device Model(s) Smart Socket QS-2100-P01 Light & Appliance Module LPM-15 Dimmer Module LDM-15 Energy Monitoring Lamp Module...
  • Page 17 OTHER Z-WAVE DEVICES © America’s Best Alarms, 2014...
  • Page 18 OTHER Z-WAVE DEVICES For these devices and more visit: AmericasBestAlarms.com Click: Support © America’s Best Alarms, 2014...

  • Page 19: Let's Get Connected

    LET’S GET CONNECTED Call: 1-800-764-5023 TO ACTIVATE YOUR ALARM ACTIVATION HOURS: 9:00AM EST - 5:00PM EST Upon activation, you will recieve a username and password for access to: Compatible Devices Android Apple Blackberry Windows Download the Alarm.com Application today to take advantage of all of the exciting features that Alarm.com has to offer! Contact America’s Best Alarms @ 1-800-764-5023 with any questions or concerns.
