IQ PANEL

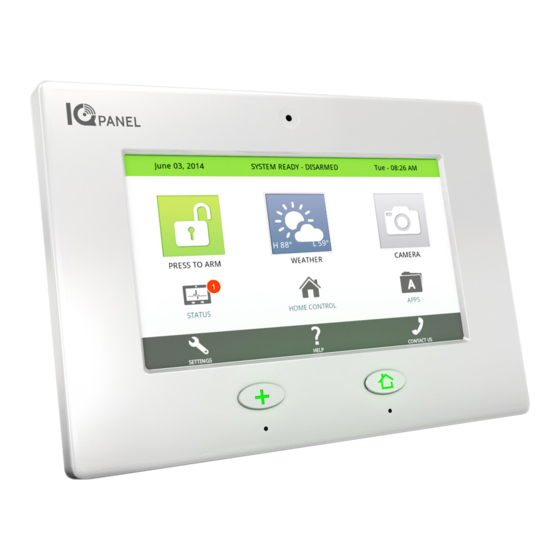

The Qolsys IQ Panel is a 7" touchscreen built with an
Android operating system, providing full security and
home control functionality in an easy to use interface.

INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQ PANEL and is the answer not in the manual?

Questions and answers

Related Manuals for QOLSYS IQ PANEL

Summary of Contents for QOLSYS IQ PANEL

  • Page 1: Installation Manual

    IQ PANEL The Qolsys IQ Panel is a 7” touchscreen built with an Android operating system, providing full security and home control functionality in an easy to use interface. INSTALLATION MANUAL...

  • Page 2: Power Supply

    Features accessible to users and installers alike are outlined in the IQ Panel User Guide. The information contained is confidential and proprietary, and is solely owned by Qolsys Inc. Any reproduction, modification or distribution without permission is strictly prohibited.

  • Page 3: Table Of Contents

    20- Installation Settings 52- Security and Arming 71- User Management 86- Important Information 21- Security Account 54- Image Settings 72- Home Screen SPECIFICATIONS 23- Security Sensors Appearance 89- Hardware Specifications QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 4 INSTALLATION HARDWARE...

  • Page 5: Hardware

    HARDWARE EXTERIOR FRONT Panel Camera 7” LCD Resistive Touch Screen Emergency Button Microphone Home Button QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 6: 6- Exterior Back

    HARDWARE EXTERIOR BACK Mounting holes Cooling Vents Mounting plate SD Card Slot Two-Way Voice Speaker Panel Sounds Speaker Rear access opening Siren QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 7 Microphone Connector The battery should NEVER be disconnected from the panel. Failure to comply may *CAUTION result in data corruption, panel failure, and a void of the manufacturer's warranty QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 8: 8- Wiring Diagram

    HARDWARE WIRING DIAGRAM QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 9: 9- Installing The Back Plate

    (not position rear access provided) opening over the location of your wires QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 10: 10- Powering The Panel

    CAUTION: Once connected, DO NOT unplug polarity on these wires the battery. Disconnecting the battery may may cause damage to result in data corruption or panel failure and a the IQ Panel. void of the manufacturer warranty. QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
...

  • Page 11: 11- Mounting The Hardware

    30-45 seconds WARNING: DO NOT CONNECT TO A RECEPTACLE CONTROLLED BY A SWITCH OR HIGH VOLTAGE. QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 12 INSTALLATION SOFTWARE...

  • Page 13: 13- Home Screen Overview

    The Primary User Interface contains the panel apps, and the footer holds settings, help, and the dealer contact portal. Header or “Status” Bar Home Primary User Interface Footer or “Help” Bar QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 14: 14- Header Or "Status" Bar

    The red header is labeled “System Armed” and indicates the arming type (Stay or Away) is running on battery only Note: When armed, the home button and panic button will glow red. QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 15 Help Access video tutorials, FAQs, and URLs for other documentation. Contact Us Access security provider contact information including phone numbers, website and e-mail address for support and service. QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 16 12 34 Access to all Access to limited functions to install functions, including and customize the editing sensor panel and names, user peripherals management, and connecting to Wi-Fi QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 17: 17- Settings Menu

    SOFTWARE SETTINGS MENU FIND IT Settings Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 18 INSTALLATION INSTALLATION...
  • Page 19 INSTALLATION INSTALLATION FIND IT Settings Installation Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 20: 20- Installation Settings

    Select how long to wait before indicating in the “Status” app that a device is Supervisory non-responsive. (4 , 12, or 24 hours) Signals Installation Settings Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 21: 21- Security Account

    -Entry delay: 5 to 240 seconds, Exit delay: 5 to 254 seconds Weather Temperature Select whether weather app displays in Fahrenheit or Celsius Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 22 INSTALLATION SECURITY ACCOUNT FIND IT Setting Default Description Change the panel user interface into one of several different Languages English languages. NOTE: Installation menu will ALSO be changed Optional layout(s) for home screen. NOTICE: Instructions in this Home Screen Theme 2 document are based on Theme 2.

  • Page 23: 23- Security Sensors

    Security Sensors Edit Sensor Sensor Group Make changes to existing sensors Quick reference to all sensor groups and their actions Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 24 Auto Learn Sensor 6. Click “Add” to save the information and complete the process. Adjustments can be made later from “Edit Sensor” Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 25: Add Sensor

    7. Indicate whether you want voice prompts on or off Add Sensor 8. Click “Add” to save the information and complete Installer Code Access the process. Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 26: 24- Autolearn Sensor

    Medical Pendant Smoke Detector Settings CO Detector Hardwire Translator Installation Wireless Translator Heat Security Sensors Water Freeze AutoLearn Tilt Sensor Image Sensor Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 27: Sensor Name

    When you select the sensor name field you can choose from a variety of preset sensor names by scrolling up and down or to create a custom description. Settings Installation Security Sensors AutoLearn Sensor Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 28 “Done. ” Touch the empty box Settings Name appears Type sensor name, in the box Installation touch “Done” Security Sensors AutoLearn Sensor Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 29: 29- Chime Type

    CHIME TYPE FIND IT Because of the dynamic nature of the way the IQ panel pairs and understands each individual sensor, you can program each to have a unique chime or even turn chiming off for that individual sensor. To customize your chime for a particular sensor touch the chime type button and choose from the list.
  • Page 30 “Security Sensors. ” Installation You can also find descriptions of Security Sensors how these sensor groups behave AutoLearn on the following pages. Sensor Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 31: 30- Sensor Groups

    SENSOR GROUPS DOOR/WINDOW GROUP NAME SUPERVISED SCENARIO Allows you to exit during countdown after selecting arming type Entry-Exit- Normal and when opened starts countdown before triggering alarm. Delay Times determined by “Normal Entry-Exit Delay” in “Timers” app. Allows you to exit during countdown after selecting arming type Entry-Exit- Long Delay and when opened starts countdown before triggering alarm.
  • Page 32 Regardless of arming state, this sensor triggers a chime when it Away- Delay Motion detects motion Triggers a local alarm if motion is detected regardless of arming Safety Motion state (non-reporting to central station) QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 33 GLASS BREAK GROUP NAME SUPERVISED SCENARIO Glass Break Arms IQ Glass in both “Stay” and “Away” mode Glass Break -Away Only Arms IQ Glass in “Away” mode only QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 34 Worn as a wrist watch or pendant, the button(s) is/are programmed to Mobile Medical trigger a medical panic Installed in a fixed location such us under a desk, the button(s) is/are Fixed Medical programmed to trigger a medical panic QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 35 NAME SUPERVISED SCENARIO Triggers an alarm when sensor detects smoke/rapid rise in Smoke-Heat heat. CO DETECTOR GROUP NAME SUPERVISED SCENARIO Triggers an alarm when sensor detects Carbon Monoxide. QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 36 Triggers an alarm when sensor is tampered in “Stay” or Takeover “Away” mode WIRELESS TRANSLATOR GROUP NAME SUPERVISED SCENARIO Triggers an alarm when sensor is tampered in “Stay” or Translator “Away” mode QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 37 If you are pairing the IQ TempH20, use “Multi-Function-1” All other sensors, use “Flood-2” FREEZE GROUP NAME SUPERVISED SCENARIO Freeze Triggers an alarm when sensor detects low temperatures QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 38 Delay alarm. Times determined by “Long Entry-Exit Delay” in “Timers” app. Panel will chime if the garage is opened, regardless of arming Garage Tilt- Safety Tilt state (non-reporting) QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 39: 39- Voice Prompt

    Installation (on/off). Security Sensors With the IQ Panel you can toggle each of these on or off for each individual sensor, leaving voice prompts on some doors while turning them off on others. AutoLearn Sensor NOTE: Sensors programmed as “Safety Sensors”...
  • Page 40 In the Z-Wave device app you add, edit, or remove Z-Wave devices. Delete Device From Panel Remove a Z-Wave device from Add Device the IQ Panel’ s memory (does not Pair new devices clear the device’ s memory or require...

  • Page 41: 41- Add Z-Wave Device

    6. Click “Pair” to save the information and Management complete the process. Adjustments can be made Z-Wave later from “Edit Device” app Devices Add Device QOLSYS CONFIDENTIAL AND PROPRIETARY Installer Code Access PAGE OF
 Master Code Access © 1/15/14 ALL RIGHTS RESERVED...
  • Page 42 CLEAR DEVICE Clears the memory of a Z- Removes a Z-Wave device from panel Wave device so it can be memory. paired with the IQ Panel Press the button on the Z-Wave device to Settings complete the process. Select the check mark next to the device and (Note: this does not clear touch “Delete.

  • Page 43: Z-Wave Settings

    INSTALLATION Z-WAVE SETTINGS FIND IT The Z-Wave Settings allows an installer to set the maximum number of Z-Wave devices allowed on the IQ Panel in each of 4 categories. Setting Default Description Thermostats Maximum number of supported Thermostats the panel will allow (1-5)
  • Page 44 Delay Exit: 60
 When SIA Limits enabled: 45 to 254 seconds When SIA Limits disabled: 05 to 254 seconds Timer Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 45 INSTALLATION SOUND FIND IT The IQ panel sound settings can be found here as well as inside the “apps" section of the panel on the home screen. Master Code has access to this section as well as installer code. Setting...
  • Page 46 Determines the amount of time between each trouble beep emitted. Time can be set Timeout between 3-60 minutes. (Default is 3 minutes.) Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 47: 47- System Logs

    Info: Record all generic, non-customer related information
 Debug: Record diagnostic messages, Info, Warnings, Errors, and Fatal issues
 Installer Code Access Verbose: Record all non-customer identifying information Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 48: 48- Upgrade Software

    INSTALLATION UPGRADE SOFTWARE FIND IT The IQ panel can upgrade it software using one of three channels: Wi-Fi, cellular, or SD card. Setting Description Delete All Sensors and Devices Erases all the security sensors and Z-Wave devices from the system’ s memory.
  • Page 49 Description Automatic Upgrade Allow the panel to update software itself as new versions become available Automatic Upgrade Interval Determine how often the IQ Panel should look for software updates on the server. (Default is every 24 hours) Settings Installation Upgrade...
  • Page 50 INSTALLATION SECURITY SETTINGS FIND IT Settings Installation Security Settings Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 51: Security Settings

    Allow Master Code To Settings Disabled Allow the master code to access these features and settings Access Siren and Alarms Siren and Alarms QOLSYS CONFIDENTIAL AND PROPRIETARY Installer Code Access PAGE OF
 Master Code Access © 1/15/14 ALL RIGHTS RESERVED...
  • Page 52 “Stay” mode and Arming Arm Stay No Delay: Enabled Arm stay immediately with no countdown timer Installer Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY Master Code Access PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 53 Allow Master Code to Access Disabled Allow the master code to access these features and settings Security and Arming Settings Installation Security Settings Security and Arming QOLSYS CONFIDENTIAL AND PROPRIETARY Installer Code Access PAGE OF
 Master Code Access © 1/15/14 ALL RIGHTS RESERVED...

  • Page 54: Image Settings

    Allow Master Code to Disabled Allow the master code to access these features and settings Security Access Image Settings Settings Image Settings QOLSYS CONFIDENTIAL AND PROPRIETARY Installer Code Access PAGE OF
 Master Code Access © 1/15/14 ALL RIGHTS RESERVED...

  • Page 55: System Tests

    SYSTEM TESTS...

  • Page 56: 56- System Tests

    Cellular Test Z-Wave Test Tests Test the panel’ s connection to Test the panel’ s the cellular network communication with individual Z-Wave devices Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 57: 1/15/14 All Rights Reserved

    WI-FI TEST FIND IT Wi-Fi Test The Wi-Fi test checks the IQ panel’ s connection to your network. Before running this test, be sure to connect the panel to the network. See “customization” section for directions on connecting to Wi-Fi.
  • Page 58 “Tampering” or opening a sensor will test it’ s connection to the panel. Settings Results The panel will audibly report and display the results: Installation System Tests Sensor Test Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 59 Verizon network. This should already have Cellular been completed at the factory and if attempted Test will generate a pop up warning. Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 60 Step 3: Select the test you want to run. Image PIR Test checks the motion sensor Sensor Test Request Peek In tests the camera (check Installer Code Access results in Camera App) Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 61: Z-Wave Test

    Successful test will result in a “Normal” result and indicates the day and time of the test. System Tests Z-Wave Test Installer Code Access Note: If test fails, please delete the device and re-pair it with the panel. Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 62 CUSTOMIZATION CUSTOMIZATION...

  • Page 63: Wi-Fi

    Display total space, available space and the option to unmount an inserted SD Card Settings Date & Time Manually adjust the panel’ s date and time Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 64 Settings” followed by Settings Settings” “Wi-Fi Settings” Any available networks will appear under “Wi-Fi Networks” Select the desired network Enter the password (if required) Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 65 Alarm.com services. LOCATION Weather reporting is based on location as indicated by the zip code entered into Alarm.com when the account is created. QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 66 START PHOTO FRAME Starts Photo Frame Apps immediately Photo Frame SETTINGS Toggle settings like slide transition, duration, effects, etc. LOAD FROM SD CARD Add your own photos QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 67 Card will slide all the way in. “Settings” then touch “System Settings” “Photos” To remove, push gently and card will spring out. then “SD Card” and select “Unmount” QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 68: Photo Frame Settings

    Automatically 6:00 AM Determines the time when the display “wakes up" after sleeping. (use this turn on display feature to turn the LCD back on in the morning) QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 69: Custom Names

    Edit Sensor 6. Remember to touch “Save” or “Add” to complete the process and save your changes. 5. Tap “Done” to exit keyboard Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 70: Edit Chimes

    Selecting the “Edit” icon allows you to see the current chime type and “Play” the chime. To change it, tap the chime type and select a different chime from the list. When done, touch “Save” QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 71: User Management

    CUSTOMIZATION USER MANAGEMENT FIND IT The IQ panel can hold up to 242 user codes. Only installers and master users can access this app and once created you can edit all information but user type (Installer, Master, User, Guest) User Type...
  • Page 72 Theme 2 Theme 1 Three icons along the Six icons along the bottom bottom of the home screen. of the home screen. Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 73: Load Help Videos

    3- Click “OK” to continue. Once the boxes next to the existing videos with complete, the video will appear in Installer Code Access video name new ones. your video library Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 74 TROUBLESHOOTING...
  • Page 75 Shows which version of the Android system the panel has currently installed Hardware version Displays the version of the panel hardware Installer Code Access System PIC Version Displays the panel’ s PIC version Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 76 Shows the panel’ s PCA serial number ICCI ID Displays the panel’ s ICCI ID number System Part Number Displays the Qolsys part number for the device System Serial Number Displays the system’ s serial number Settings RF PIC Version Displays the system’...
  • Page 77 Displays the status of true cellular radio Settings Displays the system’ s IMEI/MEID. The last 10 digits is the Alarm.com radio serial IMEI/MEID number About Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 78 Settings 4- Touch "Upgrade Software" 5- Touch "Upgrade Using Network"  The IQ Panel will check for the latest software update. Installation If your panel is up to date you will see a message confirming that you have the most recent software version.
  • Page 79 Touch “Installation” Touch “Upgrade Software” Make sure the “Automatic Updates” button is checked. Settings Installation SUPPORT Upgrade Software QUESTIONS? Contact us at techsupport@qolsys.com Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 80 4- Drag all files to your SD card.  Delete ANY other files, and safely remove the SD card from your computer
 5- Slide your SD card into the slot on the back left of the IQ Panel.
 6- Touch “Settings” and enter a valid installer code (default is 1111)
...

  • Page 81: Moving The Panel

    Settings 5.Disconnect the power data corruption and/or panel failure. Power Down SUPPORT QUESTIONS? Contact us at techsupport@qolsys.com Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 82: Panel Reboot

    IMPORTANT: Failure to follow these steps properly may Settings result in data corruption and/or panel failure. Panel Reboot SUPPORT QUESTIONS? Contact us at techsupport@qolsys.com Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 83 30 sec IMPORTANT: Performing a hard reset may result in data corruption and/or panel failure. Home Only use this when absolutely necessary. SUPPORT QUESTIONS? Contact us at techsupport@qolsys.com QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 84: System Monitor

    The system monitor allows you to see the Wi-Fi connection and information, as well as the other services running in the panel. Settings System Monitor Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 85 Acceptable File types: .mov .mp4 .m4v Settings Total storage space: 200MB Load Help Videos NOTE: videos look best in aspect ratio 800x350 Installer Code Access Master Code Access QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...

  • Page 86: Legal

    LEGAL IMPORTANT Important warning and information can be found on the interior and exterior of the panel’ s mounting plate. QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
 © 1/15/14 ALL RIGHTS RESERVED...
  • Page 87 —Increase the separation between the equipment and receiver.  —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  —Consult the dealer or an experienced radio/TV technician for help QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE OF
...
  • Page 88 Cet appareil numérique de la classe [B] respecte toutes les exigences du Réglement sur le matériel brouilleur du Canada. IMPORTANT! Changes or modifications not expressly approved by Qolsys Inc. could void the user’ s authority to operate the equipment. CAUTION! This equipment complies with radiation exposure limits set forth for uncontrolled environment. The antenna(s) used for this transmitters must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.

  • Page 89: Specifications

    SPECIFICATIONS Items Parameters IQ Panel Platform Android OS Android 2.2.2 LCD Display Size 7 inch LCD Resolution 800x480 Brightness 320 cd/m2 24bit Touchscreen Type Resistive Touch Points Single touch Wireless WiFi WiFi 11b/g/n, 2.4Ghz,1x1 Zigbee Proprietary Image Sensor Z-Wave Cellular...
  • Page 90 SPECIFICATIONS Items Parameters IQ Panel Camera Front Camera 0.3MP, Fixed Focus Microphone Microphone Embedded Omni-directional Microphone + High Gain for 2-way voice Security Siren Built-in Siren with sound pressure level at 91 dba at 3.05m (conforms to UL 1023) Tamper...
  • Page 91 Document#: IQPANEL-IM-02-12 Conforms to UL Std. S985, 1023. & 1635 Revision Date: 2/12/14 Certified to ULC Sub C1023 & ULC Std S545 Qolsys Part #: QS-9004-VRZ Qolsys Inc. proprietary. Software version: 1.3.1 Reproduction without permission is not permitted.
