USER MANUAL
ABOUT THIS DOCUMENT

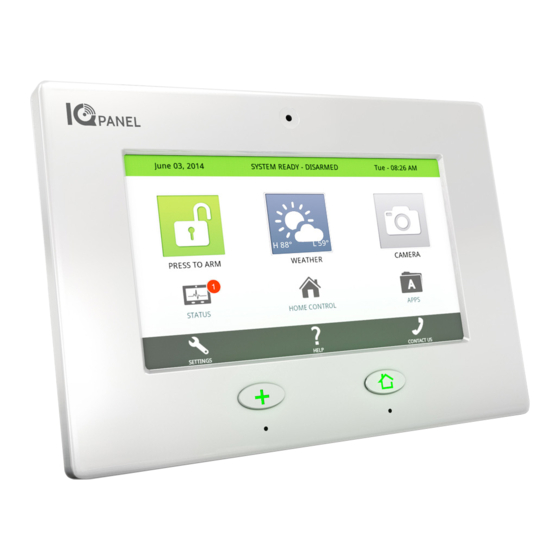

This document describes the User Interfaces and controls for the Qolsys home
control and automation system. The Home Control system is a centralized smart
LCD control panel (IQPanel) that enables and simplifies home security, home control,
energy management, home healthcare, and other services. The smart Control Panel
uses wireless technology to communicate with a broad set of wireless peripherals
and sensors. The panel can also communicate with a centralized Service Provider
system, smart phone or a remote system via cellular wireless or broadband
technologies. The panel is accessible via an easy to use touch screen interface as well
as from any web browser or smart phone. The control panel platform uses an ARM
processor and Android operating system.
Qolsys Inc. proprietary.
Reproduction without permission is not permitted.
CERTIFICATION
Document#: IQPANEL-UM-06-14
Revision Date: 6/3/14
Qolsys Part #: QS-9004-VRZ
Software Version: 1.3.4
Conforms to UL Std. 1023, 985 & 1635
Certified to ULC Std. C1023 & S545
