QOLSYS IQ HUB User Manual
Hide thumbs
Also See for IQ HUB:
- Installation manual (112 pages) ,
- User manual (31 pages) ,
- Quick install manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for QOLSYS IQ HUB
Summary of Contents for QOLSYS IQ HUB

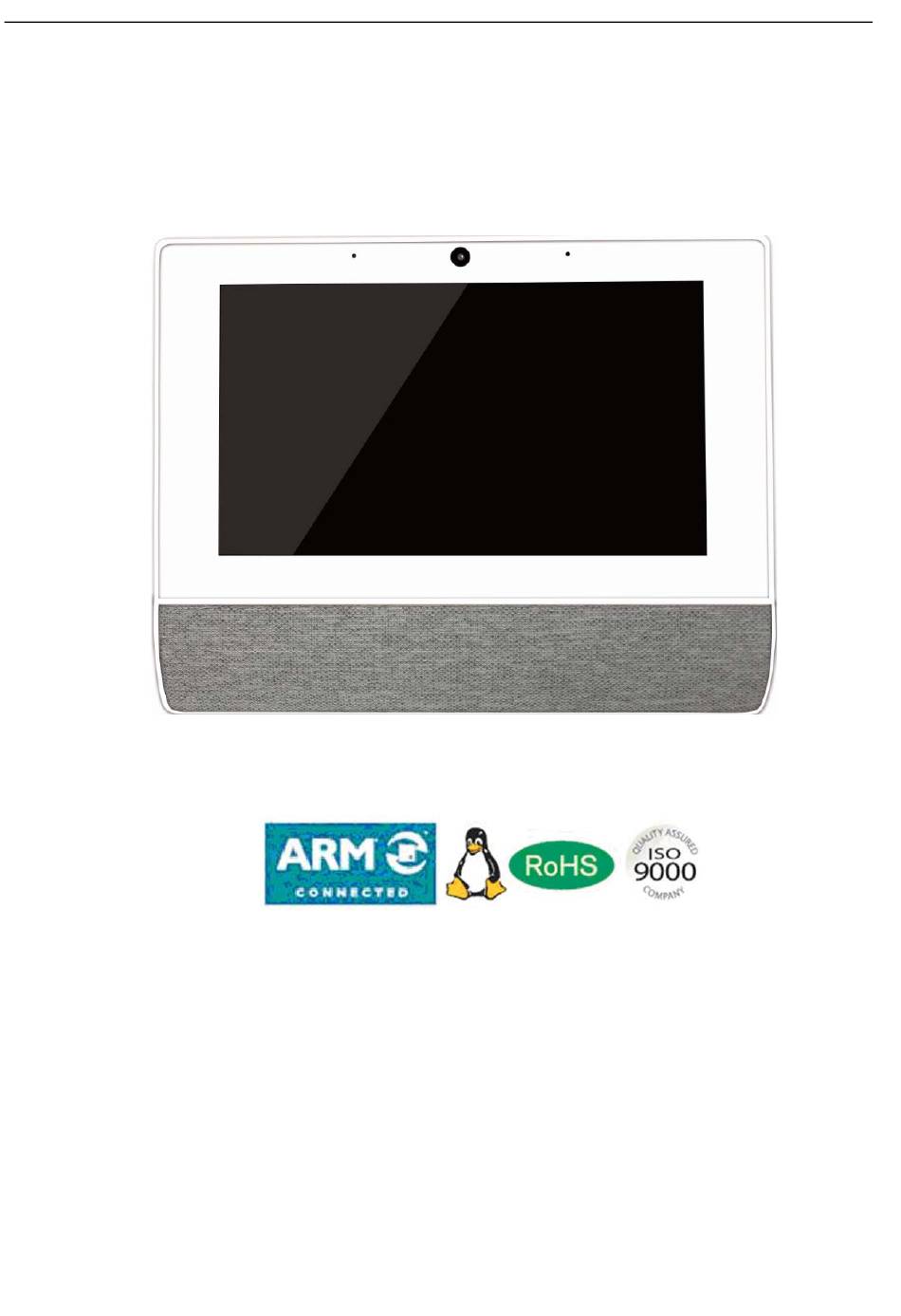

- Page 1 IQ Hubv1.1 IQ Hub User Manual Qolsys, Inc. All Rights Reserved...
-
Page 2: Table Of Contents
RODUCT SAGE NVIRONMENT OVERVIEW ................................9 ................................9 2.1 I NTRODUCTION .............................. 10 2.2 O RDERING NFORMATION IQ HUB HARDWARE INSTRUCTIONS ........................11 ..............................11 3.1 P RODUCT PPEARANCE ................................12 3.2 S PECIFICATIONS ............................13 3.3 I NTERFACE NSTRUCTIONS ................................... -
Page 3: Qolsys, Inc.contents
IQ Hub v1.0 SOFTWARE INSTRUCTIONS ............................ 17 ..............................17 4.1 B RIEF NTRODUCTION SAFETY INSTRUCTION ............................18... -
Page 4: Contents
IQ Hub v1.1 Revision History Version Description Date v1.0 First release 2019/03/08 V1.1 edition 2019/12/05... -
Page 5: Foreword
Qolsys, Inc. reserves all rights of this manual, including the right to change the content, form, product features, and specifications contained herein at any time without prior notice. -
Page 6: Statement
1.5 Limitation of Liability/Non-warranty For direct or indirect damage to this device or other devices of Qolsys, Inc. caused by failure of conforming to this manual or the safety instructions on device label, Qolsys, Inc. assumes neither warranty nor legal liability even if the device is still under warranty. -
Page 7: Precautions
IQ Hub v1.1 1.7 Precautions Pay attention to the product labels/safety instructions printed on silk screens.Do not try repairing this product unless declared in this manual.Keep away from heat source, such as heater, heat dissipater, or engine casing. Do not insert other items into the slot (if any) of this device. Keep the ventilation slot ventilated for cooling.System fault may arise if other items are inserted into this... -
Page 8: Safety Instructions For Power Cables And Accessories
Proper power source only Start only with power source that satisfies voltage label and the voltage necessary according to this manual. Please contact technical support personnel of Qolsys, Inc. for any uncertainty about the requirements of necessary power source. Power adapter Spec. -
Page 9: Warnings, Cautions And Notes
IQ Hub v1.1 Fault is still not solved after the operation according to the manual. 1.9 Warnings, Cautions and Notes Warning! Warnings indicate conditions, which if not observed, can cause personal injury! Caution! Cautions are included to help you avoid damaging hardware or losing data. e.g. - Page 10 IQ Hub v1.1 Second. Slide the device onto the wall bracket device attached on the wall...
-
Page 11: Overview
2 Overview 2.1 Introduction Thank you for choosing Qolsys, Inc.. It is our commitment to provide our valued customers with the embedded devices equipped with the state-of-the-art technology and the best product services. IQ Hub enables the interaction between operators/users and applications, connecting industrial control products such as wireless, transducer, battery inside, storage, etc. -
Page 12: Ordering Information
IQ Hub v1.1 2.2 Ordering Information 7’ TFT LCD 1024*600 RK-3368H, Octa-core 1.5GHz Speakerand MIC 3.7V/2600mAh battery CPA-G1A-UNA4 WIFI/BT Z-wave LTE-1 PowerG 5M Camera... -
Page 13: Iq Hub Hardware Instructions

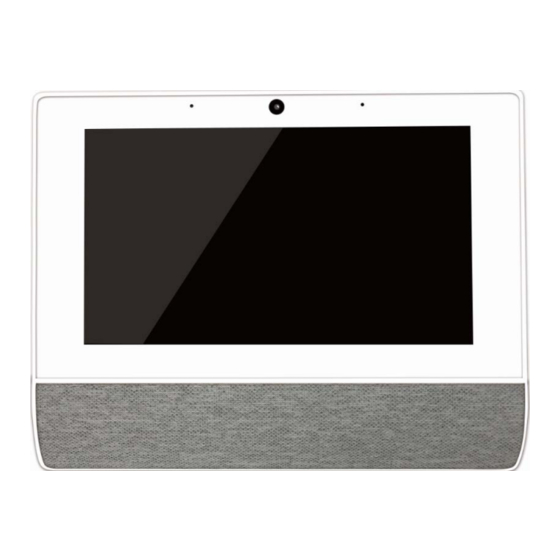

IQ Hub v1.1 3 IQ Hub Hardware Instructions 3.1 Product Appearance FrontView Back View... -
Page 14: Specifications
IQ Hub v1.1 3.2 Specifications Processor RK-3368H , ARM Octa-core Cortex-A53, Quad Core CPU,1.5GHz 2GB LPDDR3 Memory Flash 16GB EMMC Flash 7" TFT LCD Resolution 1024*600 24bit Color Display Colors 16.7M Display Brightness 300cd/m View Angle 85U/85D, 85L/85R Touch Screen... -
Page 15: Interface Instructions
IQ Hub v1.1 DC Power Supply 12V,1.0A Dimensions 196.4x155x25.6mm Mechanical Weight 0.65 Kg Operating Temperature: 0℃ ~ +40℃ Temperature Storage:-30℃ ~ +70℃ Environment Condition Humidity 10-85%RH(Non-Condensation), operating and storage 3.3 Interface Instructions Front Camera Bi-color LED Speaker Front View... -
Page 16: Dimension
Turn IQ Hub on from power-off Press and hold the Power/Sleep/Wake button until logo appears. Never apply excessive pressure to a button, because this may cause unexpecteddamage that is not covered under the warranty IQ Hub cannot be turned off by pressing the button... -
Page 17: Interface Description
3.6.9 Front Camera IQ Hub has the ability to take beautiful photo and record the high resolution video. 3.6.10 RTC IQ Hub has internal RTC so the system time can keep a long time if we didn’t turn it on. -
Page 18: Packing List
IQ Hub v1.1 3.7 Packing List Part Description Quantity Remark Power adapter CPA-G1A-UNA4 1 PCS Wall mount bracket... - Page 19 IQ Hub v1.1 4 Software Instructions 4.1 Brief Introduction IQ Hub has been pre-loaded with Android image, so that the system can run Androidtool to flash the system image...
- Page 20 Qolsys, Inc. intends to provide all necessary information to install and handle the IQ Hub in this manual. Because of the complexity of this product and its various uses, we do not guarantee that the given information is complete.
- Page 21 IQ Hub v1.1 5. Keep this equipment away from humidity. 6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage. 7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.
- Page 22 Caution signs in this manual remind of possible danger. Please comply with relevant safety tips below each sign. Meanwhile, you should strictly conform to all safety tips for operation environment. Notice Considering that reasonable efforts have been made to assure accuracy of this manual, Qolsys, Inc.
- Page 23 Qolsys, Inc. reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in forms of photocopy, tape, broadcast, e-document, etc.
- Page 24 IQ Hub v1.1 (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, science et développement économique au Canada applicables aux appareils radio exempts de licence.
- Page 25 IQ Hub v1.1 Office: Qolsys, Inc. Address: 1900 The Alameda 4th Floor, San Jose, California 95126, United States Email: info@qolsys.com Tel: (855) 476-5797 Manufacturer: Chengdu Vantron Technology, Ltd.
