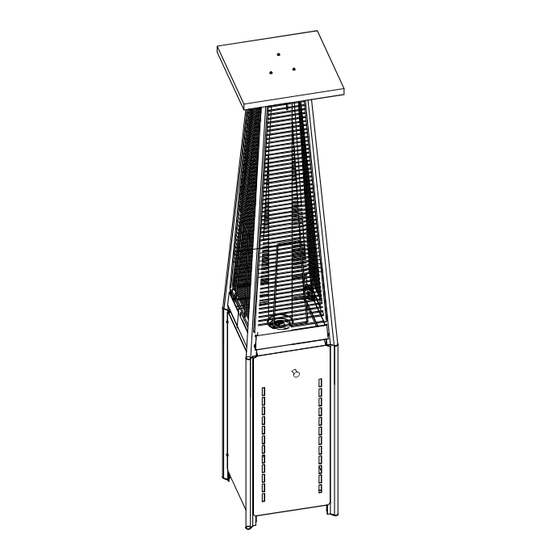

FLAME HEATER
PATIO HEATER INSTRUCTION MANUAL
Conforms to ANSI
STD Z83.26a-2008
Certified to CSA
STD 2.37a-2008
5000199
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
HAZARDOUS FIRE OR EXPLOSION MAY RESULT IF
INSTRUCTIONS ARE IGNORED.
It is the consumer's responsibility to see that the
patio heater is properly assembled, installed, and
taken care of. Failure to follow instructions in this
manual could result in bodily injury and/or
property damage.
vapours and liquids in the vicinity of this or any
other appliance.
•Any LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance
FOR YOUR SAFETY IF YOU SMELL GAS:
1.T
3.Do not operate any electrical appliances
4.Ventilate the area.
5.Check for leaks as detailed in this manual.
6.If odour persists, contact your dealer or gas
supplier immediately.
For customer service, parts
or warranty issues:
Call 1-800-561-5550
or e-mail customercare@jrhome.com
FOR OUTDFOOR USE ONLY | USES PROPANE LPG ONLY
RETAIN THIS MANUAL FOR REFERENCE
Model no. KLD7001S, KLD7001SS
Item no. PH-F-121-BK MO, PH-F-121-SS MO
!
WARNING
!
PRECAUTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KLD7001S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paramount Fitness KLD7001S

Summary of Contents for Paramount Fitness KLD7001S

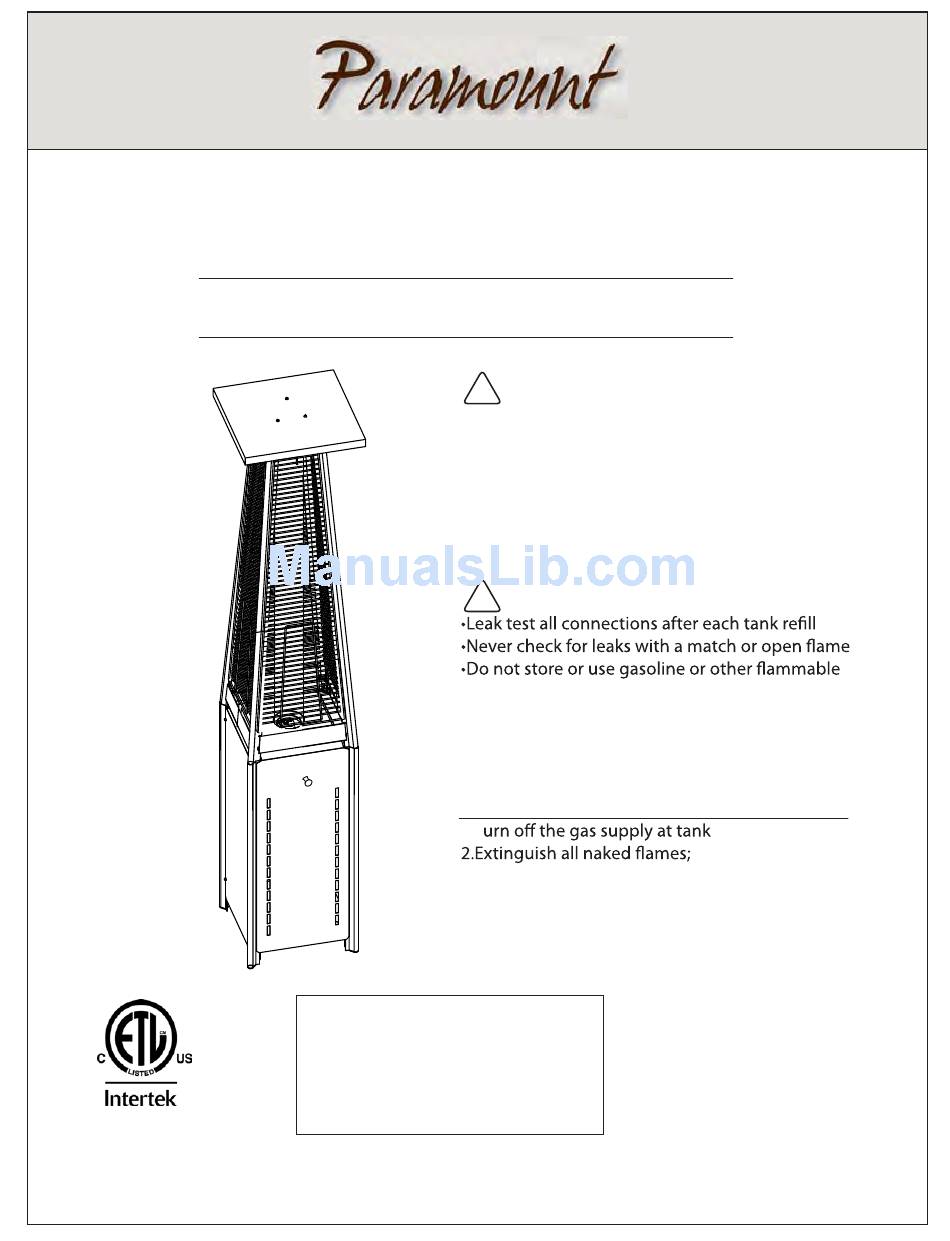

  • Page 1 Model no. KLD7001S, KLD7001SS Item no. PH-F-121-BK MO, PH-F-121-SS MO FLAME HEATER PATIO HEATER INSTRUCTION MANUAL WARNING HAZARDOUS FIRE OR EXPLOSION MAY RESULT IF INSTRUCTIONS ARE IGNORED. It is the consumer’s responsibility to see that the patio heater is properly assembled, installed, and taken care of.

  • Page 2: Tools Required

    DANGER CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in a enclosed space such as a camper, tent, car or home. WARNING TOOLS REQUIRED : Improper installation, adjustment alteration, services or maintenance can cause...
  • Page 3 PRECAUTIONS PLEASE READ THE FOLLOWING SAFETY RULES WARNING WARNING This appliance must only be used outdoors Using this product in an enclosed area may cause injury, death or property damage. Read instructions before use. This appliance must be installed in accordance with your local area’s regulations and bylaws •...
  • Page 4 • Do not obstruct the ventilation holes of the cylinder housing. • In case of violent wind particular attention must be taken against tilting of the appliance. • Storage of the heater indoors is permitted only if the cylinder is disconnected and removed from the appliance.

  • Page 5: Leak Testing

    Warning LEAK TESTING do not smoke WARNING while leak testing Gas connections on the appliance are leak tested at the factory prior to shipment. Possible mishandling of the appliance during the shipment might contribute to product integrity as a whole. A complete gas leakage test must be performed again at the installation site.

  • Page 6: Part List

    Part list Part no Description Part no Description Reflector side panel upper plate bottom plate glass tube wheels protection guard front panel upper leg stability ring regulator and hose rubber ring middle plate M6x12 hook panel M5x10 burner Bolt lower leg Wing nut Bolt wing nut...

  • Page 7: Preparation For Assembly

    PREPARATION FOR ASSEMBLY Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with Parts List as shown on page 6 of this manual. If any part is missing or damaged, do not attempt to assemble this product. Contact customer service for replacement parts.
  • Page 8 - 7 -...
  • Page 9 - 8 -...
  • Page 10 - 9 -...
  • Page 11 - 10 -...
  • Page 12 - 11 -...
  • Page 13 - 12 -...
  • Page 14 - 13 -...

  • Page 15: Operation

    OPERATION PREPARATION: You will need to purchase a propane gas cylinder designed to be used with the regulator purchased or supplied. For correct operation Hose of the gas system follow the instructions supplied with the regulator Connector supplied or purchased. Connect the hose to the hose connector in the control box.

  • Page 16: Cleaning And Maintenance

    MAINTENANCE / STORAGE CLEANING & MAINTENANCE: To enjoy years of outstanding performance from your heater make sure you perform the following maintenance routines on a regular basis: • Keep exterior surfaces clean: - While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all times.

  • Page 17: Troubleshooting

    TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION Gas valve may be OFF Turn the gas valve ON Pilot will not light Fuel tank is empty Air in supply system Purge air from lines Loose connection Pilot will not stay on Clean dirty area Debris around pilot Tighten connections Loose connection...

  • Page 18: Warranty

    WARRANTY For questions, concerns or problems with our product please email our customer service department: customercare@jrhome.com or call 1-800-561-5550. DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE. WARRANTY This product is inspected, tested and carefully packaged to minimize the chance of damage during shipment.
