Summary of Contents for TYROLIT Hydrostress WSE2226

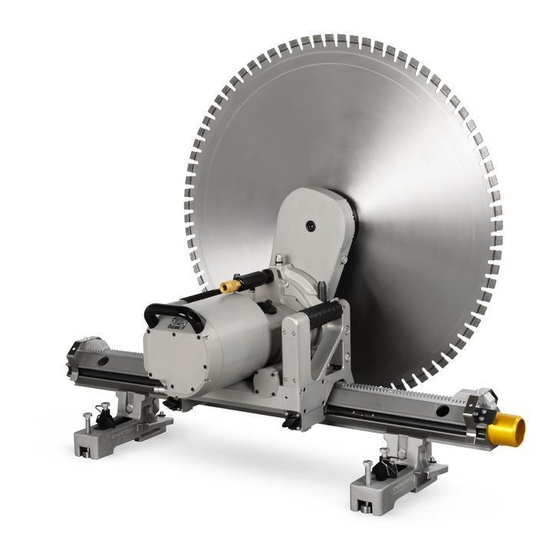

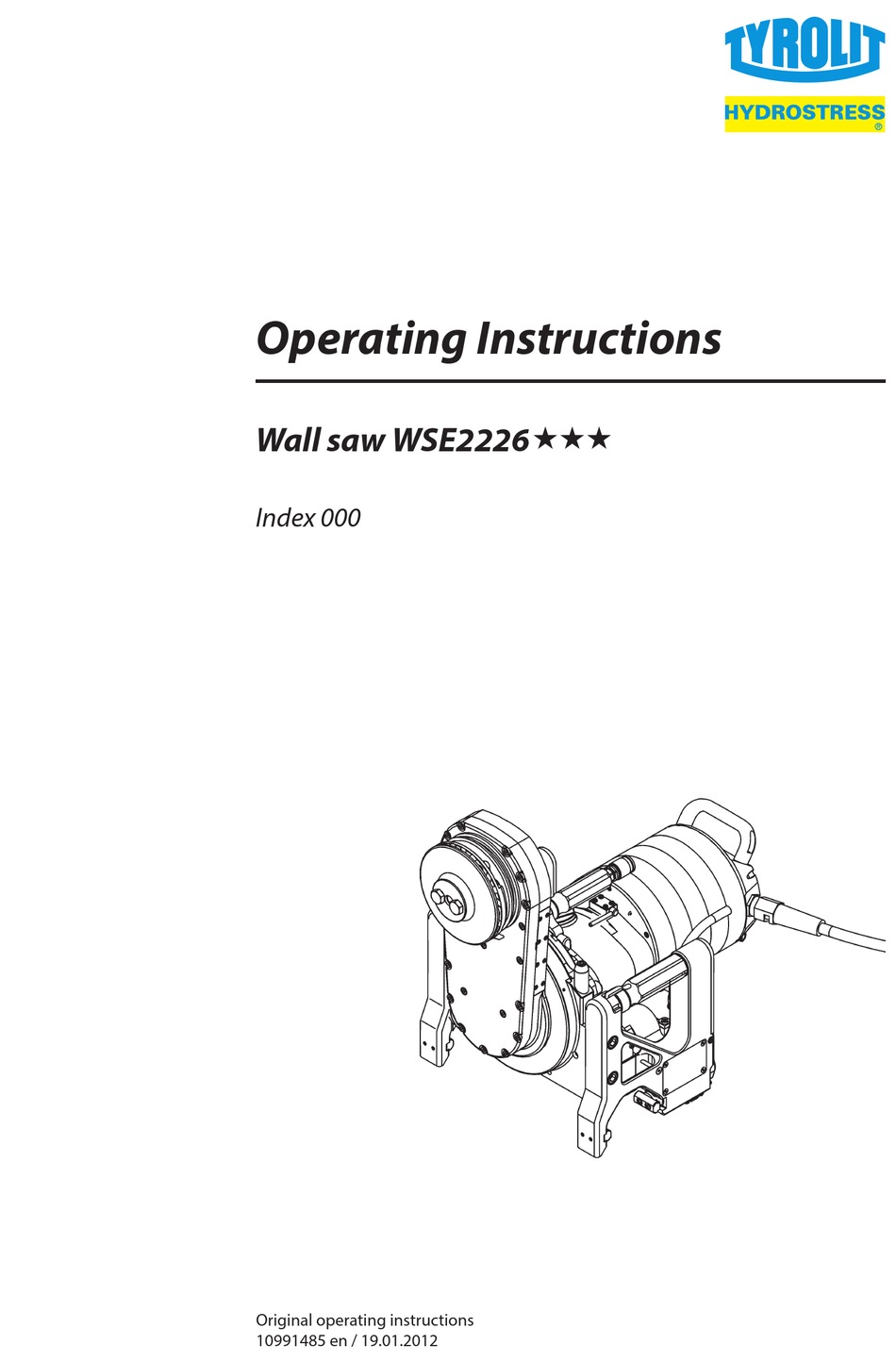

  • Page 1: Operating Instructions

    Operating Instructions Wall saw WSE2226 Index 000 Original operating instructions 10991485 en / 19.01.2012...
  • Page 2 Any repair work must be carried out by trained personnel only. Our aftersales service is available to help ensure that your TYROLIT Hydrostress units remain in perfect working order.
  • Page 3 X Always use the blade guard when operating the wall saw. DANGER Serious injury or material damage as a result of uncontrolled movements of the wall saw X Never connect or disconnect cables when the control unit is switched on. Wall saw WSE2226 Page 3...
  • Page 4: Wall Saw System

    16 Blade guard holder 7 Cover 17 Water - Bypass 8 Blade guard holder 18 Locking coupling handle 9 Water bypass line changeover handle 19 Drive motor grip 10 Saw blade fixing central screw 20 Gearbox Page 4 Wall saw WSE2226...
  • Page 5: Assembly / Disassembly

    TYROLIT Hydrostress AG Assembly / Disassembly Place the wall saw on the guide rail Wall saw WSE2226 Page 5...
  • Page 6 TYROLIT Hydrostress AG Guide prism fine adjustment Page 6 Wall saw WSE2226...
  • Page 7: Mounting The Drive Motor

    TYROLIT Hydrostress AG Mounting the drive motor Wall saw WSE2226 Page 7...
  • Page 8: Mounting The Saw Blade

    Mounting the saw blade DANGER Death or serious injury can be caused by escaping saw blades! X Only use original screws and bolts from TYROLIT Hydrostress AG. DANGER Serious injury can be caused by sudden start-up of the saw blade X Switch off the control unit before working on the saw blade.
  • Page 9 TYROLIT Hydrostress AG 3.4.4 Fixing for normal cuts with saw blades bigger than Ø 1000 mm 3.4.5 Fixing with flush cut Wall saw WSE2226 Page 9...
  • Page 10 Securing the saw blade unit DANGER Death or serious injury can be caused by escaping saw blades! X Check whether the sleeve and central screw are countersunk. X Tighten the central screw to a torque of 60 Nm. Page 10 Wall saw WSE2226...
  • Page 11: Blade Guard

    X Lift out the saw blade unit to the top when removing it. 2. Disassemble the saw blade unit in the reverse order to the installation/assembly process. Blade guard 3.7.1 Mounting the blade guard X Mount the blade guard according to the instruction leaflet. Wall saw WSE2226 Page 11...
  • Page 12: Selecting Gear

    Select the switch position in accordance with the size of the saw blade. Never use force, and always change over with the drive motor stationary. If the gear does not engage, rotate saw blade until the switch can be moved to the required gear. Page 12 Wall saw WSE2226...
  • Page 13 TYROLIT Hydrostress AG Connecting the wall saw to the control unit 9 The control unit is isolated from the power supply. 9 Connectors/plugs are clean. 9 Cables are undamaged Wall saw WSE2226 Page 13...
  • Page 14: Operation

    TYROLIT Hydrostress AG Operation The WSE2226 wall saw is turned into a wall sawing system by adding suitable TYROLIT Hy- drostress components. Information on safe working with wall saw systems can be found in the «Wall Saw Safety Manual / System Description».
  • Page 15: Water Supply

    TYROLIT Hydrostress AG Water supply Wet and dry cut The WSE2226 wall saw can be used for wet and dry cutting. For dry cutting the water is led away via a bypass after cooling the main motor. Water connection Parameter...
  • Page 16: Servicing And Maintenance

    X Blow out water Saw blade X Clean with water X Check for wear Service X To be performed by TYROLIT Hydros- After 100 / 300 / 500 / 700 hours tress AG or an authorised workshop Page 16 Wall saw WSE2226...
  • Page 17: Lubricating The Lock Unit

    TYROLIT Hydrostress AG Lubricating the lock unit Changing the gear oil The use of unsuitable oil can damage the wall saw. X Only use TYROLIT Hydrostress AG oil containers. Swivel arm: Oil container no. 10981362, 1dl Drive motor gears: Oil container no. 10992759, 2dl Wall saw WSE2226...
  • Page 18 TYROLIT Hydrostress AG Replacing the sliding prisms X Defective or worn guide prisms must be replaced with new guide prisms. Page 18 Wall saw WSE2226...
  • Page 19: Technical Data

    High-frequency, water-cooled, with quick-release device Feed motor / swivel motor Electric motor with self-inhibiting gear Flush cutting Quick-release flange ST without blade cover Normal cutting Quick-release flange ST with blade cover Water Water connection on motor Wall saw WSE2226 Page 19...
  • Page 20: Feed Motor, Travel

    Gear reduction i : 32 Voltage 36 V Feed Toothed wheel on rail Feed motor, swivel Electric feed motor with gearbox Parameter Value Gear reduction 1 : 21 Voltage 36 V Swivel range (swivel arm) 360° Page 20 Wall saw WSE2226...
  • Page 21: Saw Blades

    Sound pressure level L 89.8 dB(A)* Highest value of sound pressure L 111.4 dB pCpeak Acoustic power level L 109.8 dB(A)* Conditions for the measurement: * Saw blade Ø1600 mm not in cutting operation under full load Wall saw WSE2226 Page 21...
  • Page 22 (Ø800 / Ø1,000 / Ø1,200 / Ø1,600 / Ø1,800 / Ø2,000 / Ø2,200) 6.11 Water Water connection Parameter Value Pressure min. 2 bar / max. 6 bar Quantity At least 4 l/min Max. temperature 25 °C Page 22 Wall saw WSE2226...
  • Page 23: Eu Declaration Of Conformity

    17th December 2004 Applied standards EN 15027/A1:2009 EN 12100:2010 EN 60204-1/A1:2009 EN ISO 3744:2010 EN 55014-1/A1:2009 EN 55014-2/A2:2008 EN 6100-3-11:2000 EN 6100-3-12:2005 TYROLIT Hydrostress AG Witzbergstrasse 18 CH-8330 Pfäffikon Switzerland Pfäffikon, 28.04.2011 Pascal Schmid Head of Development Wall saw WSE2226 Page 23...
  • Page 24 TYROLIT Hydrostress AG Wall saw WSE2226 Page 24...
