Page 1: Operating Instructions

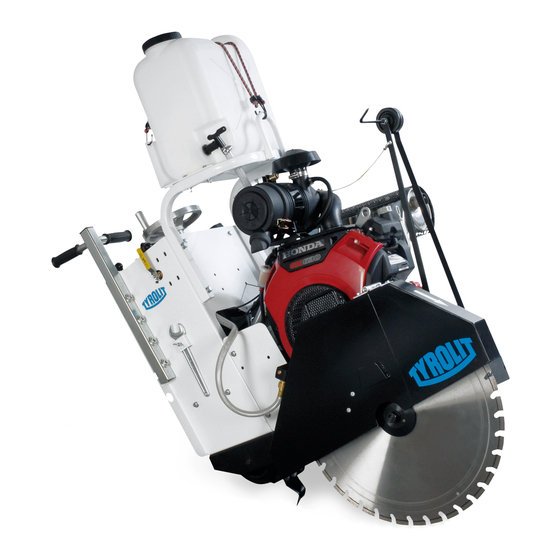

Operating Instructions Floor Saw FSG620 Index 001 10987477 en / 07.11.2008... - Page 2 Any repair work must be carried out by trained personnel only. Should you need more details concerning your TYROLIT Hydrostress unit in order to keep it in perfect condition, please contact our after-sales service for further information.
- Page 3 Failure to comply with the safety instructions in the "Safety Manual / System Description" may result in serious injury or death. ► Please ensure that the "Safety Manual / System Description for Floor saws" has been read and understood in full. Floor Saw FSG620 Page 3...
- Page 4 Operating console Main motor Saw blade Water tank Cut guide Blade guard Name plate Shaft cover Drive wheel 2.1 Saw blade drive Saw blade drive (schematic) Blade drive shaft Drive belt Main motor drive shaft Page 4 Floor Saw FSG620...
- Page 5 TYROLIT Hydrostress AG 2.2 Lift drive Lift drive (schematic) Movable spindle 2.3 Travel drive Travel drive (schematic) Drive shaft (main motor) Hydrostatic motors Wheel drive shaft Hydrostat drive belt Drive chain Drive wheel Floor Saw FSG620 Page 5...
- Page 6 ► When transporting by crane do not stand underneath suspended load. ► Always have the floor saw in your line of vision while it is being transported. 3.1 Hitching points Hitching points Crane hitching device Page 6 Floor Saw FSG620...
- Page 7 TYROLIT Hydrostress AG 4 Initial start-up 4.1 Fitting battery ► Fit battery (for type see Technical Data). Floor Saw FSG620 Page 7...
- Page 8 TYROLIT Hydrostress AG 5 Assembly / Set-up 5.1 Mounting grip ► 5.2 Mounting saw blade 1. Apply footbrake Page 8 Floor Saw FSG620...
- Page 9 When assembling the saw blade on the left-hand side, use the anchoring screw with the right-hand thread. ► Note the direction or rotation arrows on the saw blade. Anchoring screw *Note the direction of rotation Floor Saw FSG620 Page 9...
- Page 10 TYROLIT Hydrostress AG To prevent the saw blade rotating while being tightened, carefully place the saw blade on the floor. 5.3 Mounting saw blade on the other side 5.3.1 Disassemble the blade guard ► Page 10 Floor Saw FSG620...
- Page 11 Assembly of the blade guard and the shaft cover is performed in the opposite order to disassembly. 5.4 Connecting water line The water tank should also always be full when an external water supply is used. This ensures that the joint cutter exerts sufficient weight on the cutting material. ► Floor Saw FSG620 Page 11...
- Page 12 Feed gears coupling lever Choke EMERGENCY STOP switch 10 Operating hours meter Ignition key Foot brake Feed adjuster (forward / Battery main switch backward travel) 6.2 Checking oil level ► Note the details from the motor manufacturer. Page 12 Floor Saw FSG620...
- Page 13 ► Check the tank display (1) and top up with ROZ 95 petrol as necessary. 6.4 Positioning the floor saw 1. Release footbrake 2. Slide floor saw into the working position. 3. Fit the cutting guides to the floor saw. 6.5 Connecting the water supply ► Floor Saw FSG620 Page 13...
- Page 14 EMERGENCY STOP switch (3) has been released 1. Pull out choke (1) according to temperature. 2. Start motor with ignition key (2). 3. Push choke (1) back in. 4. Set motor speed with speed governor (4). Page 14 Floor Saw FSG620...
- Page 15 TYROLIT Hydrostress AG 6.7 Lowering / raising saw blade Symbol Significance Raising / lowering saw blade 1. Lower joint cutter with the hand wheel (1) to the desired cutting depth. 2. Engage locking pin (2) Floor Saw FSG620 Page 15...
- Page 16 Feed adjuster in the backwards direction of travel Feed adjuster (1) is in the neutral position Footbrake (2) is released 1. Place coupling lever (3) in the coupled position. 2. Using the feed adjuster (1), set the direction of travel and speed. Page 16 Floor Saw FSG620...
- Page 17 According to the information from the motor manufacturer accordance with the operating instructions of the motor manufacturer. 7.1 Grease nipples Position of grease nipples Blade drive shaft: 2 items Wheel drive shaft bearing: 2 items Floor Saw FSG620 Page 17...
- Page 18 TYROLIT Hydrostress AG 7.2 Tensioning chain on travel drive ► Tensioning chain Chain Page 18 Floor Saw FSG620...
- Page 19 Feed not working Operation of the control rods impaired necessary. ► Check hydrostat and if necessary have Defective hydrostat this repaired by a TYROLIT Hydrostress engineer. ► Have the chain replaced by a TYROLIT Defective chain Hydrostress engineer. ► Check belt for wear and if necessary...
-
Page 20: Technical Data
Cooling Air cooling 9.3 Lift drive Parameter Value Drive type mechanical via spindle 9.4 Travel drive Parameter Value Drive type Hydraulic Oil grade ATF Dexron II D Cooling Air cooling by means of cooling ribs Page 20 Floor Saw FSG620... - Page 21 Value Description Battery 12-Volt, Group Size U1 DP battery part number 2500584 Length 196 mm Width 130 mm Height 165 mm Capacity 300 Amps Manufacturer's reference 53030 ETN 530 030 030 Special feature Clamping shoe Floor Saw FSG620 Page 21...
-
Page 22: Ec Declaration Of Conformity
Safety of machinery – Safety distances to avoid crushing of body parts. EN 982 Safety of machinery Safety requirements for safety systems and their components – hydraulics. EN ISO 3744 Acoustics - Determination of sound power levels of noise sources using sound pressure Page 22 Floor Saw FSG620...
