TYROLIT Hydrostress WSE2226 Operating Instructions Manual

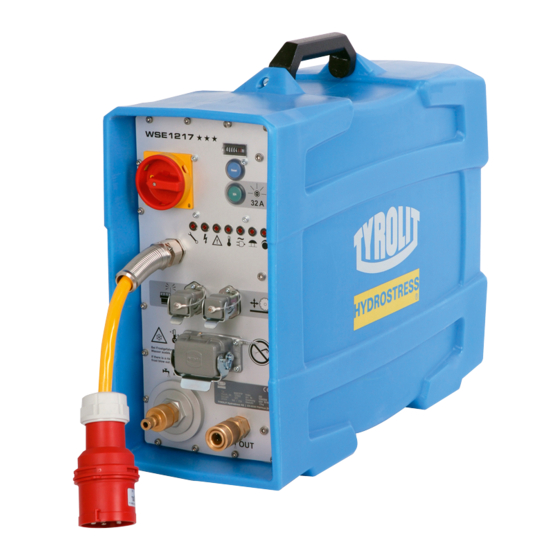

Wall saw cutting depth up to 1005 mm
Hide thumbs
Also See for WSE2226:
- Operating instructions manual (25 pages) ,
- Operating instructions manual (24 pages) ,
- Operating instructions manual (24 pages)
Related Manuals for TYROLIT Hydrostress WSE2226
Summary of Contents for TYROLIT Hydrostress WSE2226
-

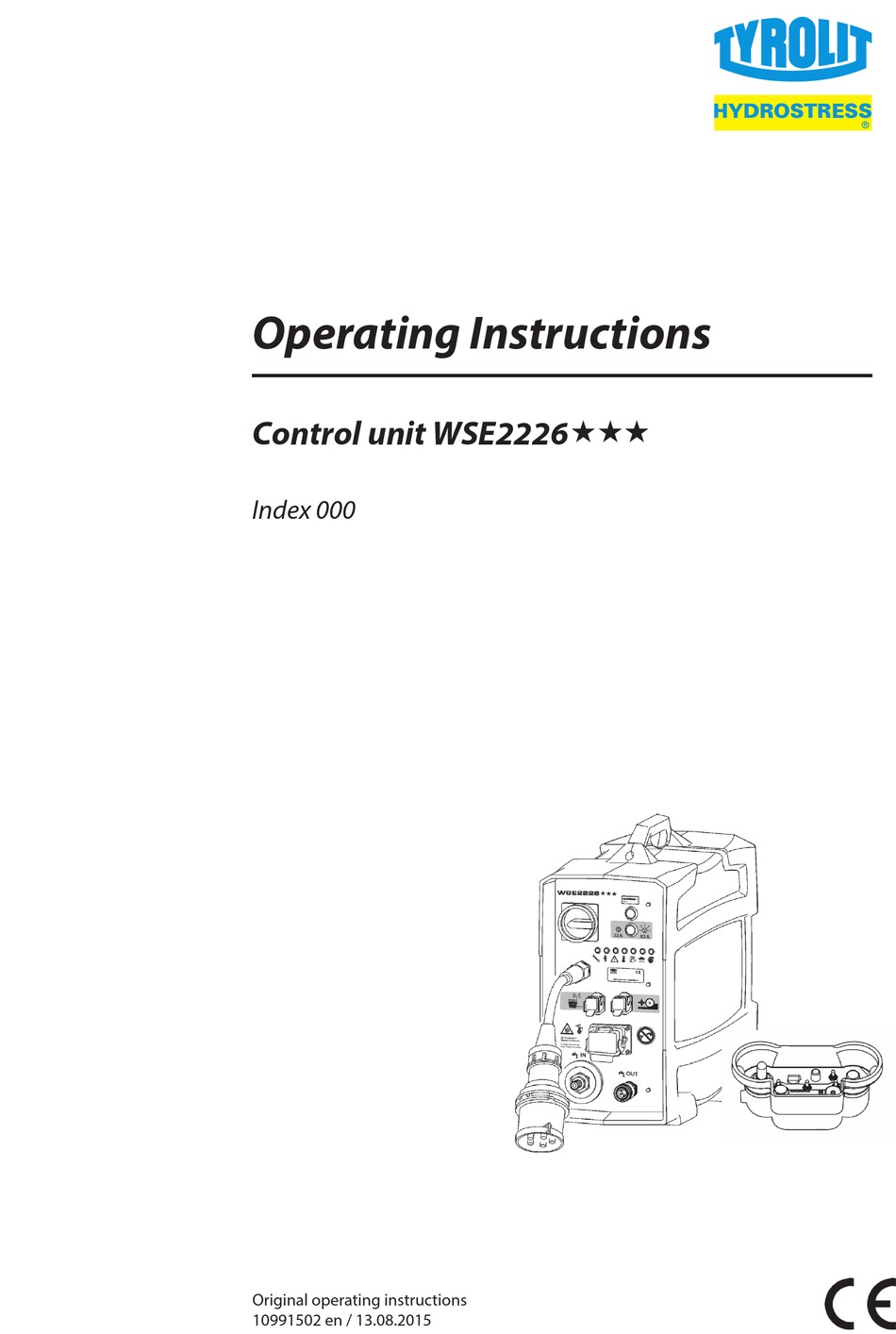

Page 1: Operating Instructions
Operating Instructions Control unit WSE2226 Index 000 Original operating instructions 10991502 en / 13.08.2015... - Page 2 Any repair work must be carried out by trained personnel only. Our after sales service is available to help ensure that your TYROLIT Hydrostress units remain in perfect working order.
-
Page 3: Action In An Emergency
X Ensure that the EMERGENCY STOP button can be reached quickly. Electric shock from live cables and connectors. X Switch off the control unit WSE2226 before connecting or disconnecting cables. X Ensure that the power supply is earthed and fitted with a residual current operated protec- tive device (FI Type B) with a maximum residual current of 30mA. - Page 4 TYROLIT Hydrostress AG Description Main components Control unit Main components Control unit 1 Operating hours counter 8 Main motor connection 2 Main switch 9 Name plate 3 Feed motor connection 10 Indicator lights 4 Remote controller connection 11 Mains system selection button...
-
Page 5: Remote Controller
The cable insert is included in the scope of supply and allows connection of the remote control- ler to the control unit WSE2226. The cable length is 10m. Cable operation makes it possi- ble to work in areas where radio operation is not allowed (e.g. hospitals). - Page 6 TYROLIT Hydrostress AG Accessories for remote controller The battery charger is exclusively for recharging the interchangeable rechargeable battery. The battery holder must not be inserted. Accessories 1 2x Interchangeable rechargeable batteries No. 10984306 2 Rechargeable battery charger No. 10984305 Rechargeable battery charger with No.
- Page 7 TYROLIT Hydrostress AG Connections Connecting remote controller and motor connections 9 The control unit is isolated from the power supply 9 Connectors/plugs are clean 9 Cables are undamaged Connecting the mains and water supply 9 The power supply is earthed and fitted with a residual current operated protective device (FI Type B;...
-
Page 8: Operation
TYROLIT Hydrostress AG Operation Overview of operating elements Controls 1 Position lock switch (Traverse feed) 8 Main motor potentiometer 2 Water On / Off 9 Diameter selector switch 3 EMERGENCY STOP 10 Feed joystick 4 Pulse switch control unit 11 Main switch Control unit... - Page 9 CAUTION The control unit WSE2226 can be damaged if it slips or overturns! X Make sure that the control unit WSE2226 stands horizontally (handle at top). 9 Control unit WSE2226 is connected to the mains and the water supply. 9 The sawing machine is connected to the control unit WSE2226.
- Page 10 TYROLIT Hydrostress AG 4.2.1 Remote control frequency change Remote control frequency change The remote control systems are equipped with a frequency generator for frequency selection. If the systems malfunction or the radio link is interrupted (another transmitter, range, empty battery), the systems immediately go into EMERGENCY OFF mode.
-
Page 11: Tool Soft Start
TYROLIT Hydrostress AG Selecting mains network The control unit WSE2226 is preset for a 63A power supply network (63A button lights up). It is possible to switch over to a 32A power supply network. The system automatically returns to the 63A settings when it is restarted. -
Page 12: Power Control
TYROLIT Hydrostress AG Power control The main motor and the feed motor power are controlled via the potentiometers. Power control Feed motor potentiometer (6) Main motor potentiometer (8) Adjusting the feed The feed movements are selected with the joystick. Adjusting the feed During the cutting process the feed speed is automatically assisted by a feed facility. - Page 13 X Turn the start switch (5) on the remote controller to the 0 position. X Switch off the control unit WSE2226 using the main switch (11). Only stop the wall saw WSE2226 using the EMERGENCY STOP function in an emergency. CAUTION Frost damage to control unit WSE2226!
- Page 14 X Blow out the water from all the lines (blow out pump). X Disconnect electric cable. X Clean the control unit WSE2226, the remote controller and the cable with a damp cloth. Cleaning using high pressure cleaning equipment is not permitted.
-
Page 15: Reacting To Displays
TYROLIT Hydrostress AG Reacting to displays Symbols on the control unit / remote controller Symbols on the control unit Symbols on the remote controller 1 Service 8 Radio and battery remote control 2 Control unit external fault 9 Cooling water... - Page 16 Symbol Response Possible cause Action Lights up red After the first 100 operating Carried out only by TYROLIT Hydrostress AG hours, then after every 200 op- or an authorised representative erating hours. Lights up red Fault: The control unit will not start.
- Page 17 TYROLIT Hydrostress AG Power and error displays on the remote controller Symbol Response Possible cause Action Flashes red Rechargeable battery voltage X Recharge rechargeable battery. too low Flashes rapidly No radio connection X Switch on the control unit. green The EMERGENCY STOP has been X Defective receiver.
-
Page 18: Servicing And Maintenance
Cleaning using high pressure cleaning equipment is not permitted. Cleaning using high pressure cleaning equipment can damage the control unit and the remote controller. Products containing cleaning agent can damage parts of the control unit WSE2226, the radio remote controller and the cable. Clean water filter... - Page 19 X Make sure that the control unit voltage and frequency Defective main motor match the mains supply specifications. the control unit X Contact TYROLIT Hydrostress AG customer service. is running Over or under voltage X Check the power supply. Refer to fault indicator.
- Page 20 X Make sure that the water pressure is at least 2 bar. Water filter is blocked X Remove filter and clean X Contact TYROLIT Hydrostress AG customer service. Switch for the radio remote controller X Contact TYROLIT Hydrostress AG customer service.
-
Page 21: Technical Data
Dimensions Technical data Parameter Value Type Frequency converter Weight 26 kg Control unit WSE2226 incl. remote controller Remote controller separate 2 kg Protection class IP 65 Connection values 380 to 420 VAC / 50 Hz / 60 Hz Type Frequency converter Max. -
Page 22: Eu Declaration Of Conformity
TYROLIT Hydrostress AG EU Declaration of Conformity Description Control unit Type designation WSE2226 Year of construction 2011 We declare under our sole responsibility that this product complies with the following direc- tives and standards: Applied directives 2006/42/EU of 17th May 2006... -
Page 23: Spare Parts
TYROLIT Hydrostress AG Spare parts Page 23...
