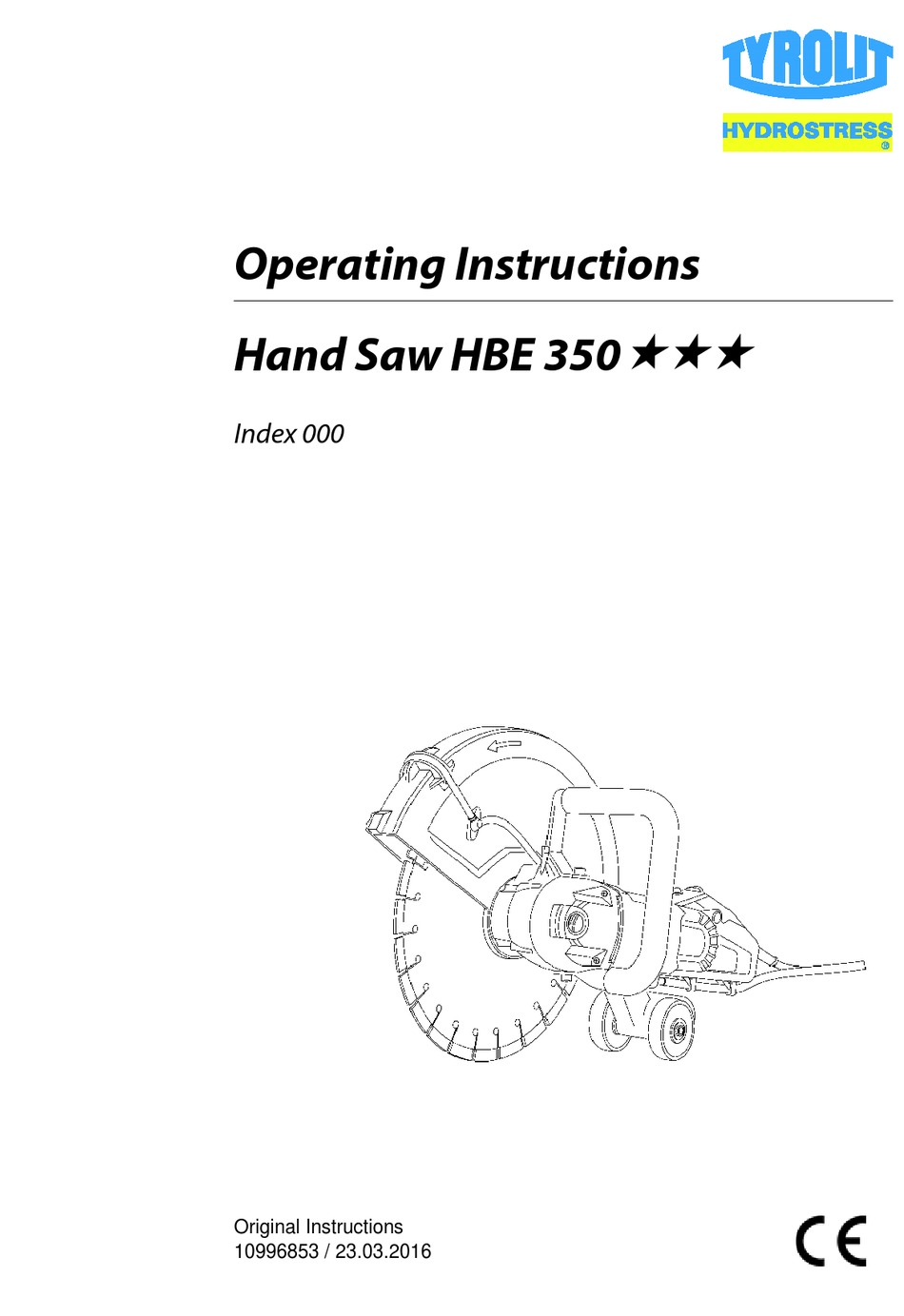

Operating Instructions Hand Saw HBE 350 Index 000 Original Instructions 10996853 / 23.03.2016... - Page 2 SPECIFICATIONS Power Input North America: 15 A, Other Regions: 110-120V:1700W, 220-240V: 2800W Voltage North America: 115V~60Hz, Other Regions: See Machine Nameplate Rated speed/ min n=4500 min Blade Diameter 355mm (14") Arbor 25.4 (1 in.) Max. Cutting Depth 125mm (5") Weight 7.9kg (17 Lbs) (8.3kg (18 Lbs) with guide rollers) Release Button Water Coupling...
-
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: Cut-Off Machine Safety Warnings
………..Rated speed …..revolutions or reciprocation per minute ..Wear safety shoes ..Protective earth ..Wear gloves ....Warning of general danger ..Wear a breathing mask ..Wear a helmet, goggles and hearing protection ..Work Clothes ..Read the instructions ..Before working on the equipment unplug mains ..DANGER! Keep hands away from cutting area and the blade. - Page 6 power tool or wheel is dropped, inspect for damage or install an undamaged wheel. After inspecting and installing the wheel, position yourself and bystanders away from the plane of the rotating wheel and run the power tool at maximum no load speed for one minute. Damaged wheels will normally break apart during this test time.
- Page 7 Never place your hand near the rotating accessory. Accessory may kickback over your hand. Do not position your body in line with the rotating wheel. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. Use special care when working corners, sharp edges etc.
-
Page 8: Grounding Instructions
GROUNDING INSTRUCTIONS All grounded, cord-connected tools: In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. -
Page 9: Electrical Connection
ELECTRICAL CONNECTION The network voltage must conform to the voltage indicated on the tool name plate. Under no circumstances should the tool be used when the power supply cable is damaged. A damaged cable must be replaced immediately by an authorized Customer Service Center. Do not try to repair the damaged cable yourself. -
Page 10: Diamond Blades
DIAMOND BLADES Allowed Types Of Blades This machine may use diamond blades only. NOTE: Abrasive wheels may not be used on this machine. • Only use either segmented or continuous rim diamond blades. • If the diamond blades are segmented, the maximum allowable peripheral gap between segments is 10mm and must be with a negative rake angle. -
Page 11: Sharpening A Glazed Blade
(the diamonds not exposed) and the blade becomes dull (diamond segments polish smooth). This is called glazing and luckily the blade can be de-glazed (sharpened). If the blade seems to refuse to cut anymore, you know that it is glazed. ”Sharpening a Glazed Blade”... -
Page 12: Adjusting The Blade Guard
Inspect the blade before use. It must not be cracked, warped or damaged in any way that would cause a hazard in operation. Loose diamond segments can be ejected at high speed, causing possible injury. Always check that the diamond segments are not under cut. If the diamond segments are thinner or nearly thinner than the blade core, the kerf will be too tight fitting and could easily lead to kickback. -
Page 13: Guide Roller Assembly
WARNING: Always use the PRCD (GFCI) when operating with water WARNING: Never allow water to enter the motor. It could lead to an electric shock. WARNING: Check all connections of the water feed system to ensure there are no leaks. Inspect hoses and other critical parts which Water Feed Valve could deteriorate. -
Page 14: Operation
the motor. Always run the machine at no load for a few minutes to return to a normal operating temperature before continuing. CAUTION: The motor will be damaged if it is repeatedly overloaded or overheated. Always cool the motor by running at no load for a few minutes whenever it stops from either overheat or overload. OPERATION How to hold the machine •... -
Page 15: Cutting Technique
Cutting Technique • Holding the machine with both hands to resist the start up torque, press the release button and then squeeze the trigger switch. • Allow the machine to reach full speed before contacting the workpiece. • Adjust the water flow as needed by turning the water feed valve. •... -
Page 16: Maintenance And Cleaning
pin can insert fully, then turn 90 degrees to lock in place. Ensure that it pivots freely. finally, attach the vacuum hose. Removal is the opposite of mounting. Note: Always ensure the vacuum cleaner's dust bag is not too full. An overfilled dust bag will have reduced dust collection efficiency which could result in poor dust control. - Page 17 Temperature Sensor CARBON BRUSH MOTOR CARBON ELECTRONICS BRUSH UNIT SWITCH...
- Page 18 Optional 02 01 51 36 NO.01~92 A1~A12 V2.9...
-
Page 19: Parts List
PARTS LIST TYROLIT No. Name Parts Name Q'TY 10997102 Kabel 230V / PRCD/Stecker Power sup. cord PRCD/plug 10997148 Kabel 110V Power supply cord 110V 10992548 Stecker CEE 7/7 16A Plug CEE 7/7 16A 10994365 Stecker Typ CEE 32/3 4h Plug type CEE 32/3 4h 10993795 PRCD-Schutzs.230V Inline PRCD 230V... - Page 20 PARTS LIST TYROLIT No. Name Parts Name Q'TY 10997160 Klemmscheibe Star washer 10993791 Erdungskabel Earth wire 10997161 Anschlussblock Connector block 10997092 Getriebegehäuse Gear case 971627 Federring M5 DIN 127A Spring washer M5 DIN 127A 10997154 Schraube 5x35 Screw 5x35 10997097 Spindelarretierknopf Spindle lock button 10997111...
- Page 21 PARTS LIST TYROLIT No. Name Parts Name Q'TY 10997146 Wasseranschl.nippel Water quick rel. conn. 10997108 Halteblech Retaining plate 10996846 Senkkopfschraube M5x8 Countersunk screw M5x8 10997115 Innenflansch 1" Inner flange 1" 10997116 Innenflansch 7/8" Inner flange 7/8" 10997114 Aussenflansch Outer flange 10997159 Scheibe Ø10xØ38x4 Flat washer Ø10xØ38x4...
-
Page 22: Ce Declaration Of Conformity
EN 60745-1:2009 + A11:2010 EN 60745-2-22:2011 EN 55014-1:2006 + A1:2009 + A2:2011 EN 55014-2:1997 + A1:2001 + A2:2008 EN 61000-3-2:2006 + A1:2009 + A2:2009 EN 61000-3-3:2013 Manufacturer: TYROLIT Hydrostress AG Witzbergstrasse 18 CH-8330 Pfäffikon Switzerland Representative: Pascal Schmid Head of R&D...
